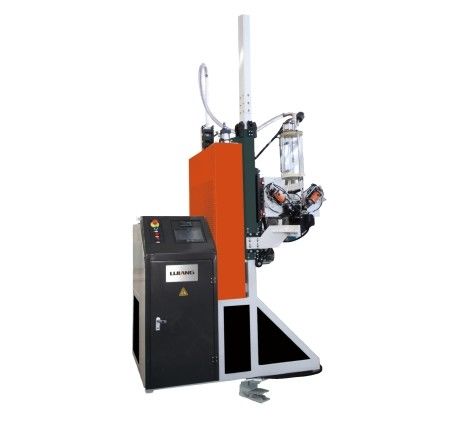

Name: Desiccant Filling Machine LJGZ2020
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJGZ2020
Availability: InStock

Home > Products > Desiccant Filling Machine >

Desiccant Filling Machine LJGZ2020

Place of Origin:

China

Brand Name:

Lijiang glass

Certification:

Model Number:

LJGZ2020

Request A Quote

Product Details

Product Name:

Desiccant Filling Machine

Filling Aluminum Frame’s Maximum Size:

2000mm*2000mm

Filling Aluminum Frame’s Minimal Size:

300mm*250mm

Article Aluminum Specifications:

5.5-24mm

Air Source:

≥0.65MPa

Power Supply And Power Consumption:

AC220V 50Hz 1.8KW

Molecular Sieve Diameter Needed:

0.5-0.9mm

Dimension:

1300mm*1100mm*3650mm

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Container

Delivery Time

45 days

Payment Terms

L/C, T/T

Supply Ability

20 sets/month

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

Main feature

The filling height can be adjusted according to the size of spacer frame
Filling time can be adjusted
Desiccant auto loading and replenishment
Auto drilling, filling and sealing function
Germany Siemens PLC control system
Touching screen interface, simple and visible
Adding glue way is safe and easy
Machine can fill the arc frame.(optional function)
Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
Big bucket desiccant 200L,save desiccant refill time ,improve the work efficiency

Technical Data

Filling aluminum frame’s maximum size	2000mm*2000mm
Filling aluminum frame’s minimal size	300mm*250mm
Article aluminum specifications	5.5-24mm
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1.8KW
Molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm1100mm3650mm

Electrical parameters

Name	Brand
PLC	German SIEMENS
Low voltage electrical apparatus	German SIEMENS
sensor	Korea AUTONICS
guide	Taiwan TBI
triplet	TAIWAN AIRTAC
Solenoid valve	TAIWAN AIRTAC
Gas driller	Taiwan BOA
Switch power	Taiwan TEND
