Manual Filling Machine For IGU Facade Glass Desiccant Filling Mahcine Insulating Glass Processing

IGU facade glass desiccant filling mahcine use for insulating glass processing

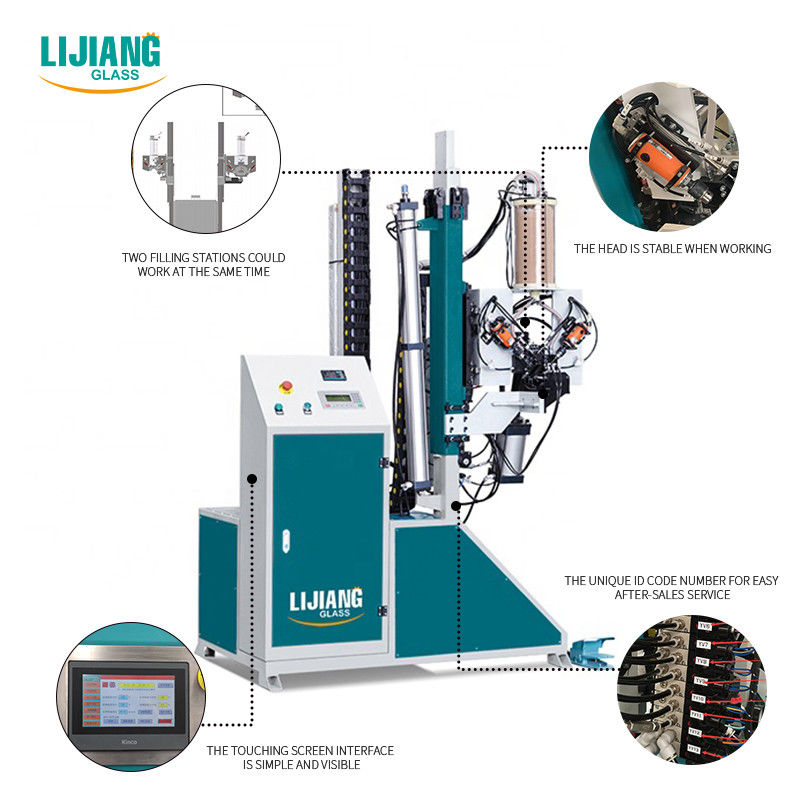

Desiccant Filling Machine LJGZ 2020

Main feature

• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

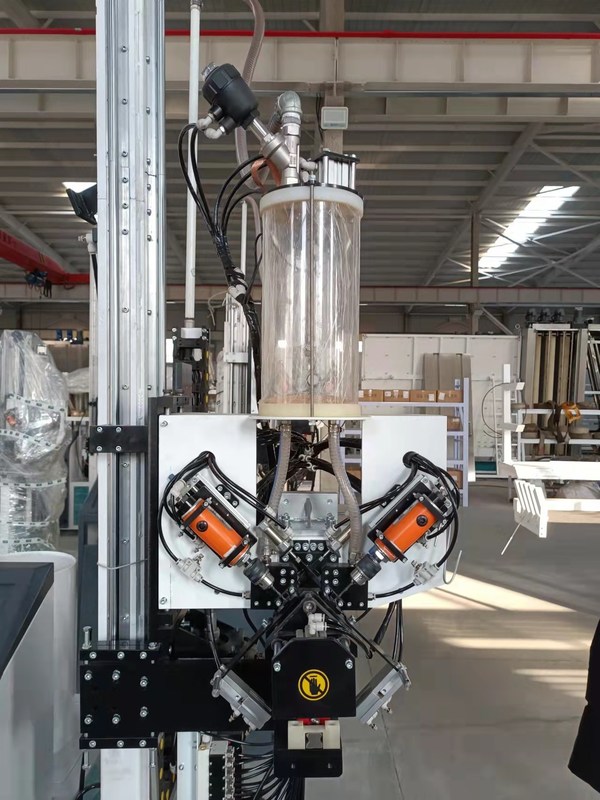

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Fill large particle molecular sieve

Technical data

Aluminum frame transfer machine LJSKJ02

Main feature

• Spacer frame transport

• Easy operating, simple and flexible

Technical data

Vertical Insulating Glass Sealing Robot LJTJ2540

Main Features:

• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• Shape glass with optional edges, step glass, triple glass (Optional)

• One set of booster pump controls two groups of sealants (Optional)

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

• With code scanning function (Optional)

Technical data

Electrical parameters

Automatic Vertical Insulating Glass Processing Line

LJBZ3370

PERFORMANCE

• Germany Siemens PLC control system, touch screen interface

• Automatic identification of coated and Low-E glass

• 3 pairs of soft brushes can wash online and offline Low-E glass

• The washing machine adopts SS material and waterproof device

• Air heating system

• Air Fan automatic start and stop setting

• Noise reduction system

• Online display of washing speed

• Intelligent intermittent work,saving energy

• Adjustable pressing board to keep the plate pressing surface straight

• Automatic Gas filing can set gas value and display the process of filling online with high gas concentration

• Connection mode of aviation plug

• Applicable to produce triple lG / shaped IG /step glass

Details introduce of the LJBZ3370

• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

• 02 washing machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• 03 discharge section

• Storage glass

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section

Main feature:

• Ultra-long (3300mm*7000mm) insulating glass can be compressed

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

• 07 discharge section

• Storage glass

• Can be connected to sealing machine

Technical data

Electrical parameters

Vertical Insulating Glass Sealing Robot LJTJ2540

 Application

l Adopt 8 servo motors

l Adopt Japan servo control system with stable performance

l Automatically measure glass size, glue depth and glue speed with linear adjustment

l Adopt timing belt to keep smooth convey with accurate position

l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

l The glass corners are full without air bubbles, smooth surface, no need to

l Full automatic and high-efficiency machine

l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

l Automatically repair glass corners with beautiful surface

l Smooth convey without scratch and pollution

lSingle-function parts are equipped with manual functions, easy adjustment

Ø Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

• Dyad Body Device

The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.

Technical data

 Main components list
