PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

PLC Molecular Sieve Desiccant Filling Machine

Automatic Molecular Sieve Desiccant Filler

AC220V Molecular Sieve Filling Machine

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

CE

Model Number:

LJGZ2020

Contact Us
Request A Quote
PLC Automatic Molecular Sieve Filling Machine Desiccant Filler
Product Details
Product Name:
Desiccant Filling Machine
Dimension(L*W*H):
1400mm*1200mm*3600mm
Max Glass Size:
2500*2500mm
Power Supply::
220V 50HZ 1KW
Air Source:
≥0.65MPa
Power Supply And Power Consumption:
AC220V 50Hz 1.8Kw
Highlight:

PLC Molecular Sieve Desiccant Filling Machine

,

Automatic Molecular Sieve Desiccant Filler

,

AC220V Molecular Sieve Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Container/wooden box
Delivery Time
45 days
Payment Terms
L/C, T/T
Supply Ability
50sets/month
RELATED PRODUCTS
Good price PLC Automatic Molecular Sieve Filling Machine Desiccant Filler online

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price
Good price Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw online

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price
Good price Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing online Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price
Good price Molecular Sieve Automatic Desiccant Filler For Glass Processing online

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price
CONTACT US
Contact Now
Product Description

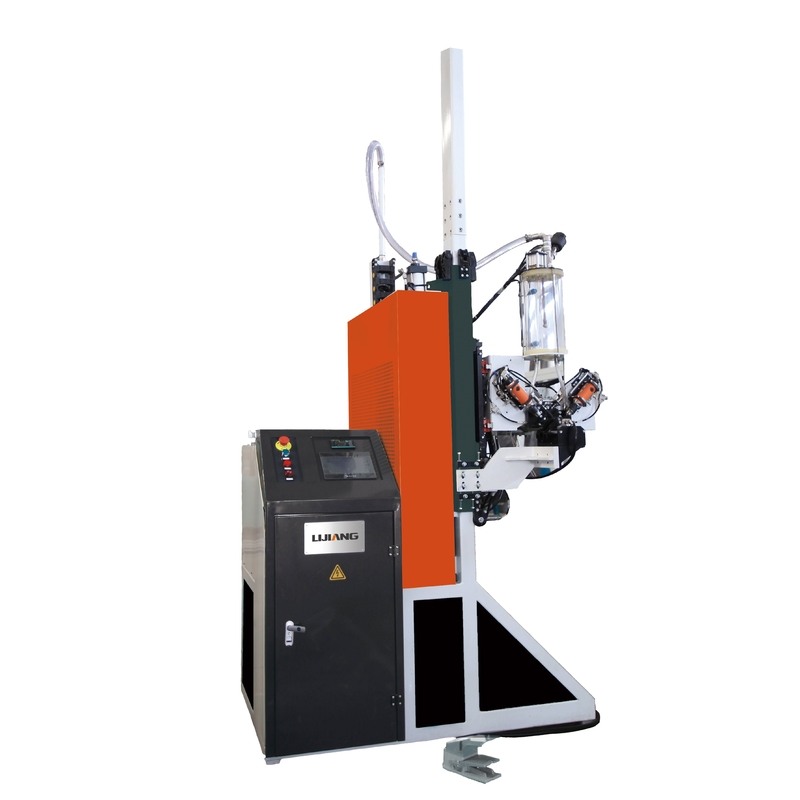

Automatic Molecular Sieve Filling Machine Desiccant Filler

Automatic desiccant filling machine can punch holes in the hollow glass interval frame, fill the desiccant, and seal the butyl glue in one time

Main feature of Automatic Desiccant Filling Machine

• Adopt Siemens PLC control system
• Molecular sieve can be 0.5-0.9mm or 1.0-1.5mm sizes
• Touch screen interface, simple and visible
• Desiccant Filling machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
•  Fill large particle molecular sieve
PLC Automatic Molecular Sieve Filling Machine Desiccant Filler 0

Main technical parameter of Desiccant Filling Machine



Name Brand Name Brand
PLC German SIEMENS Triplet TAIWAN AIRTAC
Lowvoltage electrical apparatus German SIEMENS Solenoid valve TAIWAN AIRTAC
Sensor Korea AUTONICS Gas driller Taiwan BOA
Guide Taiwan TBI Switch power Taiwan TEND





Filling aluminum frame’s maximum size 2000mm*2000mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-26.5.mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1400mm*1200mm*3600mm
