Product Details:
|
| Certification: | CE | Production Name: | Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6A-27A | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Optional: | Big Barrel |
| Dimension: | 1300*1100*3600mm | Application: | Insulating Glass Making |
| High Light: | Auto Desiccant Filling Machine Molecular Sieve,Glass Processing Desiccant Filler,Auto Desiccant Filler |
||

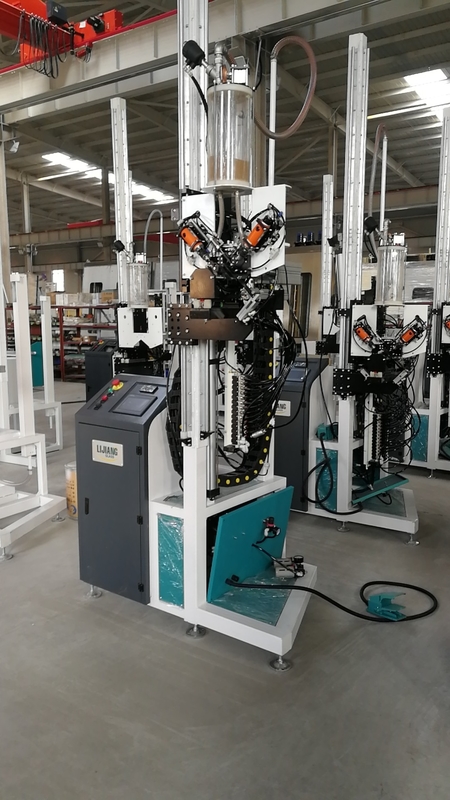

Automatic molecular sieve filling machine
Overview of automatic molecular sieve filling machine
Automatic molecular sieve filling machine can automatically realize the spacing frame automatic drilling, desiccant, sealant filling and other actions.
Automatic molecular sieve filling machine control system using Germany Siemens, filling speed, stable operation, to ensure the effective sealing performance of sealant.
Automatic molecular sieve filling machine improves the quality of insulating glass and is an essential equipment in the production process of insulating glass.
Automatic molecular sieve desiccant filling machine details
1. The height of automatic molecular sieve filling machine can be adjusted according to the size of the spacer frame
2.Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
3.Desiccant filling machine have Protection device for machine head.
4.Molecular sieve filling machine can auto drilling, filling and sealing.
5.Molecular sieve can automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
7.All spare parts have ID Number for offering the convenience in after sales service.
8.Filling time can be adjusted according to the size of spacer frame in the touch screen.Touching screen interface, simple and visible;F
9. Also has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
10.Easy and safe for adding glue.
Technical parameter of automatic molecular filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products
Manual molecular sieve filling machine
Manual molecular sieve filling machine is used to fill molecular sieve into the interval frame to improve the quality of hollow glass
The main characteristics of manual molecular sieve filling machine
1. Can manual molecular sieve filling function effectively fill desiccant and keep dry
2. Manually fill the desiccant into the space frame
3. Desiccant can be recycled
4. Manual molecular sieve filling machine is easy to operate, simple and flexible
Technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
