6A 1.5mm Molecular Sieve Desiccant Filling Machine

6A 1.5mm Molecular Sieve Desiccant Filling Machine
6A 1.5mm Molecular Sieve Desiccant Filling Machine 6A 1.5mm Molecular Sieve Desiccant Filling Machine

Large Image :  6A 1.5mm Molecular Sieve Desiccant Filling Machine

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD 6000 - 8000 per set
Packaging Details: Wooden box
Delivery Time: 5 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

6A 1.5mm Molecular Sieve Desiccant Filling Machine

Description
Brand Name: Automatic Desiccant Filling Machine Color: Blue Color
Application: Making Insulating Glass Units Using: Filling Molecular Sieve Into Spacer
Molecular Sieve: 0.5 - 0.9 / 1.0 - 1.5mm The Spacer: Rigid Spacer Bars
PLC: Siemens Max Radius Size: 120mm
High Light:

6A Desiccant Filling Machine

,

1.5mm Desiccant Filling Machine

Automatic Molecular Sieve With 0.5 To 0.9 Diameter Desiccant Filling Machine

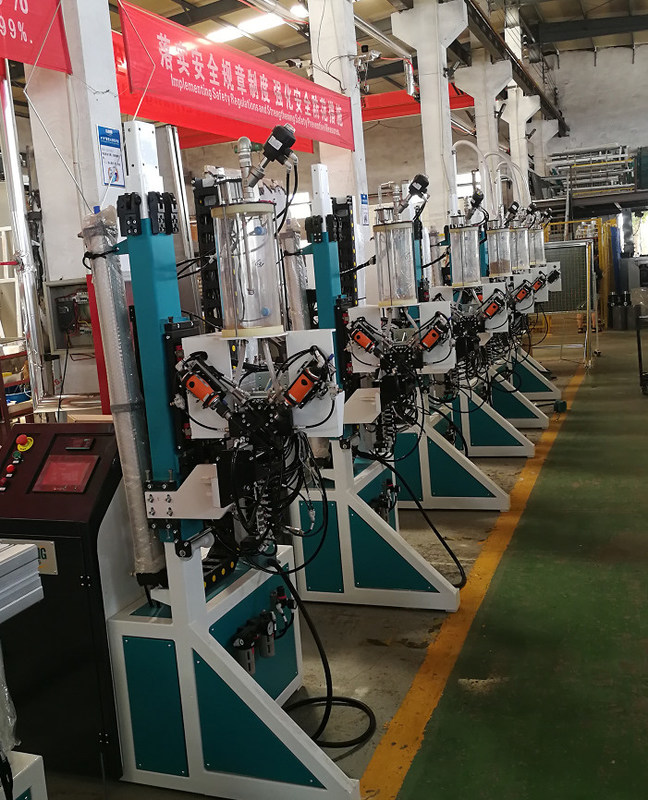

The desiccant filling machine is an auxiliary machine for making insulating glass units, the following is the main features



• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed



• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency (Optional)

• Protection device for machine head (Optional)

• Filling arc frame (Optional)

6A 1.5mm Molecular Sieve Desiccant Filling Machine 06A 1.5mm Molecular Sieve Desiccant Filling Machine 1

6A 1.5mm Molecular Sieve Desiccant Filling Machine 2





Max. frame size 2000mm*2000mm (2500mm*2500mm)
Min. frame size 300mm*250mm
Aluminum specifications 6A- 27A
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1KW
Molecular sieve diameter needed 0.5-0.9 mm or 1.0 – 1.5mm
Dimension 1100mm*1100mm*3600mm



6A 1.5mm Molecular Sieve Desiccant Filling Machine 3

6A 1.5mm Molecular Sieve Desiccant Filling Machine 4    6A 1.5mm Molecular Sieve Desiccant Filling Machine 5

Chemical formula: 2/3K2O*1/3Na2O*Al2O3*2SiO2*9/2H2O

Silicon-aluminum ratio: SiO2/Al2O3 ≈ 2

Effective aperture: about 3

Application: mainly used for drying of petroleum cracking gas, olefine, refinery gas and oil field gas, is chemical, medical medicine, hollow glass and other industrial desiccants.

Technical indicators:



Index Unit Spherical shape
Diameter Mesh 8*12 4*8
Static water adsorption ≥ %wt 20 20
Adsorption of ethylene ≥ mg/g 3.0 3.0
Stacking density ≥ g/ml 0.68 0.68
Compression strength ≥ N 30 75
Wear rate ≤ %wt 0.1 0.1
Residual water content ≤ %wt 1.5 1.5



Removal of water: the temperature, pressure and water content of the visual gas. In general, the drying gas at the temperature of 200-350 DEG C is under the pressure of 0.3 0.5Kg/ cm2, the temperature of the outlet is increased to 110-180 DEG C through the molecular sieve bed layer for 3-4 hours, and the cooling is carried out.



Take off the organic matter: replace the organic matter with water vapor, and then remove the water.



Storage: room temperature; relative humidity is not more than 90%; it is not suitable to be directly exposed to air; water, acid and alkali shall be avoided.



The Desiccat Filling Machine can use 0.5 - 0.9mm or 1.0 - 1.5mm molecular sieve material, it is according to customer's needs. The molecular sieve can be in small bags, also can be big barrel. In our desiccant filling machine, we have two types, one is with common barrel, another one is with big barrel to install a big barrel for desiccant material.



6A 1.5mm Molecular Sieve Desiccant Filling Machine 6

6A 1.5mm Molecular Sieve Desiccant Filling Machine 7

6A 1.5mm Molecular Sieve Desiccant Filling Machine 8



JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Address: Block B 1307, Green Square, Huaiyin District, Jinan, China

Tell : 0086 0531-85960498 Fax : 0086 0531-87562846

Salesperson: Hermione (+86 18353163989 / +86 13001733235)

Email: sales01@lijiang-glass.com

Website : www.lijiang-glass.com / www.insulatingglassproductionline.com



RFQ :

Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
