Product Details:
|
Name: | Molecular Sieve | Size: | Diameter 0.3cm |
---|---|---|---|
Characteristics: | High Strength,High Adsorption Capacity,Particle Uniformity | Silicon-aluminum Ratio: | SiO2/Al2O3 ≈ 2 |
Effective Aperture: | About 3 | Chemical Formula: | 2/3K2O*1/3Na2O*Al2O3*2SiO2*9/2H2O |
High Light: | 0.3cm Molecular Sieve For Insulating Glass,Diameter 0.3cm Molecular Sieve |
Chemical formula: 2/3K2O*1/3Na2O*Al2O3*2SiO2*9/2H2O
Silicon-aluminum ratio: SiO2/Al2O3 ≈ 2
Effective aperture: about 3
Application: mainly used for drying of petroleum cracking gas, olefine, refinery gas and oil field gas, is chemical, medical medicine, hollow glass and other industrial desiccants.
Technical indicators:
Index | Unit | Spherical shape | |
Diameter | Mesh | 8*12 | 4*8 |
Static water adsorption | ≥ %wt | 20 | 20 |
Adsorption of ethylene | ≥ mg/g | 3.0 | 3.0 |
Stacking density | ≥ g/ml | 0.68 | 0.68 |
Compression strength | ≥ N | 30 | 75 |
Wear rate | ≤ %wt | 0.1 | 0.1 |
Residual water content | ≤ %wt | 1.5 | 1.5 |
Removal of water: the temperature, pressure and water content of the visual gas. In general, the drying gas at the temperature of 200-350 DEG C is under the pressure of 0.3 0.5Kg/ cm2, the temperature of the outlet is increased to 110-180 DEG C through the molecular sieve bed layer for 3-4 hours, and the cooling is carried out.
Take off the organic matter: replace the organic matter with water vapor, and then remove the water.
Storage: room temperature; relative humidity is not more than 90%; it is not suitable to be directly exposed to air; water, acid and alkali shall be avoided.
Introduction: 5A molecular sieve can adsorb any molecule smaller than the pore size, and is usually called calcium molecular sieve. In addition to the functions of 3a and 4a molecular sieves, it can also adsorb C3-C4 normal alkanes, ethyl chloride, ethyl bromide, butanol, etc., and can be used for the separation of normal iso-hydrocarbons, pressure swing adsorption separation and co-adsorption . Water and carbon dioxide.
Process flow:
Washing→Filterpressing→Crushing→Forming→Health maintenance→Drying→Activation
The effective pore size of the 5A molecular sieve is 5 angstroms (0.5 nm).
It will adsorb molecules with a dynamic diameter of fewer than 5 angstroms and exclude those larger molecules.
It has high selective adsorption and fast adsorption speed.
typical application:
a) Various sizes of O2, H2, CO2, and other gas PSA equipment.
b) Separate normal paraffin and isoparaffins.
c) Purify the air, dehydrate and remove carbon dioxide.
d) Natural gas drying, dehydration, and desulfurization.
Features: high strength, high adsorption capacity, uniform particles
Storage: Room temperature; relative humidity not greater than 90%; should not be directly exposed to the air; avoid water, acid, and alkali.
regeneration:
1. Dehumidification: depends on the temperature, pressure, and water content of the gas. Usually, the dry gas at 200-350°C passes through the molecular sieve bed at a pressure of 0.3-0.5kg/cm2 for 3-4 hours, and the outlet temperature is raised to 110-180°C and cooled.
2. Removal of organic matter: replace the organic matter with water vapor, and then remove the water.

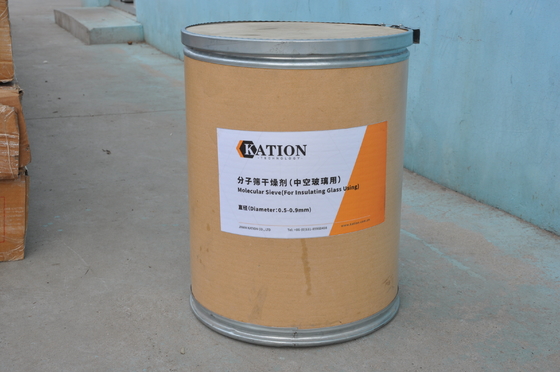

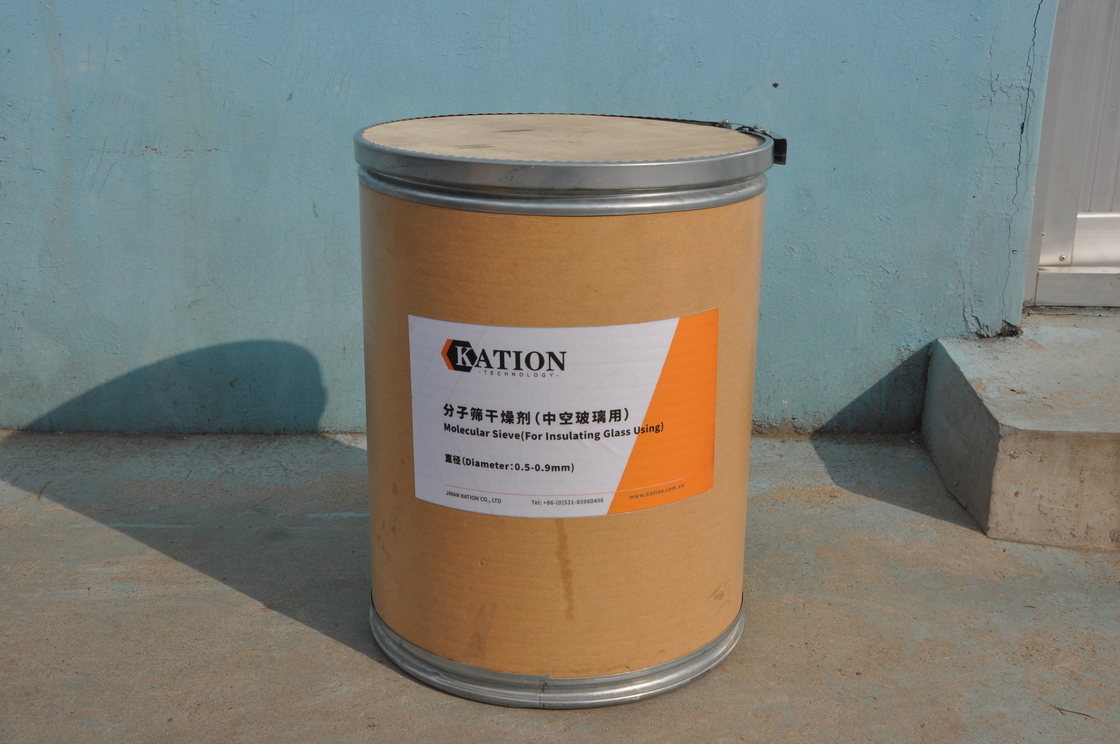

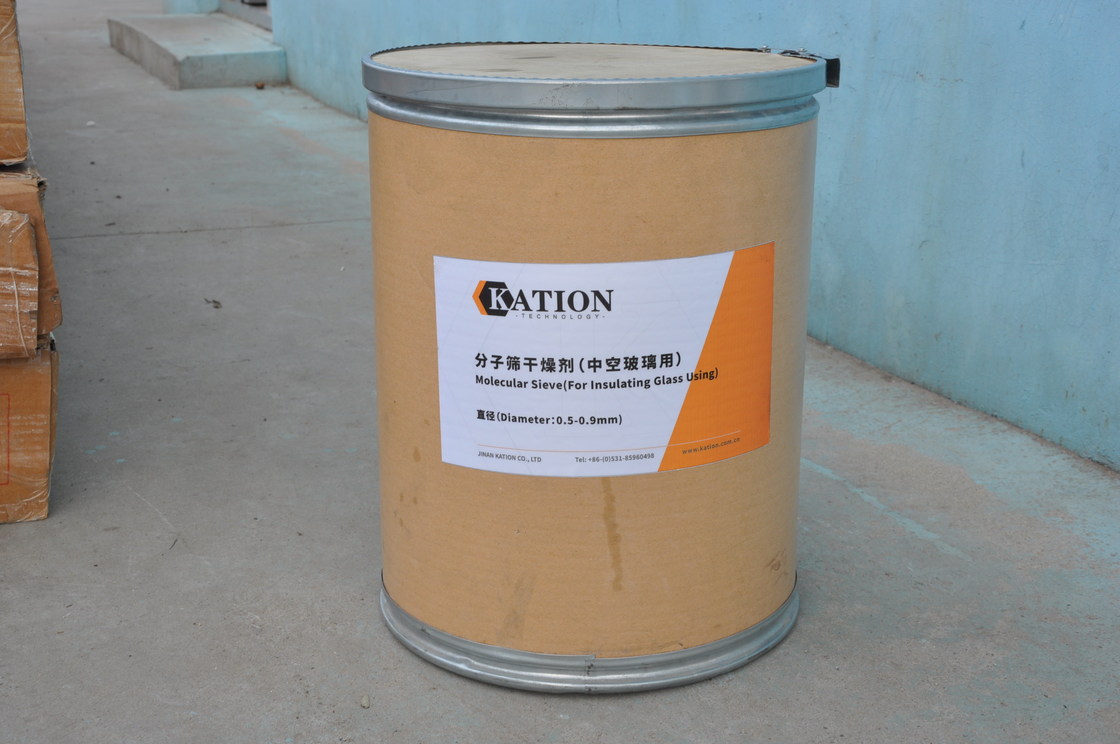

Packaging Details
Paper bag, super sack, steel drum with a wooden pallet for zeolite 3a
Port: Qingdao,Tianjin, Shanghai, etc.
Lead Time:7-10 days after receiving your deposit or your workable LC
