Product Details:
|
| Machine Name: | Automatic Desiccant Filling Machine | Max. Frame Size: | 2000mm * 2000mm |
|---|---|---|---|
| Min.. Frame Size: | 300mm*250mm | Aluminum Specification: | 5.5 - 26.5 Mm |
| Power: | 1 Kw | Molecular Sieve: | 0.9 - 1.5 Mm (Optional) |
| Filing Heads: | Double Filling Heads | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | ||
| High Light: | Automatic Molecular Sieve Filling Machine,Insulating Glass Molecular Sieve Filling Machine,Insulating Glass Molecular Sieve Filler |
||

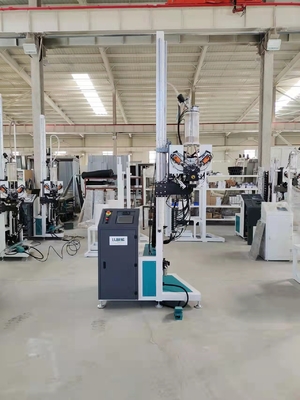

Automatic Molecular Sieve Filling Machine for Insulating glass processing Industry
Main feature of Automatic Desiccant Filling Machine:
• Desiccant filling machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve
Double filling heads for filling two different spacer frames
Introduce of Automatic Desiccant Filling Machine
Automatic molecular sieve filling machine is one of the auxiliary machine for making insulated glass. The old type of desiccant filling machine has one filling head. However, the new desiccant filling machine can fill the spacer frame with two heads, which can two spacer different spacer frame together.
Details of Automatic Desiccant filling machine
1. Machine height can be adjusted according to the size of spacer frame
2. Electrical component are all Germany Brand-Siemens.
3. Protection device for machine head.
4. Auto drilling, filling and sealing function
5. Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6. All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Technical data of Automatic Desiccant Filling Machine
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
Spares of the Automatic desiccant filler
PLC: Germany Brand Siemens
Low voltage electrical apparatus: Germany Brand Siemens
Sensor:Korea Brand Autonics
Guide:Taiwan Brand TBI
Triplet:Taiwan Brand Airtac
Solenoid valve:Taiwan Brand Airtac
Gas driller:Taiwan Brand
Switch power:Taiwan Brand Tend
Related Product of Insulating Glass processing machine
Molecular sieve filling machine LJFGJ 03
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
Main feature
