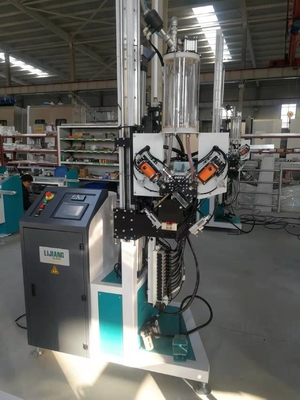

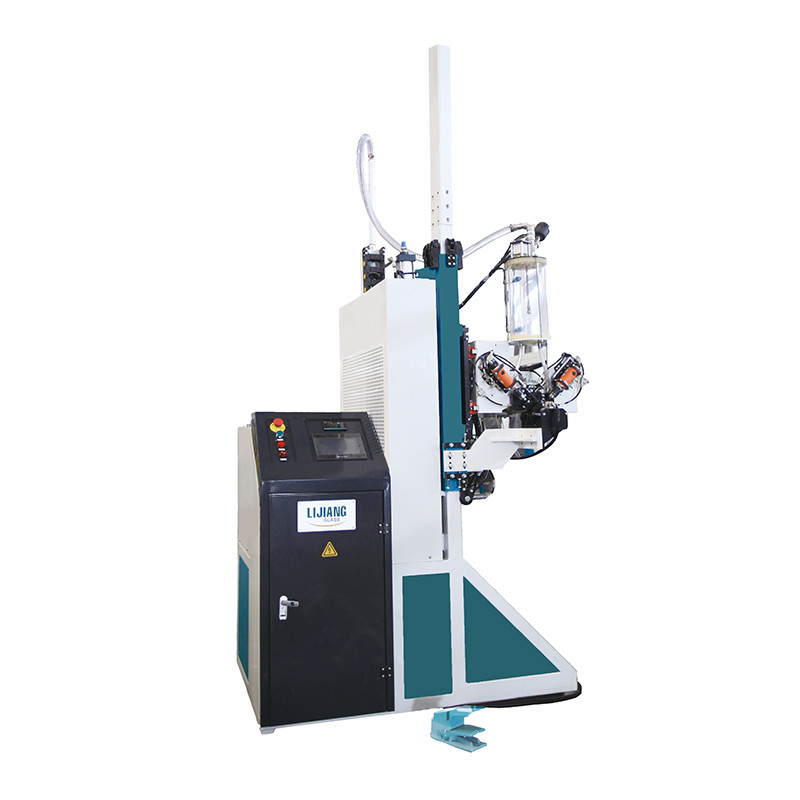

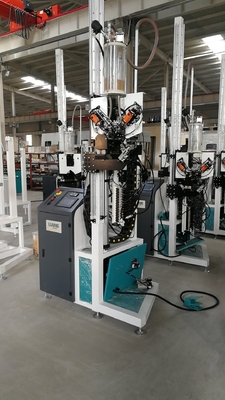

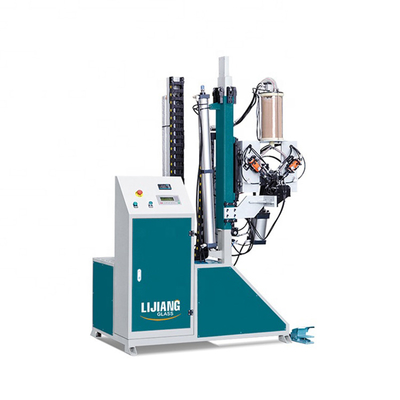

Insulating Glass Desiccant Filler Molecular Sieve Automatic Loading

Automatic Insulating Glass Desiccant Filler Molecular Sieve Dryer Machine For Insulating Glass

Automatic drilling filling sealing​ Machine

PERFORMANCE

• German Siemens PLC control system with stable performance

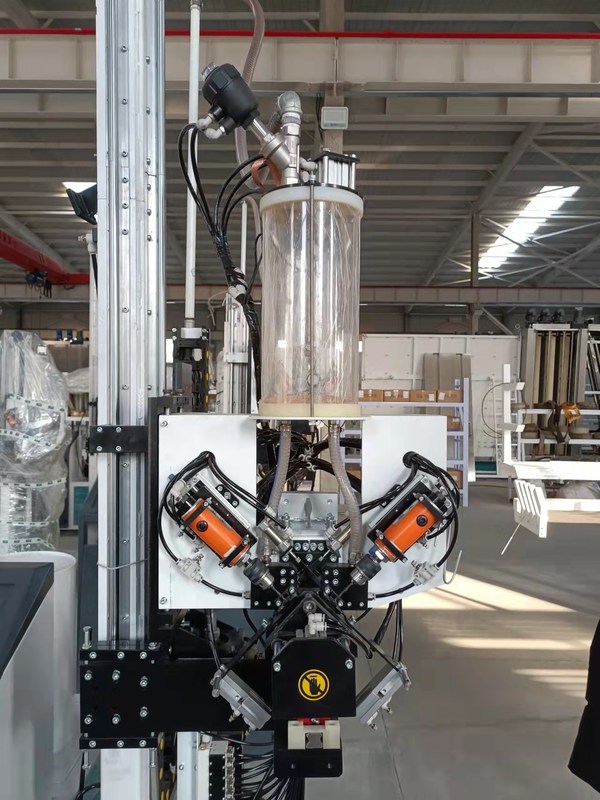

• Automatic piercing, filling and sealing

• The height of the machine can be adjusted according to the size of the partition

• Automatic loading and replenishment of molecular sieves

• Advanced feeding device designed according to the principle of airflow

• All racks are treated with an industrial spray

• Core components are imported well-known brands

LJGZ2020A

• Using big plastic barrel, save feeding time and improve efficiency

• Protection device for machine head

• Filling shaped frame

• 1.0-1.5mm sizes, large particle molecular sieve

LJGZ2020X

• With the guide rail lifting device

• The head is stable when working

• With large frame auxiliary function

LJGZ2020S

• Two filling stations can work at the same time to improve work efficiency

• Two stations can realize different combinations of ordinary filling, special-shaped filling and large particle filling.(optional)

Details of Automatic Desiccant Filling Machine

Molecular sieve automatic filling machine is an auxiliary equipment for the production of insulating glass. It is used for filling desiccant in hollow glass aluminum partitions, and is used in conjunction with automatic partition bending machines. Since the formed gasket cannot be filled by conventional methods, we have developed an automatic desiccant filling machine for this gasket. This filling machine can fill not only the curved aluminium frame but also the aluminium partitions of the spindles.

Overhead Structural Machining: Hardening of critical components with high-quality materials and surface coatings ensures reliable and durable components. The aero frame has a premium orange peel finish.

Control system: Adopt German Siemens PLC to process control components.

Main feature of the desiccant filling machine :

• Adopt Siemens PLC control system

• Molecular sieves can be 0.5-0.9mm or 1.0-1.5mm in size

• Touch screen interface for simplicity and clarity

• Machine height can be adjusted according to bulkhead size

• Automatic molecular sieve loading and filling

• Double unloading to increase filling speed

• Filling time can be adjusted

• Automatic perforation, filling and sealing

• The main accessories are imported brands

• Adopt large plastic bucket, save feeding time and improve efficiency (optional)

• Machine head protection device (optional)

• Fill arc frame (optional)

• Packed with coarse particle molecular sieves

Technical data :

Electric elements:

Only imported or high-quality domestic electrical products, such as AUTONICS, can be used on the equipment. All of these items are carefully selected and inspected, and can only be used in equipment manufacturing if they pass rigorous testing. Solenoid valves, cylinders, and pneumatic components all use the famous Airtac company or domestic first-class companies.

Body Processing: Key components are hardened with high-quality materials, surface plated or blued, to ensure the reliability and durability of the components.

Machinable aluminum frame width: 6A-27A

Rectangular frame: Minimum machining size: 250 x 300 mm;

Maximum processing size: 2000 mm x 2000 mm
