First Seal Of Insulating Glass Butyl Extruder Machine Non Stick

First Seal Of Insulating Glass Butyl Extruder Machine Non Stick
First Seal Of Insulating Glass Butyl Extruder Machine Non Stick
First Seal Of Insulating Glass Butyl Extruder Machine Non Stick First Seal Of Insulating Glass Butyl Extruder Machine Non Stick First Seal Of Insulating Glass Butyl Extruder Machine Non Stick First Seal Of Insulating Glass Butyl Extruder Machine Non Stick First Seal Of Insulating Glass Butyl Extruder Machine Non Stick First Seal Of Insulating Glass Butyl Extruder Machine Non Stick First Seal Of Insulating Glass Butyl Extruder Machine Non Stick

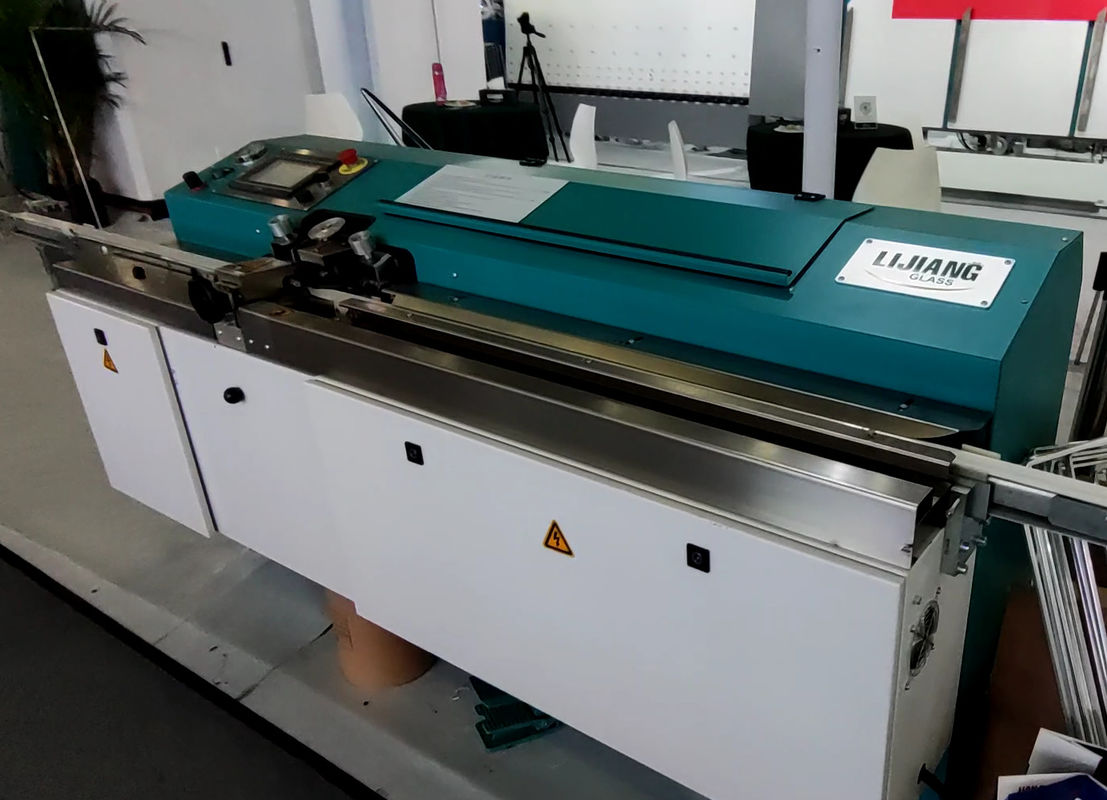

Large Image :  First Seal Of Insulating Glass Butyl Extruder Machine Non Stick

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 11000 per set
Packaging Details: Wooden box or container
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

First Seal Of Insulating Glass Butyl Extruder Machine Non Stick

Description
Product Name: Butyl Extruder Machine Model: LJTB01
Glue Barrel: 7 Kg Coating Speed: 47m/min
Coating Belts: Non Stick Warranty: 1 Year
PLC: Siemens
High Light:

Siemens PLC Butyl Extruder Machine

,

Insulating Glass Seal Automatic Butyl Extruder

,

Non Stick Butyl Extruder Machine

Automatic Butyl Extruder Machine for the first seal of insulating glass
Introduce of  butyl extruder machine:
Automatic Butyl extruder machine is one of sealants spreading machine, it uses butyl glue, the first sealants to seal the sides of the spacer frames.Butyl adhesive coating machine is a very important part of insulating glass processing, which directly affects the sealing effect of insulating glass. The glue butyl extruder machine in Lijiang glass has three models, LJTB01, LJTB02 and LJTB03. LJTB01 is the new butyl extruder machine which has the fast speed to coating butyl glue on spacer sides. LJTB02 is the common butyl extruder machine, it is the first one butyl coating machine in automatically. LJTB03 is the full automatically butyl extruder machine, which do not use hands when coating butyl glue, can connect with spacer transfer machine.

Main feature of Automatic butyl extruder machine:
• Saving glue. The amount of glue on both sides can reach 4g / m,The same sealing effect, the glue is very economical
• Automatic boot can be set to save working time
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Synchronous belt adopts non-stick material, not easy to stick
• Fast coating speed, can up to 47m/min

• Stable pressure and even coating
• Big glue barrel, 200L. (Optional)
Technical data

Squeeze pressure10-18MPa
Temperature110~140℃
Glue thickness0.3-0.5mm
Glue width3.5mm
Aluminum spacer width6A - 27A
Speed5-47m/min
Diameter of butyl cylinder200mm
Air supply0.4m³/min
Air pressure≥0.6MPa
Total power380V, 5.7KW,50HZ
Dimension2800×700×900mm(L×W×H)
weight650kg


Electrical parameters

NameOriginalBrand
PLCChinaKINCO
ValveGermanHAWE
Low voltage electrical apparatusGermanSIEMENS
Hydraulic and pneumatic supercharging systemGermanMAXIMATOR
Frequency converterChinaKINCO
Pneumatic componentsTaiwanARTAC
Quick exhaust valve/Vacuum generatorJapan SMCSMC
Travel lightJapanOMRON
Optical fiberJapanOMRON



First Seal Of Insulating Glass Butyl Extruder Machine Non Stick 0First Seal Of Insulating Glass Butyl Extruder Machine Non Stick 1

LJGZ2020 Automatic desiccant filling machine

First Seal Of Insulating Glass Butyl Extruder Machine Non Stick 2

APPLICATION

The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.


Main feature

n The filling height of can be adjusted according to the size of spacer frame

n Filling time can be adjusted

n Desiccant auto loading and replenish

n Auto drilling, filling and sealing function

n Germany Siemens PLC control system

n Touching screen interface, simple and visible

n Adding glue way is safe and easy

n Machine can fill the arc frame.(optional function)

n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)

Main technical parameter

Filling aluminum frame’s maximum size2000mm*2000mm
Filling aluminum frame’s minimal size300mm*250mm
Article aluminum specifications5.5-24mm
Air source≥0.65MPa
Power supply and power consumptionAC220V 50Hz 1KW
Molecular sieve diameter needed0.5-0.9mm
Dimension1300mm*1100mm*3650mm


First Seal Of Insulating Glass Butyl Extruder Machine Non Stick 3
