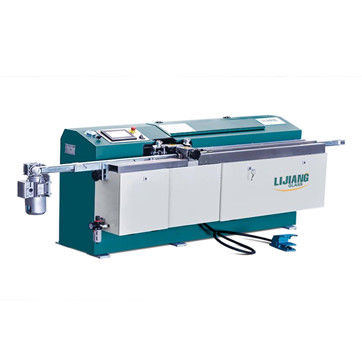

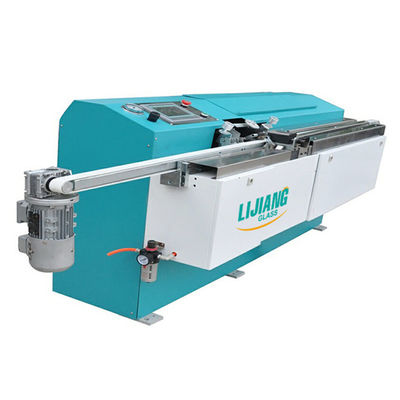

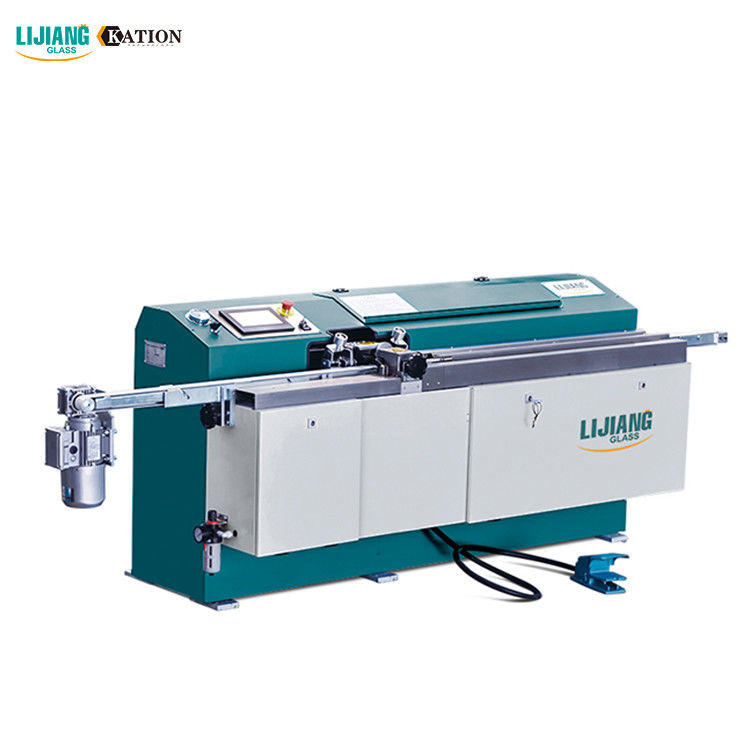

47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine
47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine 47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine 47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine 47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine 47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine 47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

Large Image :  47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

Product Details:
Place of Origin: China
Brand Name: LIJIAGN
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 13000
Packaging Details: wooden
Delivery Time: 10-20

47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

Description
Name: LJTB01 Butyl Extruder Machine V Diameter Of Butyl Cylinder: 200mm
Air Supply: 0.4m³/min Air Pressure: ≥0.6MPa
Total Power : 380V, 5KW, 50HZ Dimension: 2600*680*1100mm
High Light:

47m/Min Butyl Extruder Machine

,

Double Glazing Butyl Extruder Machine

,

47m/Min Double Glazing Glass Making Machine

LJTB01 Butyl Extruder Machine





² Application  of  extruder head

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

² Technical Data of  frequency converter

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600*680*1100mm(L*W*H)
Weight 650kg

² Main components

Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan



² Other features

1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.

2. Quickly speed of warming, improve work effect.

3. Adjustable coating speed, can up to 0-47m/min.

4. Can save about 40% materials, only 5g/m.

5. Extruder head height adjustment structure.

6. Automatic centering and clamping structure.

7. Stable temperature and it is convenient to adjust the sealing material automatically.
