Product Details:
|
| Product Name: | Butyl Extrusion Coating Machine | Glue Thickness: | 0.3-0.5mm |
|---|---|---|---|
| Glue Width: | 3.5mm | Aluminum Spacer Width: | 5.5-26.5mm |
| Speed: | 0-47m/min | Diameter Of Butyl Cylinder: | 200mm |
| Highlight: | 0.5mm Hot Melt Extruder,0.3mm Hot Melt Extruder,0.5mm Rubber Sealing Coating Machine |
||

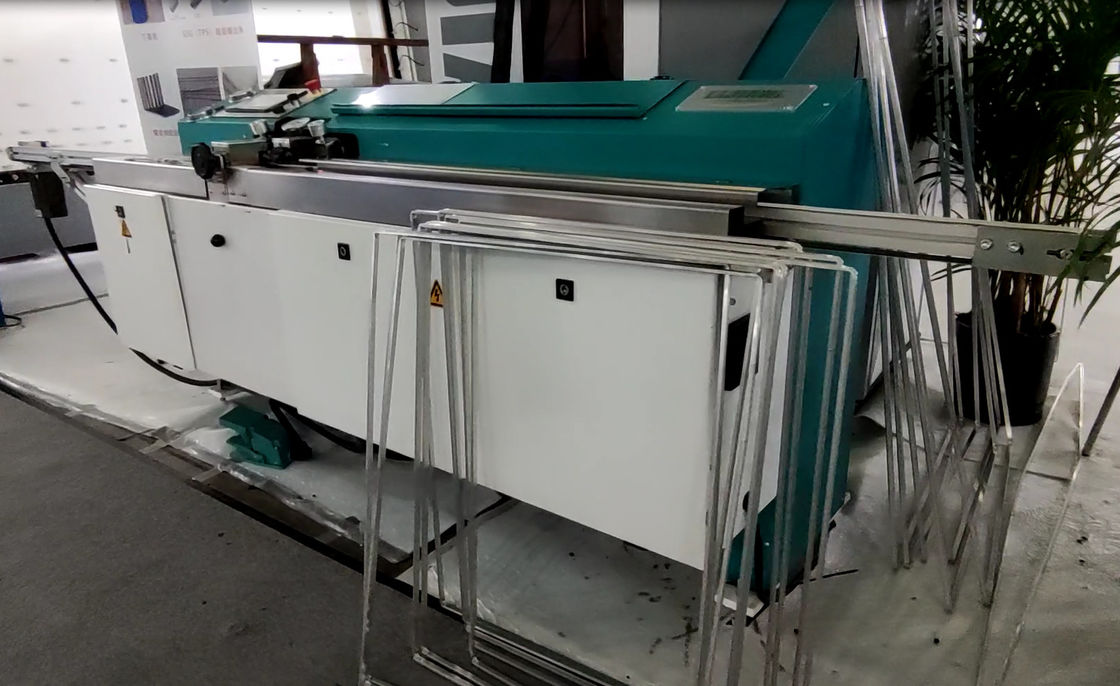

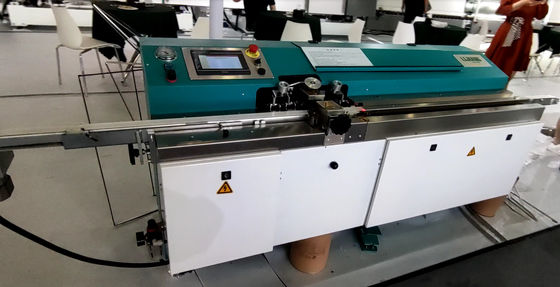

Overview of High speed butyl extruder machine
Automatic high speed butyl extruder machine is used for spreading aluminum frame spacers evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. Automatic Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Main feature of Automatic butyl coating machine
●Main accessories are made of German brand,PLC program control, stable performance
●Saving glue by compared with ordinary machine.The glue valve integrated control can reach 7g/m
● The coating glue speed can reach 47 m/ min
●The height adjustment of beam is convenient, effective to solve the problem of white line
●Manual exhaust, simple operation
●Adopt non adhesive synchronous belt, talc powder is not
●Use touch screenoperation,simple trial
●Adjust the glue output automatically according to the speed change
●Adopt brand hydraulic system to ensure uniform and full rubber output
●The rubber cylinder adopts the pull-up structure, which is convenient for changing therubber
●Adjust the width of glue head automatically,ensure the double side gluing is consistent with the quick opening valve integrated control
●Using movable vertical glue release and horizontal coating, convenient and practical
Tech parameters of Automatic hot melt Extruder Machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 750kg |
Equipment details of Automatic Butyl Extruder Insulating Glass machine
Germany Siemens parts
Butyl extruder machine Adopt German brand Siemens PLC, stable performance.
KINCO Touch Screen
Use toubh screen operation ,simple trial,Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
High speed butyl extruder machine Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Adopt Automatically alarm system, reminding adding butyl.
Glue cylinder
The rubber cylinder adopt the pull-up structure, which is convenient for changing butyl.
Germany Maximator Cylinder
Super charging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Adjust the glue putput automatically according to the speed change
The height adjustment of beam is convenient,effective to solve the provlem of white line
Optional functions of Automatic butyl coating machine:
200L glue cylinder is optional
Related Products of LIJIANG GLASS
1.Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
2.Desiccant Filling Machine LJGZ 2020A
Main feature
• Germany Siemens PLC control system
• Touching screen interface, simple and visible
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency
• Protection device for machine head
• Adopt vacuum pump loading device ,increase the loading speed
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
3.Automatic Aluminum Spacer Bending Machine LJZW2020
Main feature
• Adopt Siemens PLC control system, touch screen interface
• Siemens servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
