47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame

47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame
47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame 47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame 47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame

Large Image :  47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 11000 per set
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame

Description
Production Name: Automatic Butyl Extruder Machine Model: LJTB01
Brand: LIJIANG GLASS Coating Speed: 0 - 47m/min
Aluminum Spacer: 5.5 Mm - 26.6 Mm Glue Thickness: 0.3 - 0.5 Mm
Power: 5.7 Kw Temperature: 110 - 140 ℃
Voltage: 380 V 50 Hz 3 P Warranty: 1 Year
High Light:

47m/min Automatic Butyl Extruder Machine

,

Aluminum Spacer Automatic Butyl Extruder Machine

,

47m/min hot glue machine

Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame


Butyl rubber coating machine is made of aluminum box type hollow glass must be hollow glass equipment; whether it is vertical hollow glass production line or bedroom glass machine; butyl rubber coating machine is necessary.



The role of the butyl rubber coating machine is to give the aluminum ore to butyl rubber; this is the first sealant of insulating glass. The quality of the sealant directly determines the quality and service life of insulating glass.



Parameters of Butyl Extruder Machine



Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg

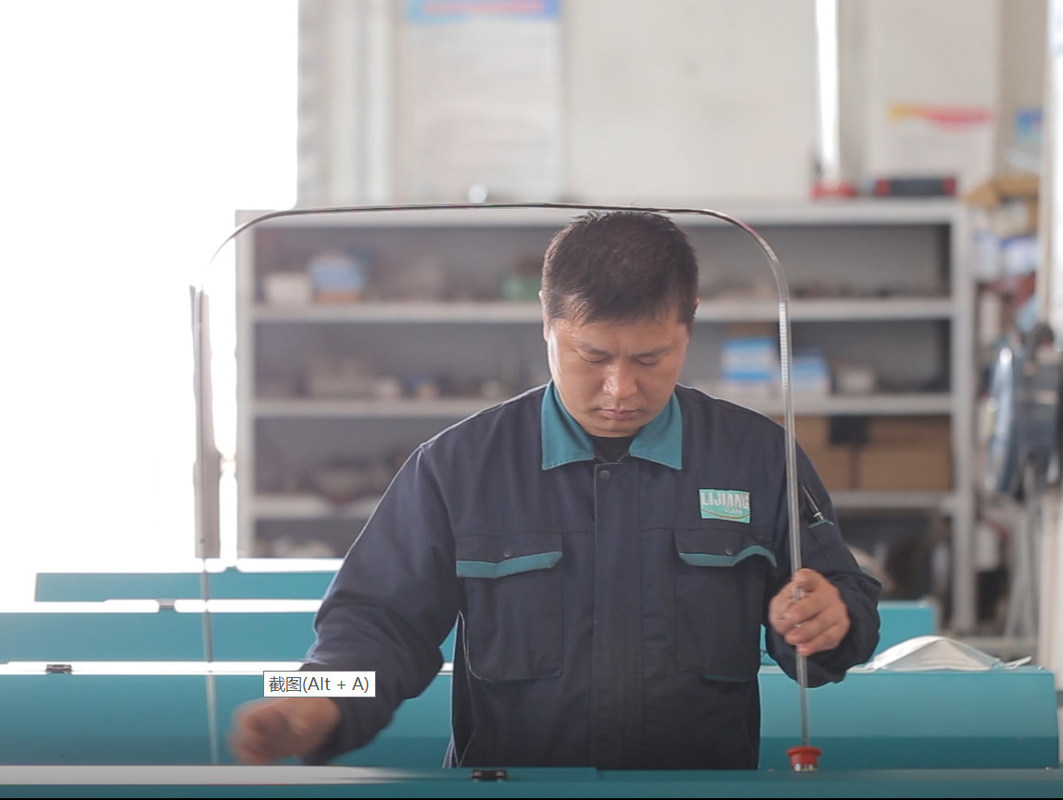

47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame 0


Main feature of extrusion coating machine


• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands


• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)

Electrical parameters of extrusion coating machine



Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON


Introduction of new full automatic butyl extruder machine

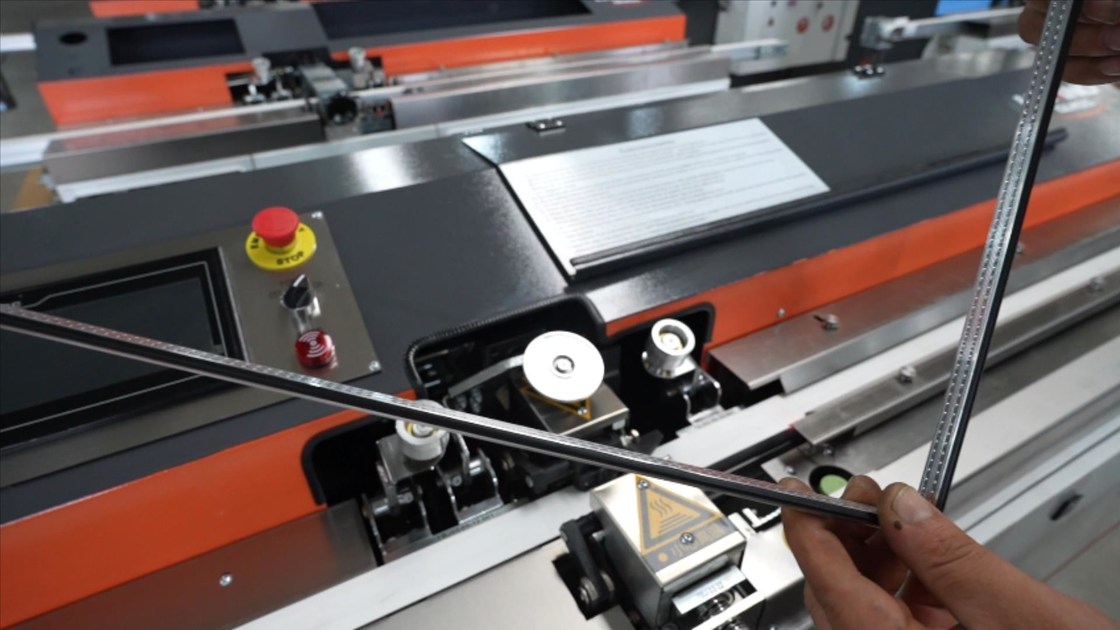

47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame 1


Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.


Machine features


(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
