Insulated Glass Rubber Butyl Extruder Machine Glue Coating

Insulated Glass Rubber Butyl Extruder Machine Glue Coating
Insulated Glass Rubber Butyl Extruder Machine Glue Coating Insulated Glass Rubber Butyl Extruder Machine Glue Coating Insulated Glass Rubber Butyl Extruder Machine Glue Coating Insulated Glass Rubber Butyl Extruder Machine Glue Coating Insulated Glass Rubber Butyl Extruder Machine Glue Coating Insulated Glass Rubber Butyl Extruder Machine Glue Coating

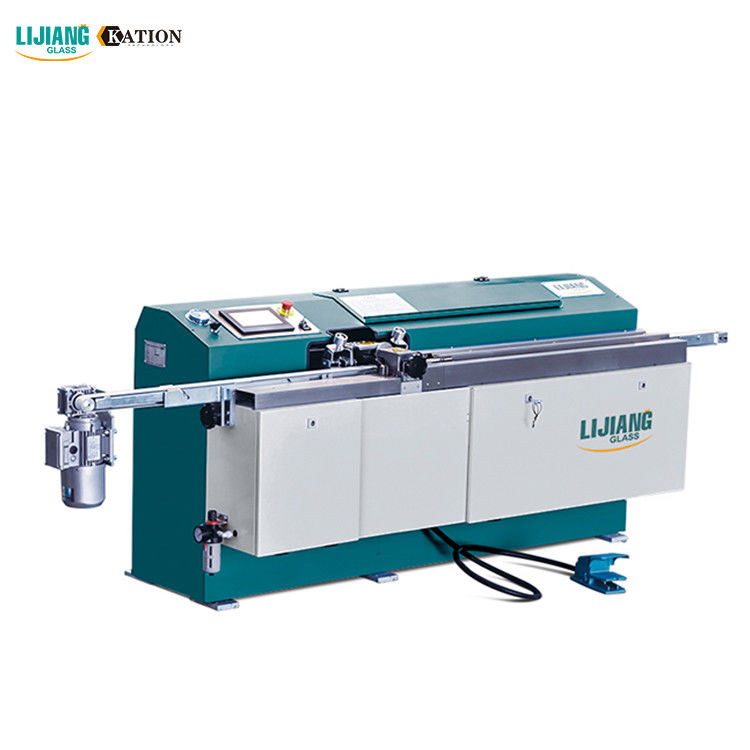

Large Image :  Insulated Glass Rubber Butyl Extruder Machine Glue Coating

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 13000
Packaging Details: wooden
Delivery Time: 30

Insulated Glass Rubber Butyl Extruder Machine Glue Coating

Description
Name: LJTB01 Butyl Extruder Machine Diameter Of Butyl Cylinder: 200mm
Air Supply: 0.4m³/min Air Pressure: ≥0.6MPa
Total Power : 380V, 5KW, 50HZ Dimension: 2600*680*1100mm(L*W*H)
High Light:

Insulated Glass Butyl Extruder Machine

,

Glue Coating Butyl Extruder Machine

,

Rubber Butyl Extruder Machine

Insulated Glass Butyl Sealant Coating Machine Butyl Rubber Extruder Machine Butyl Glue Coating Machine



LJTB01 Butyl Extruder Machine



 Application  of extrusion coating machine



The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer

frames evenly with hot melt butyl. LJTB01 butyl extruder machine use large electrical

control panel which makes the operation more easier. The conveyor of aluminum is

controlled by frequency converter, and the speed can be adjusted from 0m/min to

47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine

is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic

supercharging system, which makes the squeezing pressure more stable. The dispensing

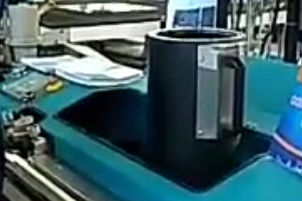

cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can

prolong the life of squeezing system and set the heating time in 24 hours with electricity

and air pressure. The distance of squeezing head can be adjusted automatically according

to different aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide

technology with the characteristic of complete function and stable working mode.



² Technical Data of  electrical control panel

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600*680*1100mm(L*W*H)
Weight 650kg





² Main components  of  frequency converter



Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan



² Other features of  electrical control panel



1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.

2. Quickly speed of warming, improve work effect.

3. Adjustable coating speed, can up to 0-47m/min.

4. Can save about 40% materials, only 5g/m.

5. Extruder head height adjustment structure.

6. Automatic centering and clamping structure.

7. Stable temperature and it is convenient to adjust the sealing material automatically.


Insulated Glass Rubber Butyl Extruder Machine Glue Coating 0
