Product Details:
|
| Machine Name: | Automatic Desiccant Filling Machine | Max. Frame Size: | 2000mm * 2000mm |
|---|---|---|---|
| Min.. Frame Size: | 300mm*250mm | Aluminum Specification: | 5.5 - 26.5 Mm |
| Power: | 1 Kw | Molecular Sieve: | 0.9 - 1.5 Mm (Optional) |
| Filing Heads: | Double Filling Heads | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | ||
| Highlight: | Two Heads Desiccant Filler,Insulating Glass Automatic Filling Machine,Automatic Desiccant Filler |
||

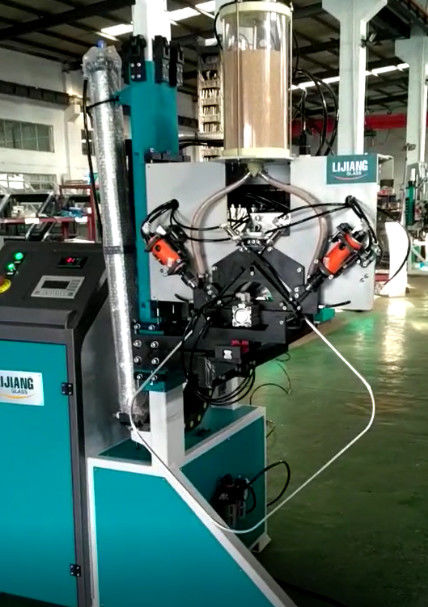

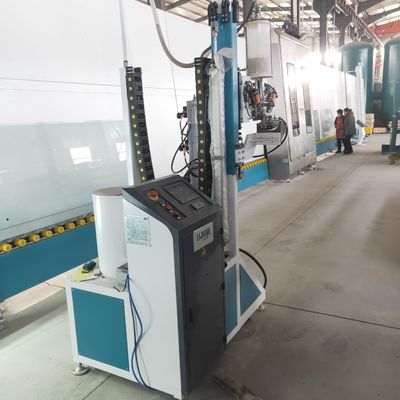

Two Heads Automatic Desiccant Filling Machine for Insulating glass processing
Introduce of Automatic Desiccant Filling Machine
Automatic molecular sieve filling machine is one of the auxiliary machine for making insulated glass. The old type of desiccant filling machine has one filling head. However, the new desiccant filling machine can fill the spacer frame with two heads, which can two spacer different spacer frame together.
APPLICATION
The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Main feature
n The filling height of can be adjusted according to the size of spacer frame
n Filling time can be adjusted
n Desiccant auto loading and replenish
n Auto drilling, filling and sealing function
n Germany Siemens PLC control system
n Touching screen interface, simple and visible
n Adding glue way is safe and easy
n Machine can fill the arc frame.(optional function)
n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
Details of Automatic Desiccant filling machine
1. Machine height can be adjusted according to the size of spacer frame
2. Electrical component are all Germany Brand-Siemens.
3. Protection device for machine head.
4. Auto drilling, filling and sealing function
5. Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6. All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Technical data of Automatic Desiccant Filling Machine
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
LJQJ02 Aluminum spacing trip cutting machine
1. It is used for cutting aluminum strip
Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
LJSKJ02 Semi-auto aluminum frame transfer machine
APPLICATION
LJSKJ02 semi-automatic aluminum frame transfer machine is the equipment necessary for producing aluminum spacer type insulating glass. After an aluminum frame is coated with butyl, hang on the hook of this machine that may convey it to another side automatically.
Model LJSKJ02 semi-automatic aluminum frame transfer machine consists of frame, driving system and electrical control part.
Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
