Product Details:
|
| Machine Name: | Automatic Desiccant Filling Machine | Max. Frame Size: | 2000mm * 2000mm |
|---|---|---|---|
| Min.. Frame Size: | 300mm*250mm | Aluminum Specification: | 5.5 - 26.5 Mm |
| Power: | 1 Kw | Molecular Sieve: | 0.9 - 1.5 Mm (Optional) |
| Filing Heads: | Double Filling Heads | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | ||
| High Light: | 2 Head Desiccant Filling Machine,Double Glazing Desiccant Filling Machine,1 Kw Desiccant Filling Machine |
||
hot salesTwo-head automatic desiccant filling machine for double glazing
Two Heads Automatic Desiccant Filling Machine for Insulating glass processing
Introduce of Automatic Desiccant Filling Machine
The automatic molecular sheave filling machine is one of the auxiliary machines for manufacturing double glazing. Older types of desiccant filling machines have one filling head. However, the new desiccant filling machine can fill the spacer frame with two heads and can fill the two spacer frames together.
Main feature of Automatic Desiccant Filling Machine:
• Desiccant filling machine height can be adjusted according to the size of spacer frame
• Automatic filling and refilling of molecular sieves
• Double discharge hose for increased filling speed
• Charging time can be set
• Automatic drilling, filling and sealing
• Adopt the Siemens PLC control system
• Molecular sieves can be 0.5 - 0.9 mm or 1.0 - 1.5 mm
• Touch screen interface for simplicity and clarity
• Basic components are imported brands
• Adopt a large plastic bucket, save feeding time and improve efficiency (optional)
• Machine head protection device (optional)
• Arc filling frame (optional)
• Packed with a large molecular sieve

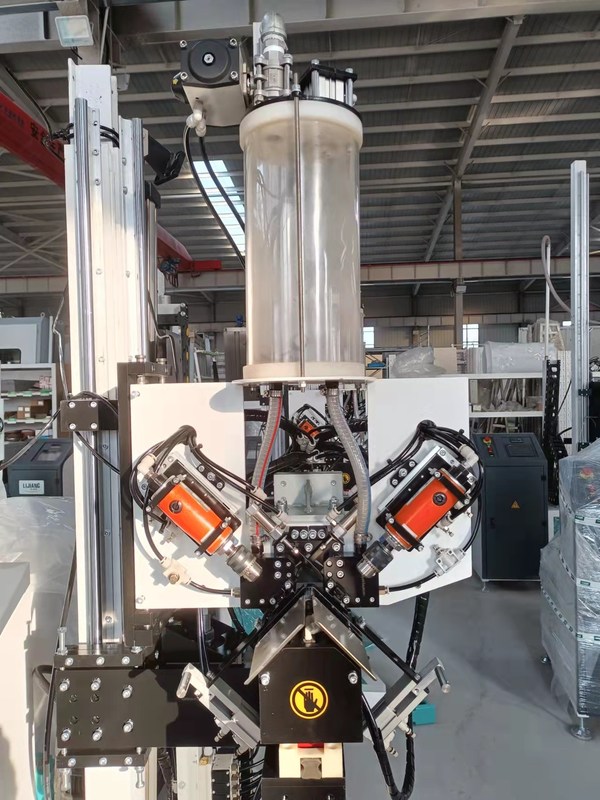

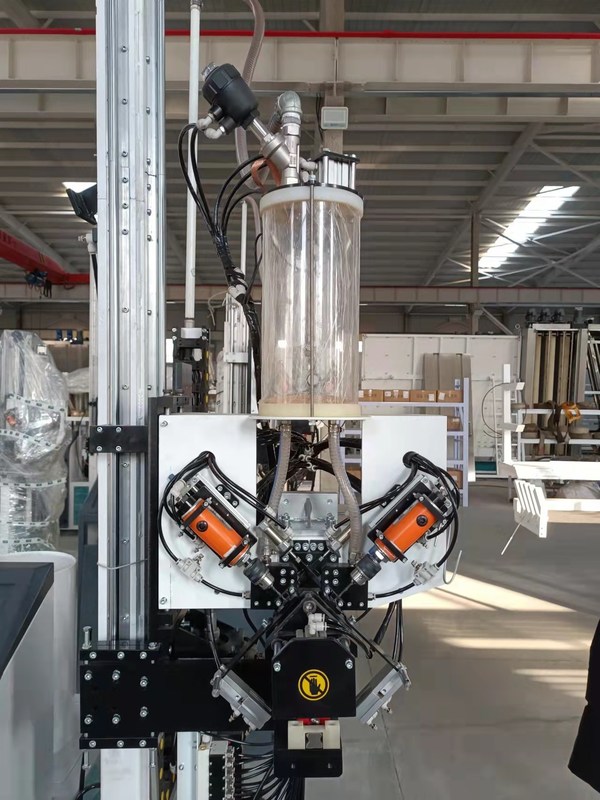

Double charging head for charging two different spacer frames
Details of Automatic Desiccant filling machine
1. Machine height can be adjusted according to the size of spacer frame
2. Electrical component are all Germany Brand-Siemens.
3. Protection device for machine head.
4. Auto drilling, filling and sealing function
5. Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6. All electrical wires have an ID number, can match the specification, will also be very easy for further communication in the after-sales service.
Technical data of Automatic Desiccant Filling Machine
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
Spares of the Automatic desiccant filler
PLC: Germany Brand Siemens
Low voltage electrical apparatus: Germany Brand Siemens
Sensor:Korea Brand Autonics
Guide:Taiwan Brand TBI
Triplet:Taiwan Brand Airtac
Solenoid valve:Taiwan Brand Airtac
Gas driller:Taiwan Brand
Switch power:Taiwan Brand Tend
Related Product of Insulating Glass processing machine
Molecular sieve filling machine LJFGJ 03
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
Main feature
