Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass
Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass

Large Image :  Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 11000 per set
Packaging Details: Wooden box or container
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass

Description
Product Name: Butyl Extruder Machine Model: LJTB01
Glue Barrel: 7 Kg Coating Speed: 47m/min
Coating Belts: Non Stick Warranty: 1 Year
PLC: Siemens
High Light:

PLC Control Automatic Butyl Extruder Machine

,

Non Stick Automatic Butyl Extruder Machine

,

Insulating Glass Seal Butyl Extruder Machine

Automatic Butyl Extruder Machine for the first seal of insulating glass

Introduce of  butyl extruder machine:
Automatic Butyl extruder machine is one of sealants spreading machine, it uses butyl glue, the first sealants to seal the sides of the spacer frames.Butyl adhesive coating machine is a very important part of insulating glass processing, which directly affects the sealing effect of insulating glass. The glue butyl extruder machine in Lijiang glass has three models, LJTB01, LJTB02 and LJTB03. LJTB01 is the new butyl extruder machine which has the fast speed to coating butyl glue on spacer sides. LJTB02 is the common butyl extruder machine, it is the first one butyl coating machine in automatically. LJTB03 is the full automatically butyl extruder machine, which do not use hands when coating butyl glue, can connect with spacer transfer machine.

Main feature of Automatic butyl extruder machine:
• Saving glue. The amount of glue on both sides can reach 4g / m,The same sealing effect, the glue is very economical
• Automatic boot can be set to save working time
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Synchronous belt adopts non-stick material, not easy to stick
• Fast coating speed, can up to 47m/min

• Stable pressure and even coating
• Big glue barrel, 200L. (Optional)
Technical data

Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg


Electrical parameters

Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON

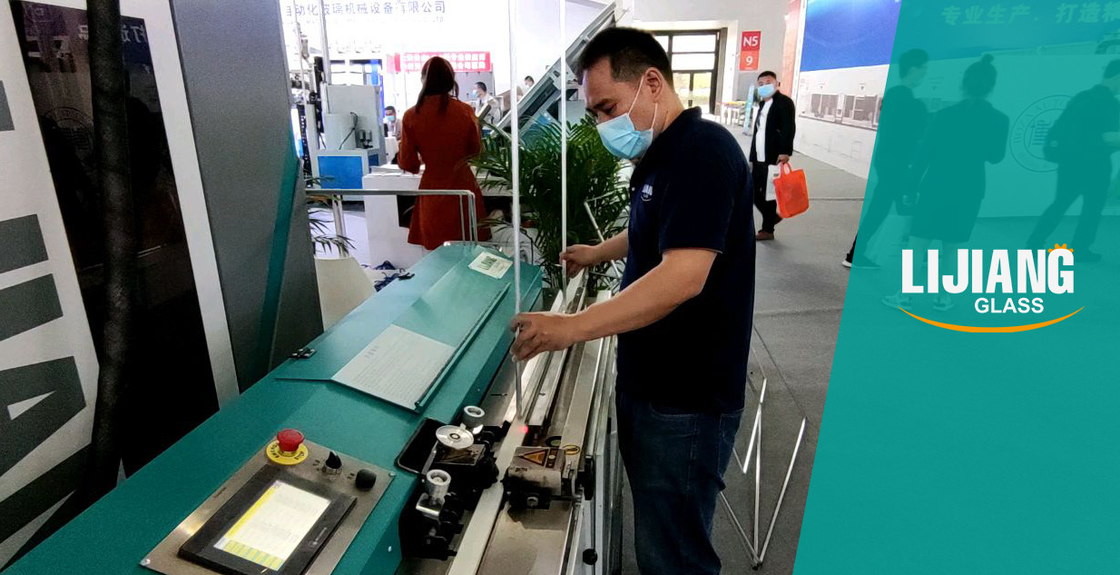

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 0

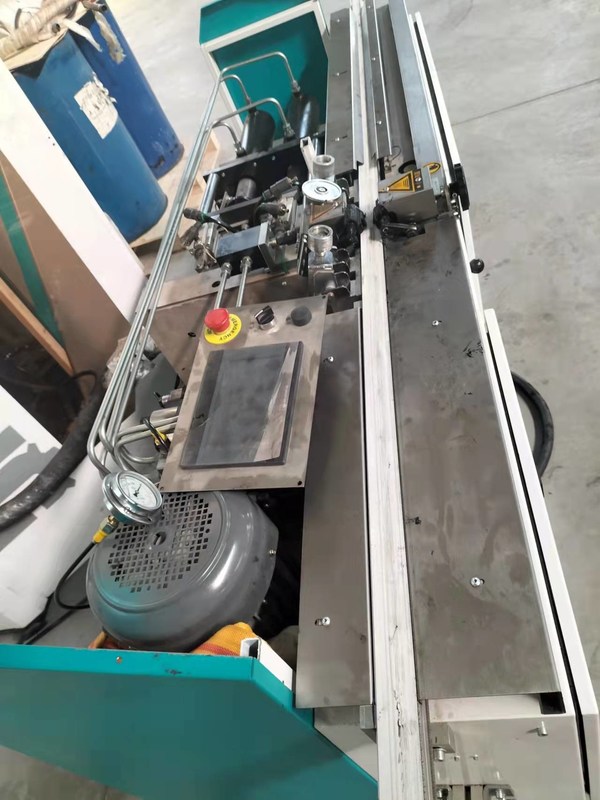

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 1



Details of butyl extruder machine



1.Adopt Germany Siemens brand, stable performance.

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.



Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 2

2.Automatic filter function

Automatically filter debris, keep spreading evently.

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 3



3.Glue cylinder

Adopt the upright structure, easy to change butyl.



Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 4

4.Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 5

5.Alarm system

Automatically alarm system, reminding adding butyl.

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 6

6.Guiding Wheel

Using guiding wheel to help arc frames coating.

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 7

7.Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Automatic Butyl Extruder Machine For The First Seal Of Insulating Glass 8
