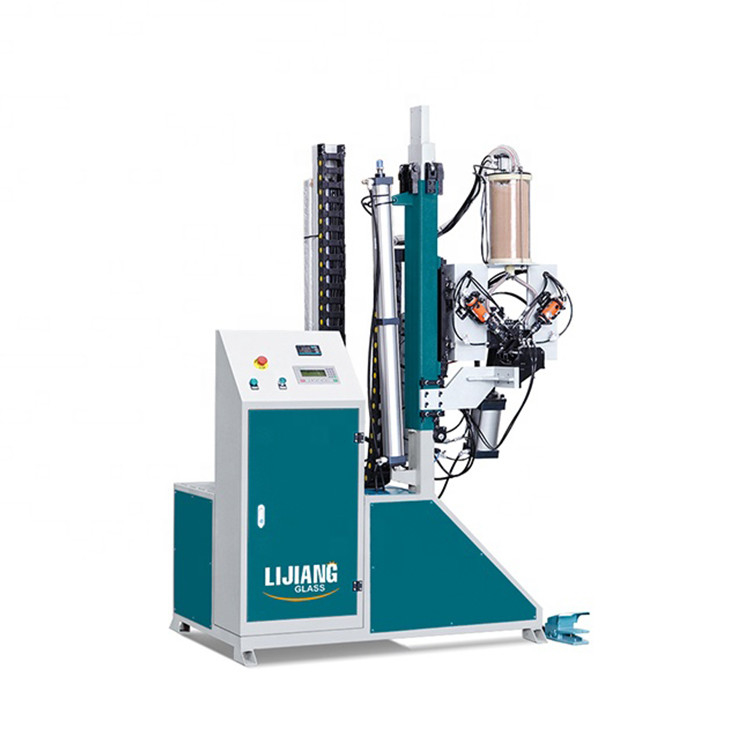

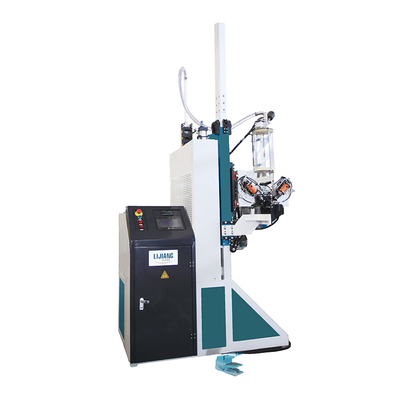

Automatic Insulating Glass Desiccant Filler Molecular Sieve Dryer

Automatic drilling filling sealing​ Machine

PERFORMANCE

• Germany Siemens PLC control system,stable performance

• Automatically drilling, filling and sealing

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Advanced feeding device designed according to the principle of gas flow

• Adopt Industrial plastic spraying treatment of all racks

• Core parts adopts famous imported brand

LJGZ2020A

• Using big plastic barrel, save feeding time and improve efficiency

• Protection device for machine head

• Filling shaped frame

• 1.0-1.5mm sizes, large particle molecular sieve

LJGZ2020X

• With the guide rail lifting device

• The head is stable when working

• With large frame auxiliary function

LJGZ2020S

• Two filling stations can work at the same time to improve work efficiency

• Two stations can realize different combinations of ordinary filling, special-shaped filling and large particle filling.(optional)

Details of Automatic Desiccant Filling Machine

Automatic Molecular sieve filling machine is a kind of auxiliary equipment for the production of insulating glass. It’s for filling desiccant to aluminum spacers of insulating glass and use together with automatic spacer bending machine. Due to the formed spacer cannot be filled by traditional methods, so for this kind of spacers, we developed Automatic desiccant filling machine. The filling machine not only can fill bent aluminum frame, but also can fill pins aluminum spacers.

Air-frame processing:Hardening on the key parts adopt high quality material and surface coating processing to ensure reliable and durable components. Air frame adopt high quality orange-peel finish.

Control system: adopt German Siemens PLC processing control component.

Main feature of the desiccant filling machine :

• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency (Optional)

• Protection device for machine head (Optional)

• Filling arc frame (Optional)

• Fill large particle molecular sieve

Technical data :

Electric elements:

Only imported or top-grade domestic electric elements should be used on the equipment,such as AUTONICS. All these elements were carefully selected and inspected, and only those passed strict tests can be used for equipment fabrication. solenoid valve,cylinder and the Pneumatic components all adopt the elements of the prestigious company Airtac or top-grade domestic company.

Machine body treatment: the key parts are hardened by high-quality materials, and the surface is plated or blued to ensure the reliability and durability of the parts

Machinable aluminum Frame width: 6A-27A

Rectangular frame: Minimum machining size: 250 x 300mm;

Maximum machining size: 2000mm x 2000mm
