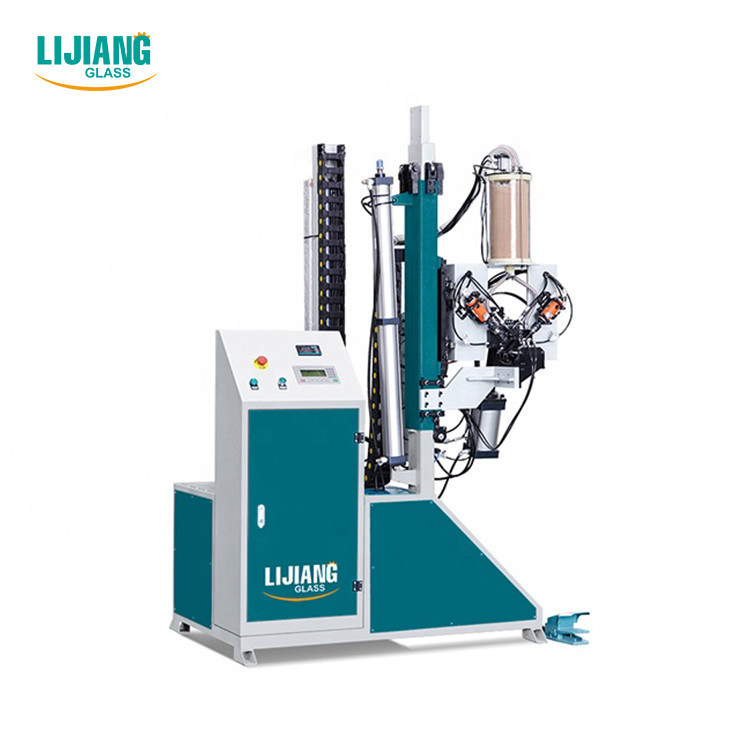

Vertical Type Molecular Sieve Desiccant Filling Machine Insulating Glass

Molecular Sieve Desiccant Filling Machine

Vertical Type Desiccant Filling Machine

Vertical Type Molecular Sieve Filling Machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan LIJIANG Glass

Certification:

CE & ISO9000

Request A Quote

Product Details

Dimension:

1300mm*1100mm*3650mm

Filling Aluminum Frame's Maximum Size:

2000mm*2000mm

Filling Aluminum Frame's Minimal Size:

300mm*250mm

Aluminum Specifications:

5.5-24mm

Molecular Sieve Diameter Needed:

0.5-0.9mm

Air Pressure:

0.6-0.8MPa

Molecular Sieve Diameter:

1-1.5mm

Color:

Customers' Requirement

Highlight:

Molecular Sieve Desiccant Filling Machine

Vertical Type Desiccant Filling Machine

Vertical Type Molecular Sieve Filling Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable Price

Packaging Details

Wooden Cases Package and Container Transfer

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

15 sets per month

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

Side Punching Automatic Sealing and High-Efficient Launch Insulating Glass Vertical Type Desiccant Filling Machine on Sale

Product Description

LJGZ2020 Automatic Desiccant Filling Machine

The Jinan LIJIANG Glass desiccant filling desktop may want to robotically attain moves of drilling holes robotically in the insulating glass spacing frames, filling desiccant and sealant. The manipulate machine adopts Germany Siemens Control System, so the velocity of filling is speedy and secure operation make certain the legitimate closure property of sealant. The computer improves great of insulating glass, it’s a indispensable gear in the technique of insulating glasses.

Advantages & Features

Benefits & Advantages

1.The computer top of can be adjusted in accordance to the dimension of spacer body

2.The desktop time may want to be adjusted

3.The computing device adopts auto loading and refill

4.The computer adopts auto drilling, filling and sealing feature

5.It use Germany Siemens PLC manipulate machine

6.The touching display screen interface, easy and seen

7.It adopts vacuum pump loading machine, increase the loading velocity

8.The desiccant filling computer should use large bucket desiccant, store desiccant fill up time, enhance the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts, have the special ID code number, it ought to healthy with specification, additionally it will be make it effortless for the conversation with clients in the after income carrier on furture.

The Touching Screen Interface

The touching display screen interface, which the components of machine, is easy and visible; and also, the filling time may want to be adjusted in accordance to the dimension of spacer body in the contact screen.

The Materials Bucket

The desiccant filling mechanically loading from the substances bucket. (When the fabric was once used up the sensor will alarming, desiccant will routinely loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is undertake internationally famend manufacturers to make certain the balance of the equipment.

Specification

Item.	Spec.
filling aluminum frame max size	2000mm*2000mm
filling aluminum frame min size	300mm*250mm
molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm1100mm3650mm
Air source	≥0.65MPa
Total power	220V 50Hz 1.5Kw

Name		Brand
PLC		Germany SIEMENS
Triplet		TAIWAN AIRTAC
Low voltage electrical apparatus		Germany SIEMENS
Solenoid valve		TAIWAN AIRTAC
Sensor		Korea AUTONICS
Gas driller		Taiwan BOA
Guide		Taiwan TBI
Switch power		Taiwan TEND
