47m/Min Automatic Butyl Extruder Machine Double Glazing Glass Machine

Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame

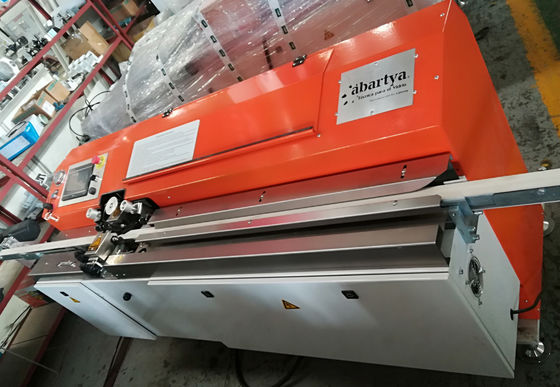

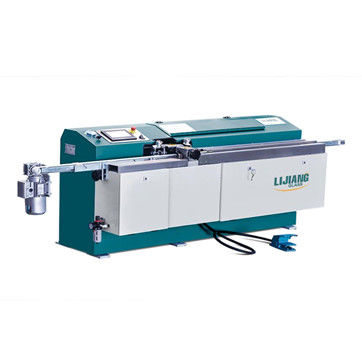

LJTB01 New butyl extruder machine

APPLICATION

LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

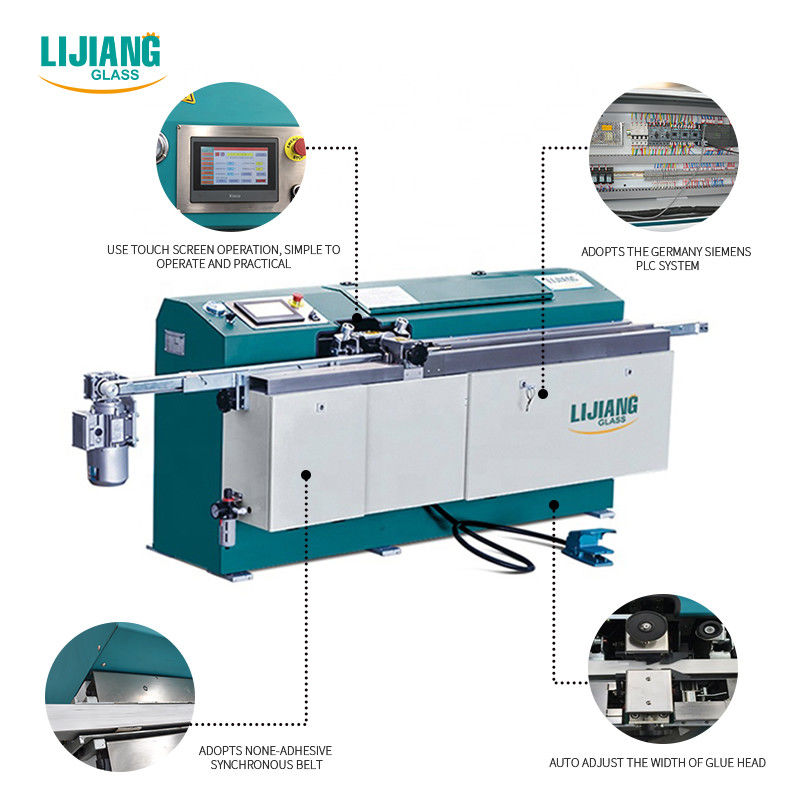

Main feature

Touch-screen operation which makes the machine simple and practical

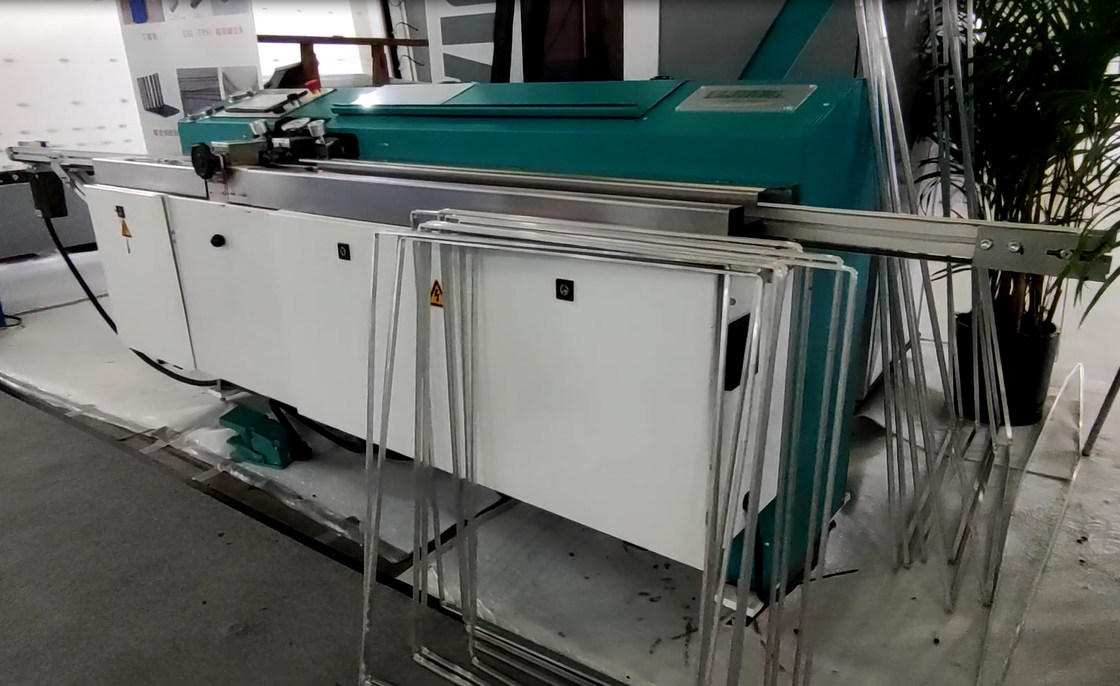

Rectangle & arc frame , decorative aluminum fram can be coat

Auto-measure the width of spacer, auto-adjust the distance of nozzle

Auto-centering and auto clamping

The wheel material is Teflon brand ,non-stick coating, non-adhesive belt

The crossbeam height is easy to adjust,we can control the height of butyl

Nuzzle height can be adjust, solve the gap between spacer and butyl

The coating speed is up to 47m/min,save butyl is up to 30％

(double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm)

Glue output and height is same level.

Alarm device when use out of butyl

Pre-heating function,set up a regular time before .

Glue cylinder stands upside,easy to change glue

Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly

The front roller and the back roller are used for rectangular frame, the Arc roller is used for circular frame.

Electrical components are used famous brand

Pneumatic and Hydralic supercharging pump -German Maximator brand

control the pressure of outlet oil strongly.

Pressure valve German HAWE brand with high pressure resistance, keep the butyl well proportioned

Pneumatic component -Taiwan Airtac

Relay Japan OMROM

Japan quick-opening valve make sure the both sides of nozzle open and close at the



Main feature of extrusion coating machine
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands


• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)

Electrical parameters of Butyl extruder machine
