Insulating Glass Automatic Desiccant Filling Machine By Molecular Sieve Dryer

Insulating Glass Automatic Desiccant Filling Machine By Using Molecular Sieve Dryer

Automatic Molecular sieve filling machine is a kind of auxiliary equipment for the production of insulating glass. It’s for filling desiccant to aluminum spacers of insulating glass and use together with automatic spacer bending machine. Due to the formed spacer cannot be filled by traditional methods, so for this kind of spacers, we developed Automatic desiccant filling machine. The filling machine not only can fill bent aluminum frame, but also can fill pins aluminum spacers.

Air-frame processing:Hardening on the key parts adopt high quality material and surface coating processing to ensure reliable and durable components. Air frame adopt high quality orange-peel finish.

Control system: adopt German Siemens PLC processing control component.

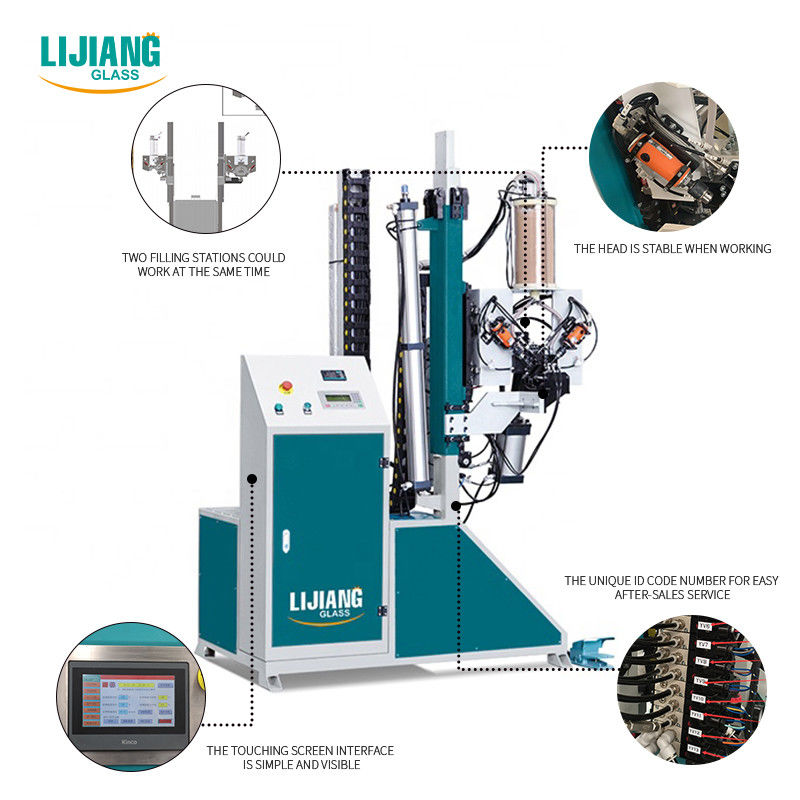

Main feature of the desiccant filling machine :

• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency (Optional)

• Protection device for machine head (Optional)

• Filling arc frame (Optional)

• Fill large particle molecular sieve

Technical data :

Electric elements:

Only imported or top-grade domestic electric elements should be used on the equipment,such as AUTONICS. All these elements were carefully selected and inspected, and only those passed strict tests can be used for equipment fabrication. solenoid valve,cylinder and the Pneumatic components all adopt the elements of the prestigious company Airtac or top-grade domestic company.

Machine body treatment: the key parts are hardened by high-quality materials, and the surface is plated or blued to ensure the reliability and durability of the parts

Machinable aluminum Frame width: 6A-27A

Rectangular frame: Minimum machining size: 250 x 300mm;

Maximum machining size: 2000mm x 2000mm
