Name: Color Customization Automatic Desiccant Filling Machine With Double Filler Heads
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJGZ2020S
Price: 8,600.00 USD
Availability: InStock

Home > Products > Desiccant Filling Machine >

Color Customization Automatic Desiccant Filling Machine With Double Filler Heads

Color Customization Desiccant Filling Machine

Double Filler Heads Desiccant Filling Machine

Double Filler Heads Desiccant Filler

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

Model Number:

LJGZ2020S

Request A Quote

Color Customization Automatic Desiccant Filling Machine With Double Filler Heads

Product Details

Voltage:

220V/380V/415V

Power:

1 Kw

Dimension(L*W*H):

1300mm*1100mm*3600mm

Weight:

650 Kg

Glass Thickness:

3 - 15mm

Highlight:

Color Customization Desiccant Filling Machine

Double Filler Heads Desiccant Filling Machine

Double Filler Heads Desiccant Filler

Payment & Shipping Terms

Minimum Order Quantity

ONE

Price

9000 USD to 8200 USD

Packaging Details

Wooden boxes and containers

Delivery Time

10 working days

Payment Terms

L/C, T/T

Supply Ability

15 units per month

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

Color customization Automatic Desiccant Filling Machine With Double Filler Heads For Double Glazing Glass Processing

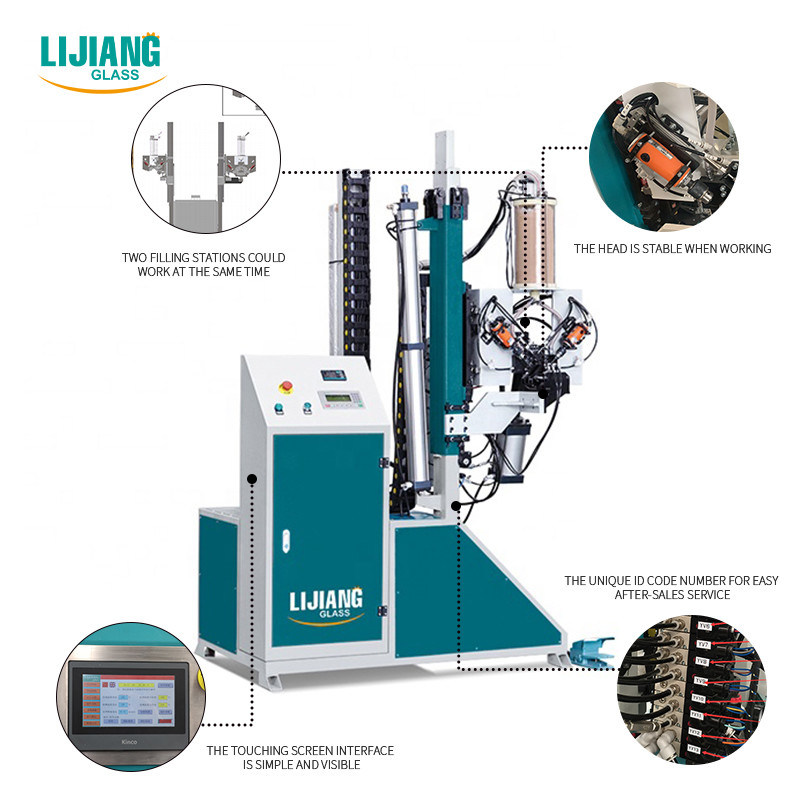

Double filler heads

Double filler heads can fill the common spacer frame and the shaped spacer frame together, improving the working speed.

Filling big frame

The desiccant filling machine has the guide rail lifting device , the head is stable when working, with large frame auxiliary function.

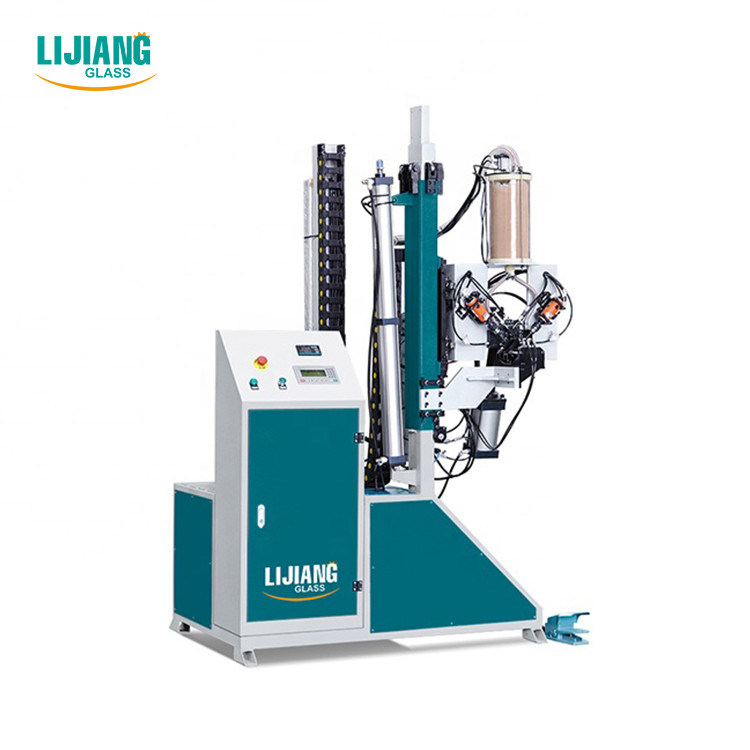

Full automatic desiccant filling machine

The desiccant filling machine is used to fill molecular sieve dryer into spacers to keep a drying.

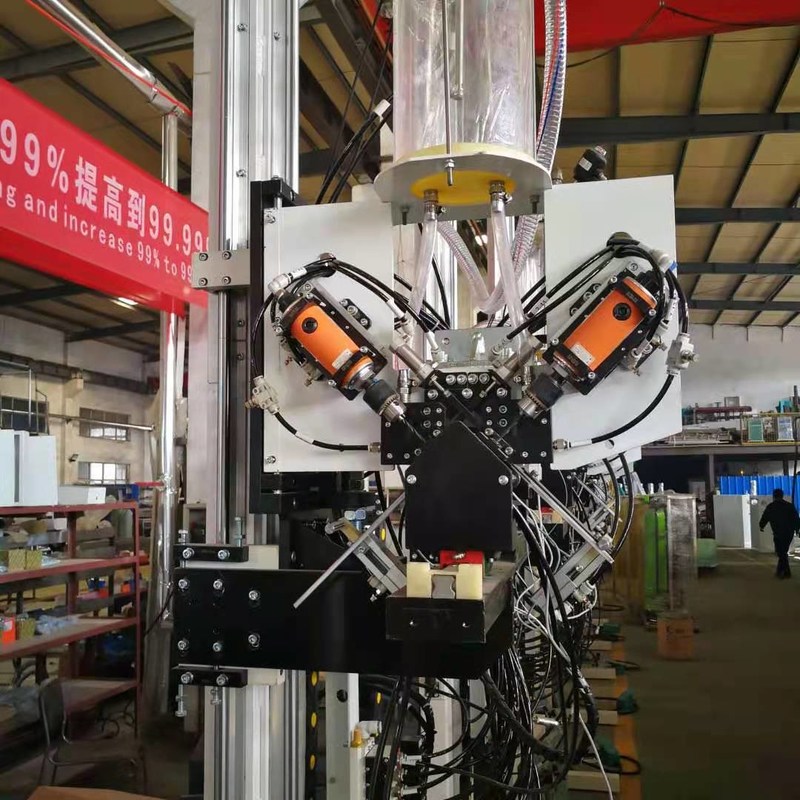

Double filling heads

•Double tubes for unloading to increase filling speed

Molecular sieve material

Packaged by barrel or carton.•can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

Auto drill, fill and seal

Adopt Siemens PLC control system

Item	Spec
Max. frame size	2000mm2000mm (2500mm2500mm)
Min. frame size	300mm*250mm
Aluminum specifications	6A- 27A
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1KW
Molecular sieve diameter needed	0.5-0.9 mm or 1.0 – 1.5mm
Dimension	1100mm1100mm3600mm
