Product Details:
|
| Name: | Automatic Descciant Filling Machine | PLC: | Siemens |
|---|---|---|---|
| Advantage: | Easy Operate | Height: | Can Be Adjusted According To The Size Of Spacer Frame |
| Max Frame Size: | 2000*2000mm | Aluminum Specifications: | 5.5-26.5mm |
| High Light: | Automated Desiccant Filler,Molecular Sieve Desiccant Filler,Molecular Sieve Desiccant Filling Machine |
||
►APPLICATION of desiccant filling machine
APPLICATION

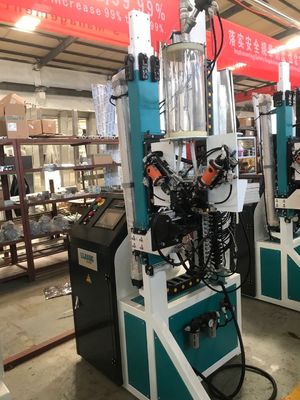

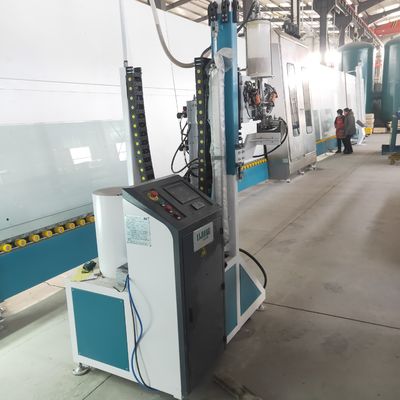

The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

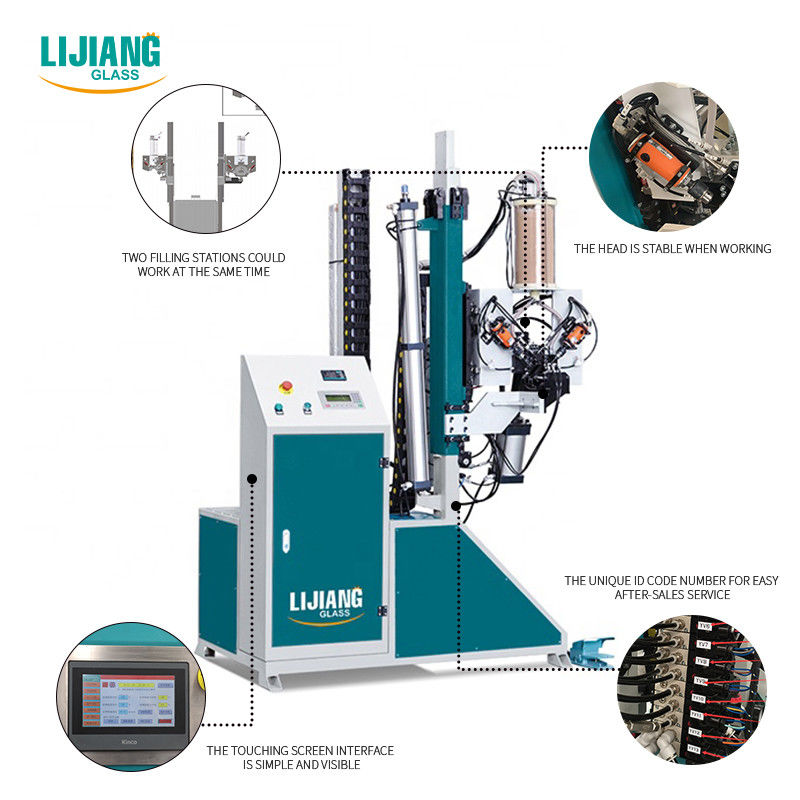

Main feature

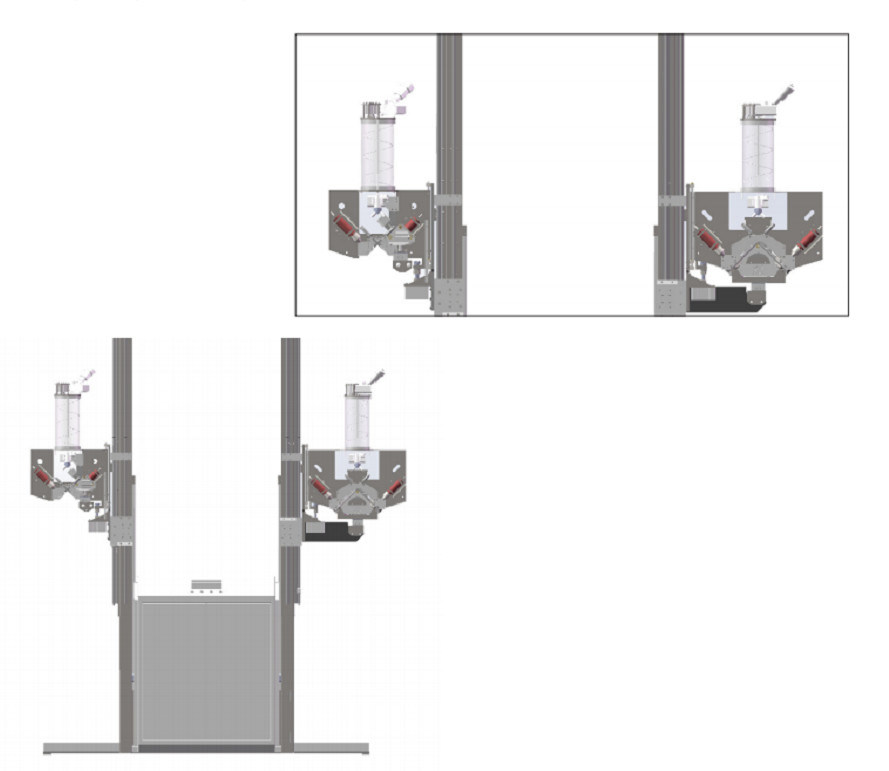

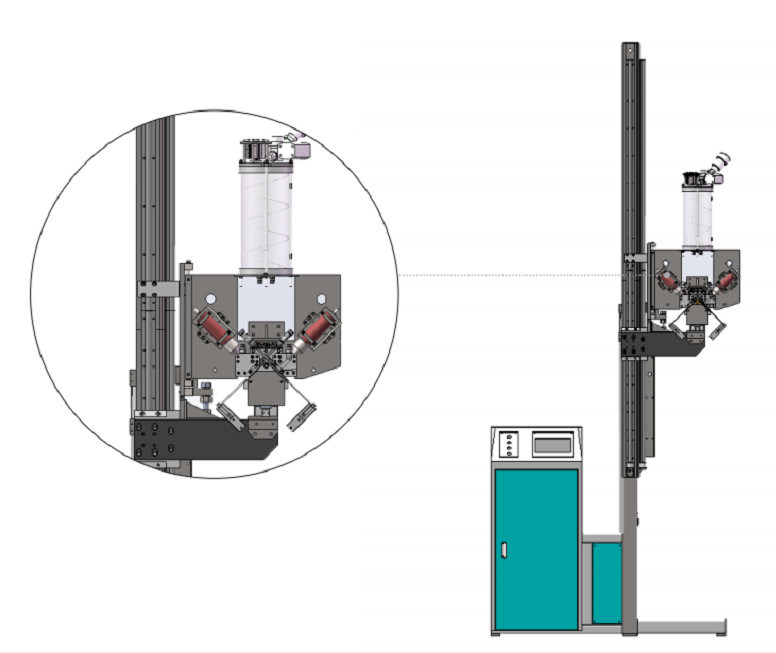

n The filling height of can be adjusted according to the size of spacer frame
n Filling time can be adjusted
n Desiccant auto loading and replenish
n Auto drilling, filling and sealing function
n Germany Siemens PLC control system
n Touching screen interface, simple and visible
n Adding glue way is safe and easy
n Machine can fill the arc frame.(optional function)
n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
Main technical parameter
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
LIJIANG GLASS- PROFESSIONAL SUPPLIER FOR INSULATING GLASS MACHNE
Other product of LIJIANG GLASS
Automatic Spacer Bending Machine of Insulating Glass LJZW2020
l 1*1m spacer frame was bend w 20s.
The error of spacer frame angle is within withib 10 um ,1mm=100 um
Size error 1mm
Shaped
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
►Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
►Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
