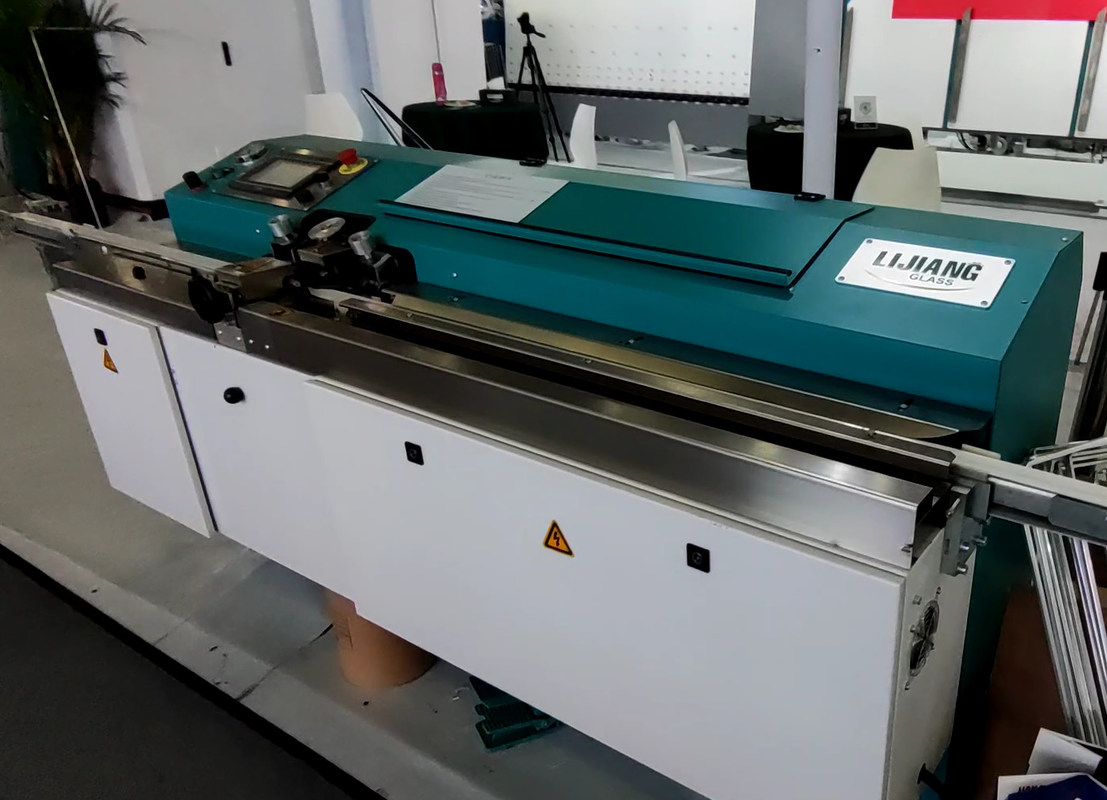

Name: Automatic Butyl Extruder Machine Butyl Adhesive Coater for Insulating Glass Hollow Glazing Processing
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJTB01
Availability: InStock

Home > Products > Butyl Extruder Machine >

Automatic Butyl Extruder Machine Butyl Adhesive Coater for Insulating Glass Hollow Glazing Processing

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan LIJIANG Glass

Certification:

CE & ISO9000

Model Number:

LJTB01

Request A Quote

Product Details

Name:

Automatic Butyl Extruder Coating Machine

Aluminum Spacer Width:

6A - 27A

Speed:

5-47 M/min

Diameter Of Butyl Cylinder:

200 Mm

Air Pressure:

≥0.6 MPa

Dimension:

1600mm*1300mm*3600mm

Weight:

650 Kgs

Glass Thickness:

3-25mm

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable Price

Packaging Details

Wooden Cases Package and Container Transfer

Delivery Time

15 Working Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram and so on.

Supply Ability

15 sets per month

Product Description

Automatic Butyl Extruder Machine Butyl Adhesive Coater for
Insulating Glass Hollow Glazing Processing

Product Description

LJTB01 Butyl Extruder Machine

This kind of LJTB01 butyl extruder desktop is used for spreading aluminum spacer frames evenly with warm soften butyl. This tools use giant electrical manipulate panel which makes the operation extra easier. The conveyor of aluminum is managed through frequency converter, and the pace can be adjusted from 0m/min to 47m/min, which has the quickest pace in China. It is very famous with energy-saving. Its squeezing device adopts pneumatic and hydraulic supercharging system, which makes the squeezing stress greater stable. The doling out cylinder makes use of vertical rotary aid device and it makes the replenish of butyl easier. It can lengthen the lifestyles of squeezing gadget and set the heating time in 24 hours with electrical energy and air pressure. The distance of squeezing head can be adjusted mechanically in accordance to exceptional aluminum spacer. The computing device has reached the global science with the attribute of entire characteristic and secure working mode.

Main Technical Parameter

Item.		Spec.
filling aluminum frame max size		2000mm*2000mm
filling aluminum frame min size		300mm*250mm
molecular sieve diameter needed		0.5-0.9mm
Dimension		1300mm1100mm3650mm
Air source		≥0.65MPa
Total power		220V 50Hz 1.5Kw

Name		Brand
PLC		Germany SIEMENS
Triplet		TAIWAN AIRTAC
Low voltage electrical apparatus		Germany SIEMENS
Solenoid valve		TAIWAN AIRTAC
Sensor		Korea AUTONICS
Gas driller		Taiwan BOA
Guide		Taiwan TBI
Switch power		Taiwan TEND

Advantages & Features

Benefits & Advantages

1.The desktop top of can be adjusted in accordance to the measurement of spacer body

2.The desktop time may want to be adjusted

3.The computer adopts auto loading and refill

4.The laptop adopts auto drilling, filling and sealing feature

5.It use Germany Siemens PLC manipulate machine

6.The touching display screen interface, easy and seen

8.It adopts vacuum pump loading machine ,increase the loading velocity

9.The desiccant filling desktop may want to use large bucket desiccant ,save desiccant fill up time, enhance the work efficiency.

◎ The computer adopts PLC manage system, man-machine interface display, intuitive and handy operation.

◎ The filling peak can be adjusted arbitrarily in accordance to the measurement of the aluminum bar, which has a broad vary of applications.

◎ The laptop has an automated replenishment feature to stop fallacious filling; and an computerized sealing function.

◎ The laptop adopts superior feeding machine primarily based on the precept of fuel flow; all racks are industrially sprayed with plastics.

◎ The core manipulate elements of the computing device undertake imported components, and the overall performance is secure and reliable.

The Unique ID Code Number

All the electrical wires of the computing device parts, have the special ID code number, it should fit with specification, additionally it will be make it effortless for the verbal exchange with clients in the after income provider on furture.

The Touching Screen Interface

The touching display screen interface, which the components of machine, is easy and visible; and also, the filling time may want to be adjusted in accordance to the dimension of spacer body in the contact screen.

The Materials Bucket

The desiccant filling routinely loading from the substances bucket. (When the cloth used to be used up the sensor will alarming, desiccant will mechanically loading.)

The Electrical Component

The electrical factor are all Germany Brand-Siemens, which is undertake internationally famend manufacturers to make sure the steadiness of the equipment.
