Product Details:
|
| Name: | LJGZ2020 Desiccant Filling Machine | Filling Aluminum Frame’s Maximum Size: | 2000mm*2000mm |
|---|---|---|---|
| Filling Aluminum Frame’s Minimal Size: | 300mm*250mm | Article Aluminum Specifications: | 5.5-24mm |
| Air Source: | ≥0.65MPa | Molecular Sieve Diameter Needed: | 0.5-0.9mm |
| High Light: | 2000mm*2000mm Desiccant Filling Machine,2000mm*2000mm Insert Filling Machine,Double glass Desiccant Filling Machine |
||

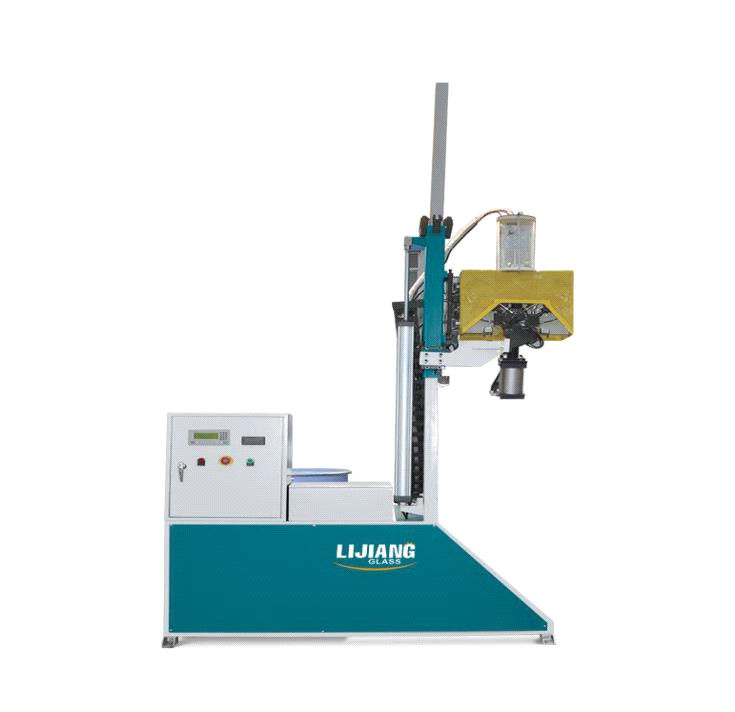

LJGZ2020N Desiccant Filling Machine
Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
1, Protection device for machine head.
2, Easy and safe for adding glue.
3, Electrical component are all Germany Brand-Siemens.
4 , Machine height can be adjusted according to the size of spacer frame.
5, Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6,Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
|
Low voltage electrical apparatus |
German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
FAQ of automatic liquid filling machine
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer
