Insulated Glass Molecular Sieve Filling Machine For Aluminum Spacer Desiccant Filling

automated molecular sieve filling machine

Insulated Glass Molecular Sieve Filling Machine

Desiccant Molecular Sieve Filling Machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass Machinery

Certification:

CE & ISO9000

Request A Quote

Product Details

Name:

Automatic Desiccant Filling Machine

Model:

LJGZ2020A

Function:

Filiing Frame

Max.Glass Size:

2500*2500mm

Min Glass Size:

150-300mm

Machinery Size:

1600*1300*3600mm

Aluminum Spacer Size:

6A-27A

Molecular Sieve Diameter:

1-1.5mm

Highlight:

automated molecular sieve filling machine

Insulated Glass Molecular Sieve Filling Machine

Desiccant Molecular Sieve Filling Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiated Price

Packaging Details

Wooden Cases Package

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

15 sets per month

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

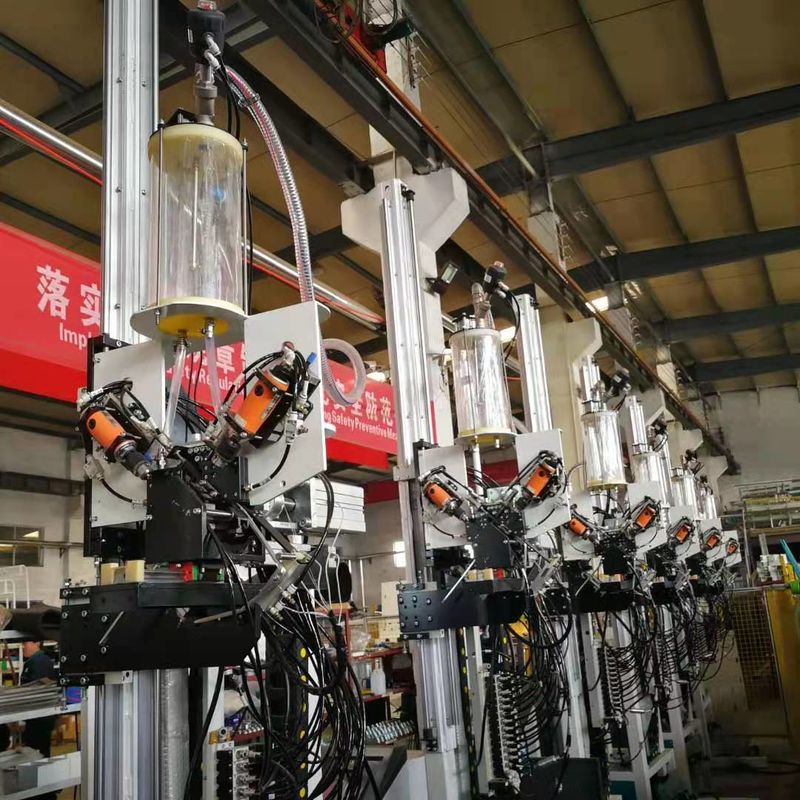

Insulated Glass Automatic Molecular Sieve Filling Machine for Aluminum Spacer Desiccant Filling

Product Description

LJGZ2020 Automatic Desiccant Filling Machine

The desiccant filling machine could automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens Control System, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

Advantages & Features

Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant, save desiccant refill time, improve the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.

Main Technical Parameter

Item.	Spec.
filling aluminum frame max size	2000mm*2000mm
filling aluminum frame min size	300mm*250mm
molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm1100mm3650mm
Air source	≥0.65MPa
Total power	220V 50Hz 1.5Kw

Name		Brand
PLC		Germany SIEMENS
Triplet		TAIWAN AIRTAC
Low voltage electrical apparatus		Germany SIEMENS
Solenoid valve		TAIWAN AIRTAC
Sensor		Korea AUTONICS
Gas driller		Taiwan BOA
Guide		Taiwan TBI
Switch power		Taiwan TEND
