Product Details:
|
| Brand Name: | Jinan Lijiang Glass | Dimension(L*W*H): | 1300mm*1100mm*3600mm |
|---|---|---|---|
| Max.Glass Size: | 2500*2500mm | Min Glass Size: | 150-300mm |
| Machinery Size: | 1600*1300*3600mm | Aluminum Spacer Size: | 6A-27A |
| Weight: | 700Kgs | Air Pressure: | 0.65mpa |
| High Light: | 0.9mm Molecular Filler,0.9mm Automated Glass Dryer Machine,glazing glass Molecular Filler |
||
APPLICATION

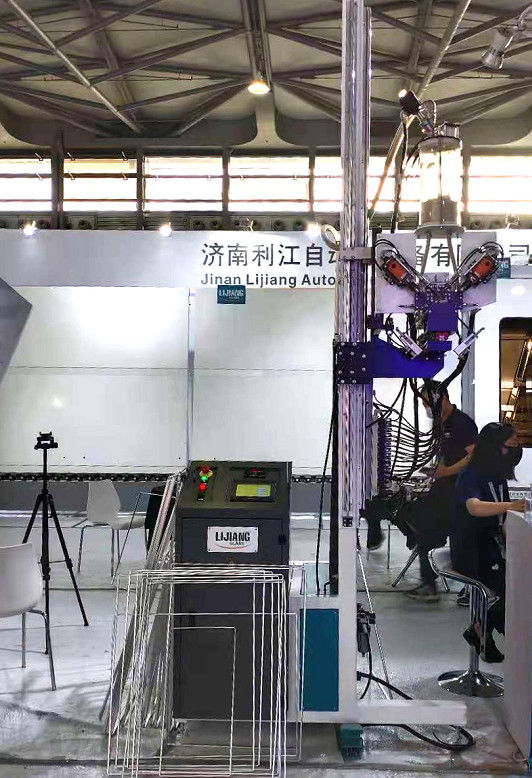

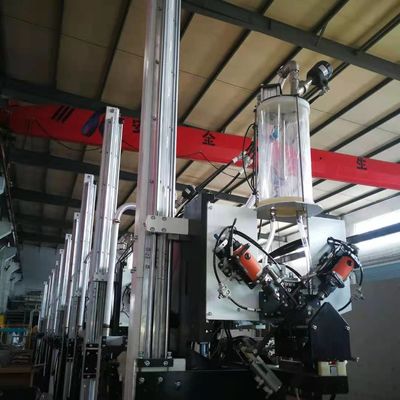

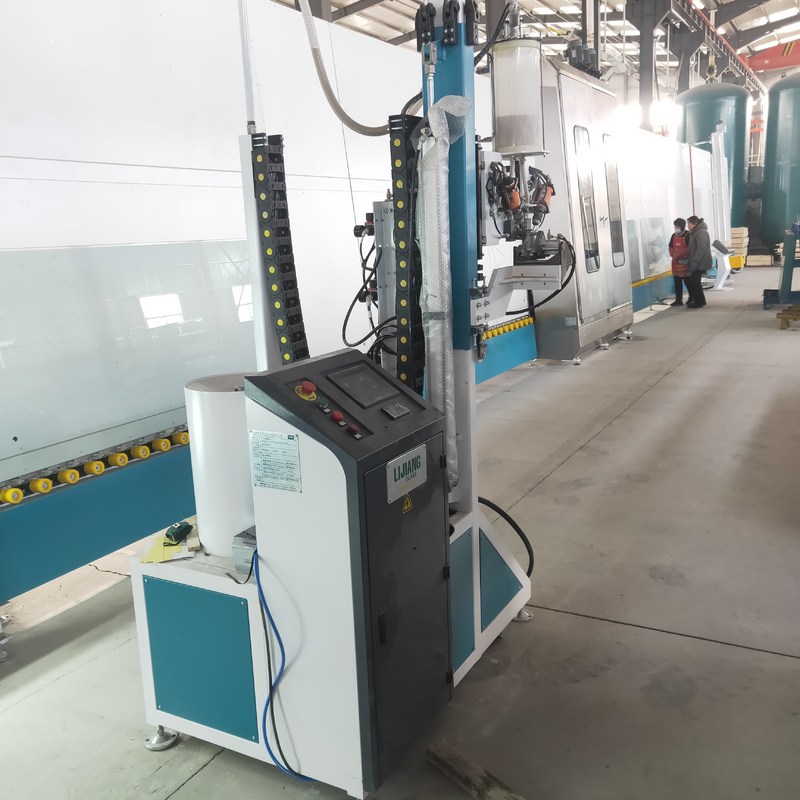

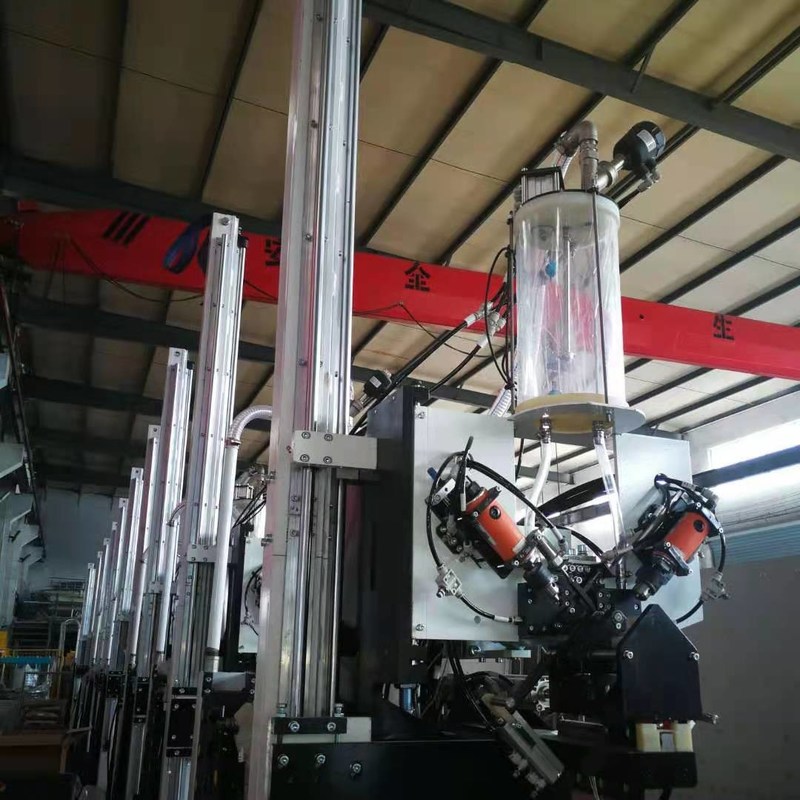

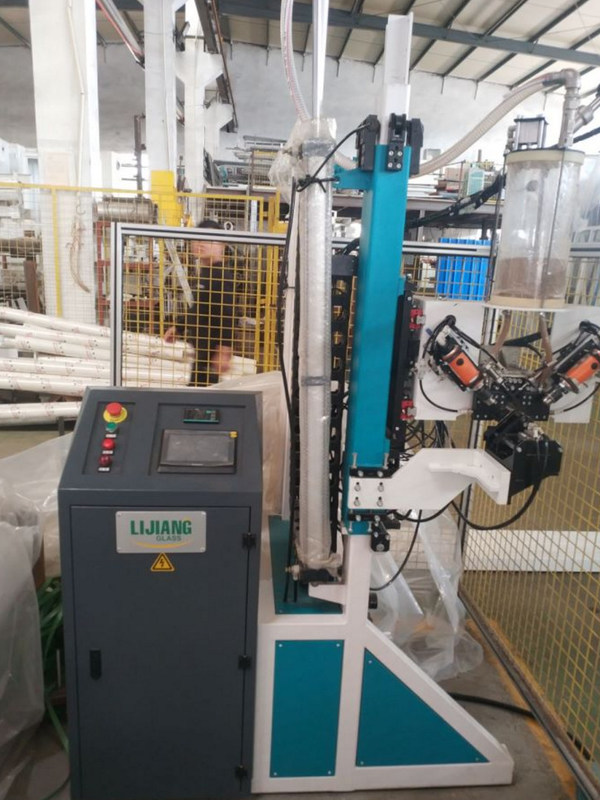

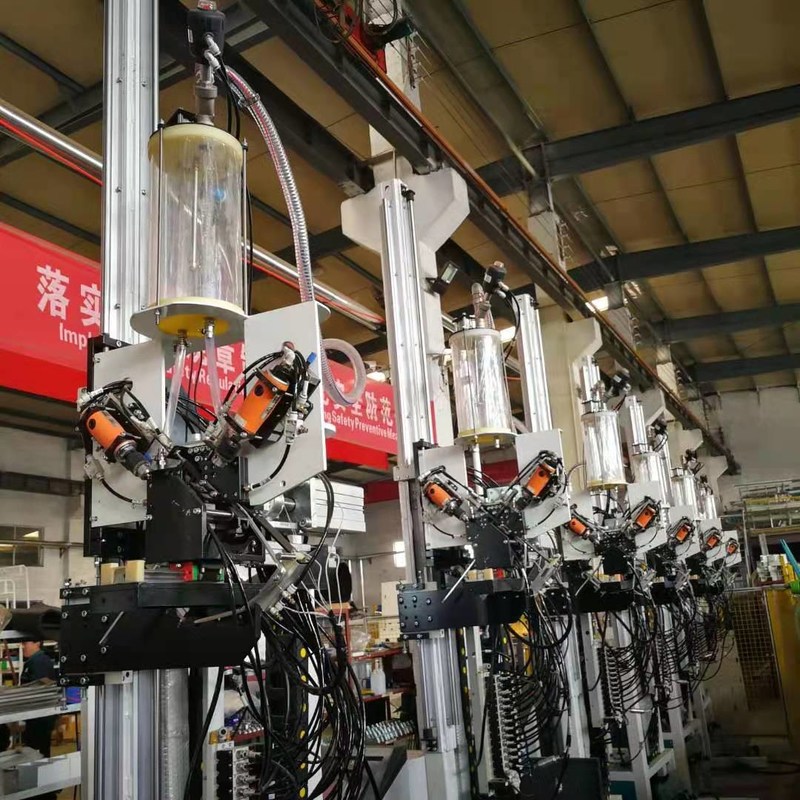

The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Main feature
n The filling height of can be adjusted according to the size of spacer frame
n Filling time can be adjusted
n Desiccant auto loading and replenish
n Auto drilling, filling and sealing function
n Germany Siemens PLC control system
n Touching screen interface, simple and visible
n Adding glue way is safe and easy
n Machine can fill the arc frame.(optional function)
n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
LJTB03 Butyl extruder machine
Main feature
n PLC control system, touch screen interface.
n Frequency control system
n Abroad technology, pneumatic and hydraulic supercharging system.
n Automatic centering and clamping structure.
n Separate extruder head structure.
n Automatic butyl volume display function.
n Circular arc butyl sealing structure.
n Extruder head height adjustment structure
n Preheating function
n Butyl cylinder swing mechanism
n Important control parts adopt imported brand.
Main technical parameter
| Squeeze pressure | 10-14MPa |
| Temperature | 110-140ºC |
| Aluminum spacer width | 6-24mm |
| Speed | 0-27m/min |
| Diameter of butyl cylinder | 190mm |
| Air supply | Flow:0.4m/min |
| Air pressure | ≥ 0.8MPa |
| Total power | 220V 50HZ 2.5KW |
| Dimension | 3000*620*1102mm |
Spacer bending machine
l 1*1m spacer frame was bend around 17s.
The error of spacer frame angle is within 0.1mm.
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Low-e Film deleting machine
APPLICATION
This equipment is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily.
Main feature
1.Two-way glass access
2.Auto measure the size and the thickness
3.Auto distinguish coating side of low-e glass(optional)
4.Auto-modified function
5.The pressure of edge deleting is stable and adjustable
6.Safety protection device auto-dedusting function
7.PLC control system,touch screen interface
8.Six servo control systems
9.Control system intelligently memorize batch processing function
Main technical parameter
| Transmission speed | 2~29m/min |
| Edge finish speed | 2~29m/min |
| Glass thickness | 3~15mm |
| Diameter of grinding wheel | 200mm |
| Width of grinding wheel | 10/12/15mm |
| Grinding wheel speed | 0~3000r/min |
| Min.Glass | 400×400mm |
| Max. Glass | 2500×4000mm |
| Conveyor height | 500mm |
| Total air consumption | 100L/ min |
| Total weight | 3700KG |
| Dimensions | 9700×2500×3400mm |
