Product Details:
|
| Machine Name: | Desiccant Filling Machine | Using Way: | Filling Dryer Into IG |
|---|---|---|---|
| Warranty: | 1 Year | Control: | PLC |
| Glue Type: | Butyl Glue | Filling Time: | Adjustable |
| High Light: | IG Glass Molecular Sieve Dryer,Insulating Glass Molecular Sieve Dryer,IG automated molecular sieve filling machine |
||

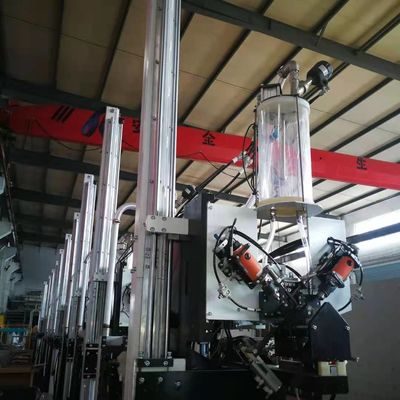

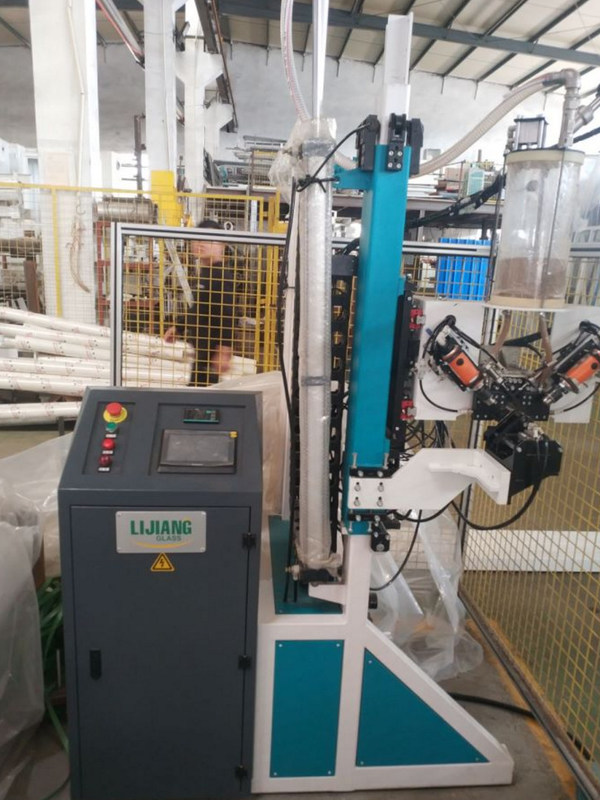

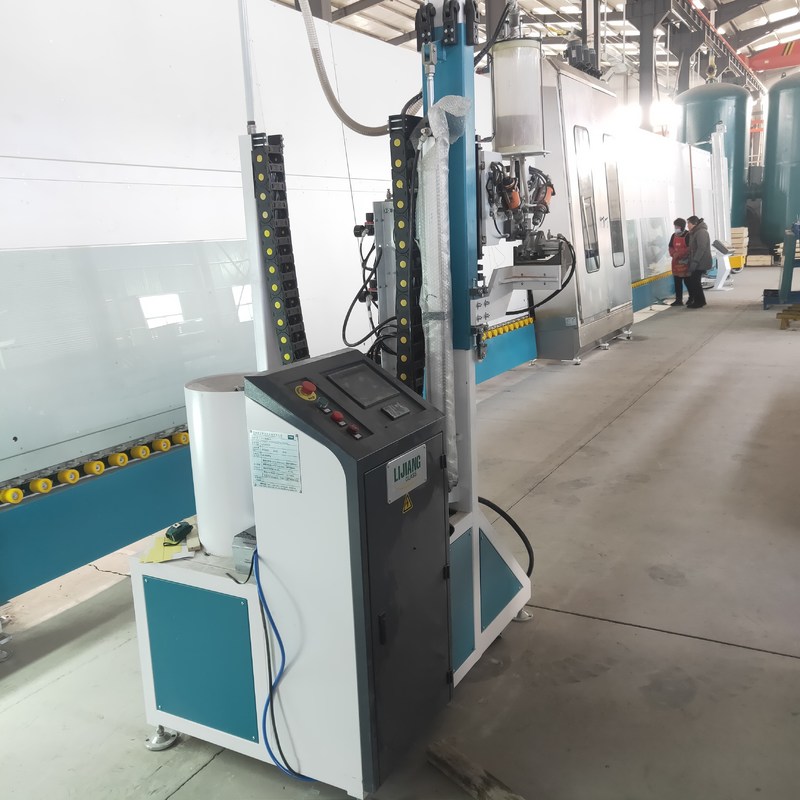

IG Glass Molecular Sieve Dryer Drilling Filling And Sealing Machine for Insulating glass processing
The automatic desiccant filling machine is a kind of auxiliary equipment for the production of insulating glass. It is intended for filling the dryer on insulating glass aluminum spacers and for use with an automatic spacing bender. Due to the formed gap that cannot be filled by traditional methods, we have therefore developed an automatic dryer filling machine for this type of spacers. The filling machine can not only fill the bent aluminum frame but also can fill aluminum spacer pins.
Air-frame processing:
The hardening of key parts adopts high quality surface coating and material processing to ensure reliable and durable components. The cell adopts a high quality orange peel finish.
Control System: Adopt German Siemens PLC processing control component.
Electric elements: Only imported or higher quality household electrical items should be used on the equipment, such as AUTONICS. All of these items have been carefully selected and inspected, and only those that have passed strict tests can be used in the manufacture of the equipment. solenoid valve, cylinder and pneumatic components adopt all items of prestigious Airtac company or first-rate domestic company.
Dimensions: Minimum 250 x 300mm;
Maximum 2000 x 2000 mm
Molecular sieve diameter: Φ0.5 ~Φ0.8 mm.
Molecular sieve diameter: Φ1.0~Φ1.5 mm (special customization)
Main feature
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5-0.9mm or 1.0-1.5mm
• Simple and visible touch screen interface
• The height of the machine can be adjusted to the size of the spacer frame
• Automatic loading and filling of the molecular sieve
• Double tubes for unloading to increase the filling speed
• The filling time can be adjusted

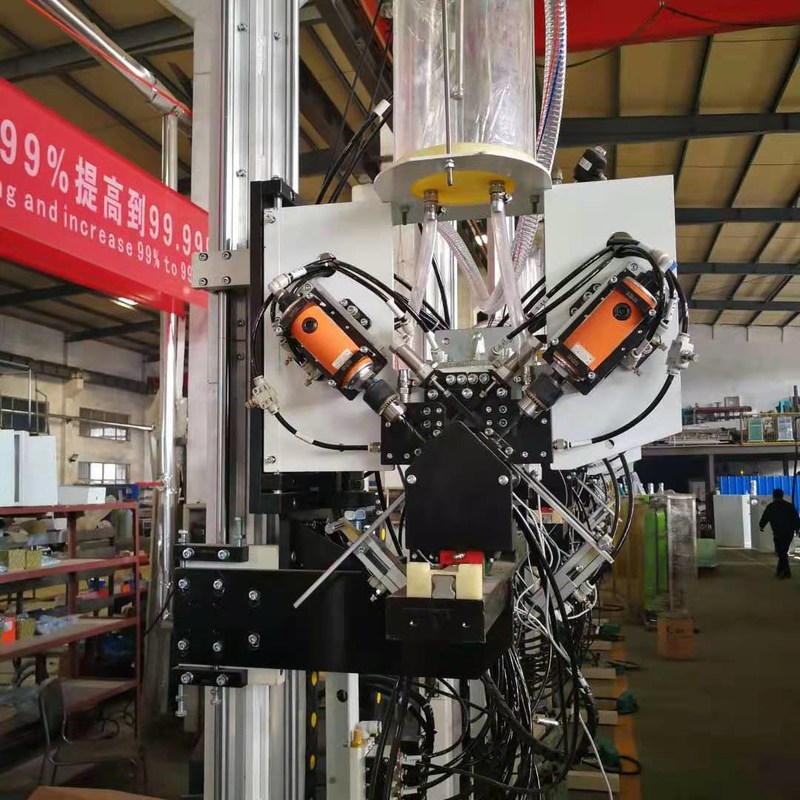

• Automatic drilling, filling and sealing
• Basic parts are imported brands
• Using large plastic barrel, save feeding time and improve efficiency (optional)
• Machine head protection device (optional)
• Infill arch frame (optional)
• Fill a large particle molecular sieve
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
| LJGZ2020 Automatic Desiccant Filling machine | ||||
| Number | Name | Model | Quantity | Remarks |
| 1 | Mainframe | LJGZ2020 | 1 | |
| 2 | Machine clothing | 1 | ||
| 3 | instructions | 1 | ||
| 4 | Certificate of approval | 1 | ||
| 5 | Heater | GBZ02-01-03-09 | 1 | |
| 6 | Resistance thermometer sensor | Pt100 | 1 | |
| 7 | Piston ring | GZB02-01-03-07-02.001 | 1 | |
| 8 | Cross recessed | M8*10 | 15 | |
| 9 | Drill head | Ø4.2 | 2 | |
| 10 | Gas drilling wrench | 1 | ||
| 11 | Pneumatic | ASL6-M5,ASL6-1,APL6-2,ASL6-2,APC6-2 | 1 | |
| 12 | Allen wrench | 1 | Single machine | |
| 13 | One head screwdriver2# | 1 | Single machine | |
| 14 | Cross recessed | M8*20,M6*20 | 10 pieces each |
|
| 15 | Spring washer | 8,6 | 10 pieces each | |
| 16 | Open cover wrench | GZB-209-00 | 1 | |
| code:LJGZ2020 | packing inspector | Inspector: | ||
Related product of LIJIANG GLASS
Process flow:
Washing→Filterpressing→Crushing→Forming→Health maintenance→Drying→Activation
Technical Parameter:
| Model | 5A Molecular Sieve | |||
| Nominal pore diameter | 5 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
| 8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
| Bulk density (g/ml) | ≥0.66 | ≥0.66 | ≥0.64 | ≥0.64 |
| Crushing strength (N/PC) | ≥30.0 | ≥70.0 | ≥30.0 | ≥50.0 |
| Size ratio up to grade (%) | ≥96.0 | ≥96.0 | ≥96.0 | ≥94.0 |
| Static H2O adsorption (%) | ≥21.0 | ≥21.0 | ≥20.5 | ≥20.5 |
| Static Hexane adsorption (%) | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 |
| H2O content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |
Molecular sieve 5A has an effective pore opening of 5 angstroms (0.5 nm).
It will adsorb molecules with a kinetic diameter of fewer than 5 angstroms and exclude larger ones.
It has high selective adsorption and fast adsorption speed.
Typical application:
a) The different sizes of devices O2, H2, CO2, and other PSA gases.
b) Separation of normal paraffin and isoparaffin.
c) Air purification, dehydration, and removal of carbon dioxide.
d) Drying of natural gas, dehydration, and desulfurization.
Characteristics: High strength, High adsorption capacity, Particle uniformity
Storage: room temperature; Relative humidity is not more than 90%; Should not be directly exposed to the air; Avoid water,acid, and alkali.
Regeneration:
1. Moisture removal: depending on the temperature, pressure and water content of the gas.In general,the dry gas at 200-350℃ passes through the molecular sieve bed at a pressure of 0.3-0.5kg/cm2 for 3-4 hours, bringing the outlet temperature to 110-180℃ and cooling.
2. Removal of organic matter:replace organic matter with water vapor,and then remove water.
Packaging Details
Paper bag, super sack, steel drum with a wooden pallet for zeolite 3a
Port: Qingdao,Tianjin, Shanghai, etc.
Lead Time:7-10 days after receiving your deposit or your workable LC
