Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing

Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing

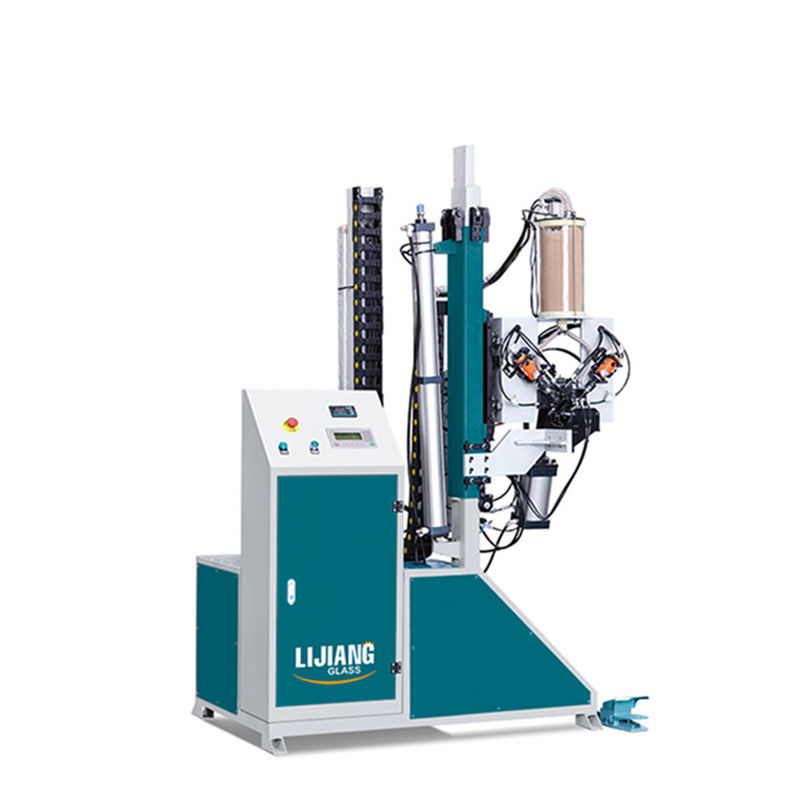

Large Image :  Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJGZ2020A
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: $7,500 each
Packaging Details: Wooden boxes ，containers
Delivery Time: 15 to 20 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Contact Now

Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing

Description
Voltage: 220V Power: 1.5KW
Dimension(L*W*H): 1600mm*1300mm*3600mm Glass Thickness: 3-15mm
Marketing Type: New Product 2020
High Light:

Glass Processing Melecular Desiccating Machine

,

Automatic Punching Melecular Desiccating Machine

,

Complete Sealing Desiccating Machine

Molecular Sieve Filling Machine

Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 0

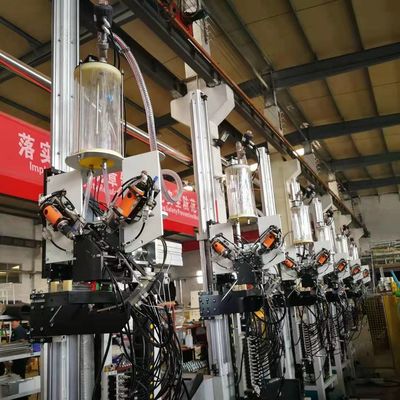

LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 1
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 2

1. Equipment advantages

Adopt Siemens PLC control system Touch screen interface, easy operation The height can be adjusted according to the size of spacer frame Automatically loading and replenish desiccant Filling time can be adjusted Automatically drilling, filling and sealing - Core parts are imported brands
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 3

2. Technical data

Aluminum specifications:6A-27A Germany Siemens PLC control system Air source:≥0.65MPa Touching screen interface, simple and visible Total power:AC220V50Hz15KW The height can be adjusted according to the size of spacer frame Molecular sieve diameter needed Automatically loading and replenish desiccant 0.5-0.9mm Filling time can be adjusted Dimension:1600mm1300mm3600mm Automatically drilling, filling and sealing
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 4

3. Technical data

Aluminum specifications:6A-27A Germany Siemens PLC control system Air source:≥0.65MPa Touching screen interface, simple and visible Total power:AC220V50Hz15KW The height can be adjusted according to the size of spacer frame Molecular sieve diameter needed Automatically loading and replenish desiccant 0.5-0.9mm Filling time can be adjusted Dimension:1600mm1300mm3600mm Automatically drilling, filling and sealing
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 5
Max.aluminum size
2000mm*2000mm
Min.aluminum size
300mm*250mm
Glass thickness
3-15mm
IG thickness
50mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
aluminum specifications
6A-27A
Total power
220v 50hz 1.5kw



Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 6

Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 7



LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
Glass Processing Melecular desiccating machine Automatic Punching Complete Sealing 8
