Product Details:
|
| Machine Name: | Desiccant Filling Machine | Using Way: | Filling Dryer Into IG |
|---|---|---|---|
| Warranty: | 1 Year | Control: | PLC |
| Glue Type: | Butyl Glue | Filling Time: | Adjustable |
| High Light: | IG Glass Molecular Sieve Dryer,Molecular Sieve Dryer Filling Machine,IG Glass desiccant inserter machine |
||

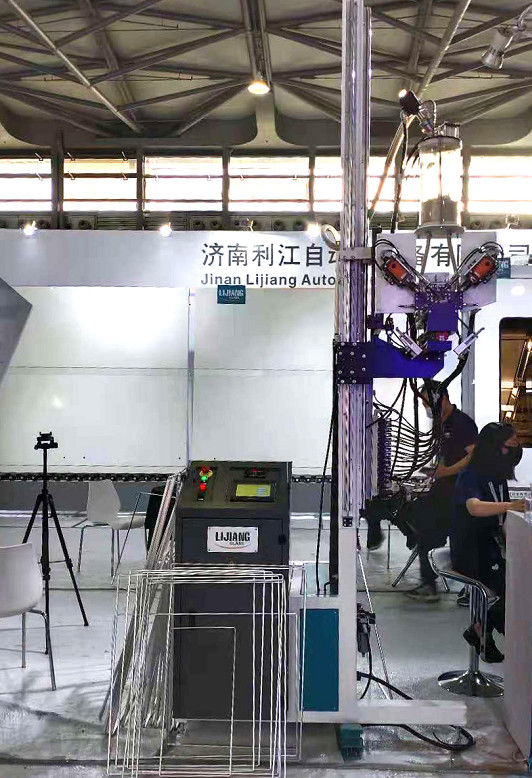

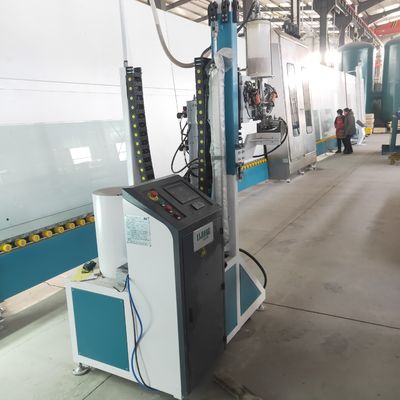

Automatic molecular sieve dryer drilling filling and sealing machine
Automatic desiccant filling machine is a kind of auxiliary equipment for the production of insulating glass. It’s for filling desiccant to aluminum spacers of insulating glass and use together with automatic spacer bending machine. Due to the formed spacer cannot be filled by traditional methods, so for this kind of spacers, we developed Automatic desiccant filling machine. The filling machine not only can fill bent aluminum frame, but also can fill pins aluminum spacers.
Air-frame processing:Hardening on the key parts adopt high quality material and surface coating processing to ensure reliable and durable components. Airframe adopt high quality orange-peel finish.
Control system: adopt German Siemens PLC processing control component.
Electric elements: Only imported or top-grade domestic electric elements should be used on the equipment,such as AUTONICS. All these elements were carefully selected and inspected, and only those passed strict tests can be used for equipment fabrication. solenoid valve,cylinder and the Pneumatic components all adopt the elements of the prestigious company Airtac or top-grade domestic company.
Dimensions: Minimum 250 x 300mm;
Maximum 2000 x 2000 mm
Molecular sieve diameter: Φ0.5 ~Φ0.8 mm.
Molecular sieve diameter: Φ1.0~Φ1.5 mm (special customization)
Main feature
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
| LJGZ2020 Automatic Desiccant Filling machine | ||||
| Number | Name | Model | Quantity | Remarks |
| 1 | Mainframe | LJGZ2020 | 1 | |
| 2 | Machine clothing | 1 | ||
| 3 | instructions | 1 | ||
| 4 | Certificate of approval | 1 | ||
| 5 | Heater | GBZ02-01-03-09 | 1 | |
| 6 | Resistance thermometer sensor | Pt100 | 1 | |
| 7 | Piston ring | GZB02-01-03-07-02.001 | 1 | |
| 8 | Cross recessed | M8*10 | 15 | |
| 9 | Drill head | Ø4.2 | 2 | |
| 10 | Gas drilling wrench | 1 | ||
| 11 | Pneumatic | ASL6-M5,ASL6-1,APL6-2,ASL6-2,APC6-2 | 1 | |
| 12 | Allen wrench | 1 | Single machine | |
| 13 | One head screwdriver2# | 1 | Single machine | |
| 14 | Cross recessed | M8*20,M6*20 | 10 pieces each |
|
| 15 | Spring washer | 8,6 | 10 pieces each | |
| 16 | Open cover wrench | GZB-209-00 | 1 | |
| code:LJGZ2020 | packing inspector | Inspector: | ||
Related product of LIJIANG GLASS
Process flow:
Washing→Filterpressing→Crushing→Forming→Health maintenance→Drying→Activation
Technical Parameter:
| Model | 5A Molecular Sieve | |||
| Nominal pore diameter | 5 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
| 8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
| Bulk density (g/ml) | ≥0.66 | ≥0.66 | ≥0.64 | ≥0.64 |
| Crushing strength (N/PC) | ≥30.0 | ≥70.0 | ≥30.0 | ≥50.0 |
| Size ratio up to grade (%) | ≥96.0 | ≥96.0 | ≥96.0 | ≥94.0 |
| Static H2O adsorption (%) | ≥21.0 | ≥21.0 | ≥20.5 | ≥20.5 |
| Static Hexane adsorption (%) | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 |
| H2O content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |

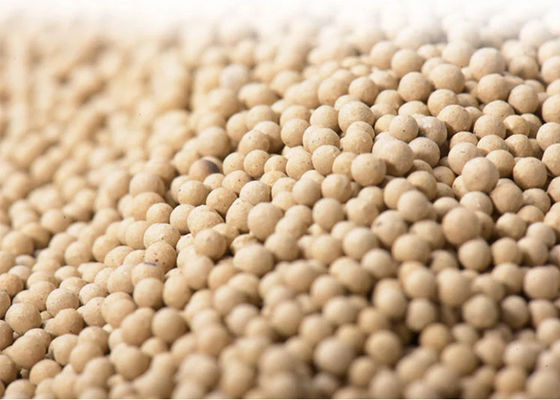

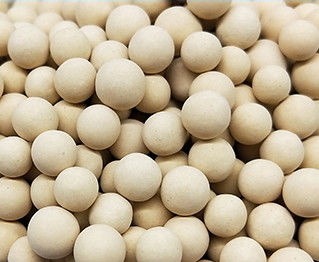

5A Molecular Sieve, has an effective pore opening of 5 angstroms(0.5nm).
It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.
It has high select adsorption and fast adsorption speed.
Typical Application:
a) The various sizes of O2, H2, CO2 and other gas PSA devices.
b) Separation of normal paraffin and isoparaffin.
c) The purification of air, dehydration and carbon dioxide removal.
d) The drying of natural gas, dehydration and desulphurization.
Characteristics:High strength,High adsorption capacity,Particle uniformity
Storage:room temperature;Relative humidity is not more than 90%;Should not be directly exposed to the air;Avoid water,acid and alkali.
Regeneration:
1. Moisture removal:depending on the temperature,pressure and water content of the gas.In general,the dry gas at 200-350℃ passes through the molecular sieve bed at a pressure of 0.3-0.5kg/cm2 for 3-4 hours,bringing the outlet temperature to 110-180℃ and cooling.
2. Removal of organic matter:replace organic matter with water vapor,and then remove water.
Packaging Details
Paper bag, super sack, steel drum with wooden pallet for zeolite 3a
Port:Qingdao,Tianjing, Shanghai, etc.
Lead Time:7-10 days after receiving your deposit or your workable LC
