Big Barrel Automatic Desiccant Filling Machine For Insulating Glass Processing

Desiccant Filling Machine Liquid Filling Machine For Insulating Glass Processing

Insulating glass processing machines :

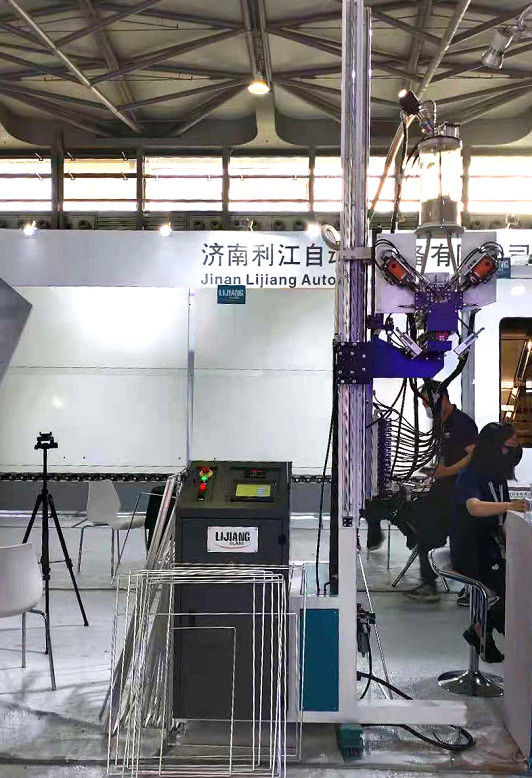

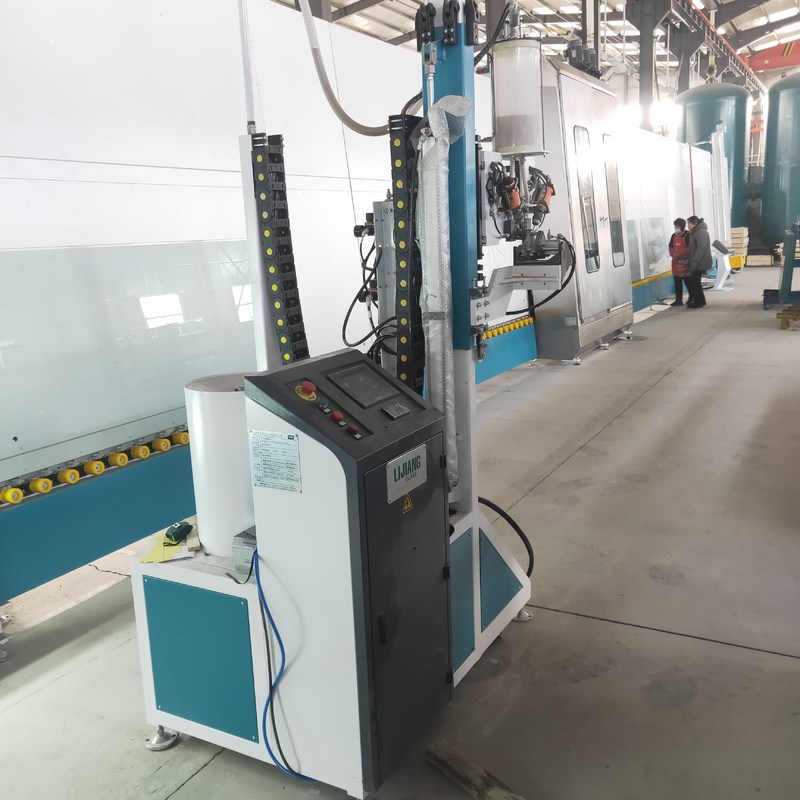

Desiccant filling machine : Desiccant filling machine with touch screen / manual molecular sieve filling machine

Optional functions:

1. Big barrel (200L) for molecular sieve material

2. Protection device for machine head

3. Filling frame with arc-corner, the maximum radium size is 120mm

4. Large size for molecular sieve, from 1.0 - 1.5mm

5. Double heads

Main features:

• Adopt Siemens PLC control system

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Fill large particle molecular sieve

LIJIANG factory :

Customers layout :

Company introduce:

LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.

LIJIANG GLASS's products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.

In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.

In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.

Our corporate vision:

To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
