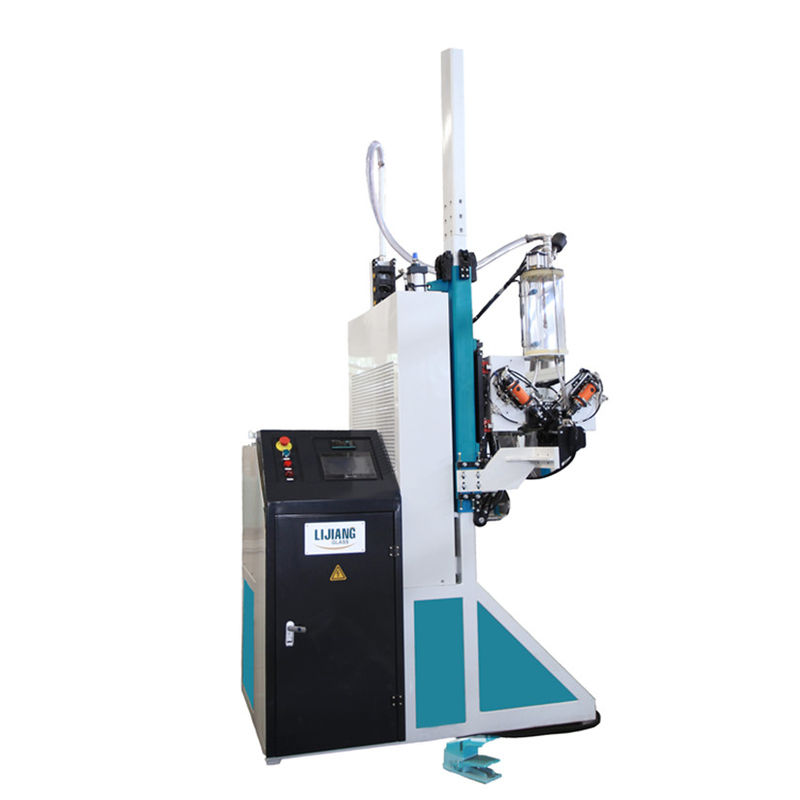

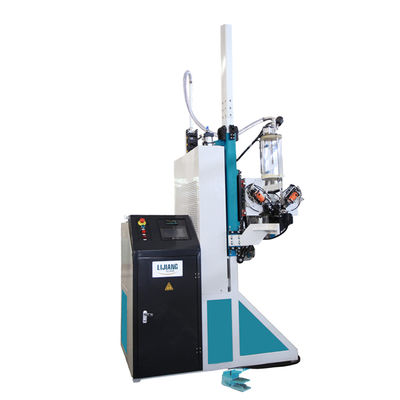

Hollow Glass Automatic Desiccant Filling Machine Insulating Glass Production Line

Large Image : Hollow Glass Automatic Desiccant Filling Machine Insulating Glass Production Line

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000
Model Number:	LJGZ2020 Automatic Desiccant Filling Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated Price
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Hollow Glass Automatic Desiccant Filling Machine Insulating Glass Production Line

Description

Name:	Hollow Glass Molecular Sieve Filling Machine	Function:	Desiccant Filling
PLC:	Siemens	Filling Aluminum Frame:	300mm*250mm
Min Spacer Frame:	150-300mm	Aluminum Spacer Size:	6A-27A
Air Pressure:	0.65mpa
Highlight:	Hollow Glass Automatic Desiccant Filling Machine , Insulating Glass Automatic Desiccant Filling Machine , Desiccant Filler Insulating Glass Production Line

Automatic spacer bar bending machine

Products Description

Desiccant filling machine

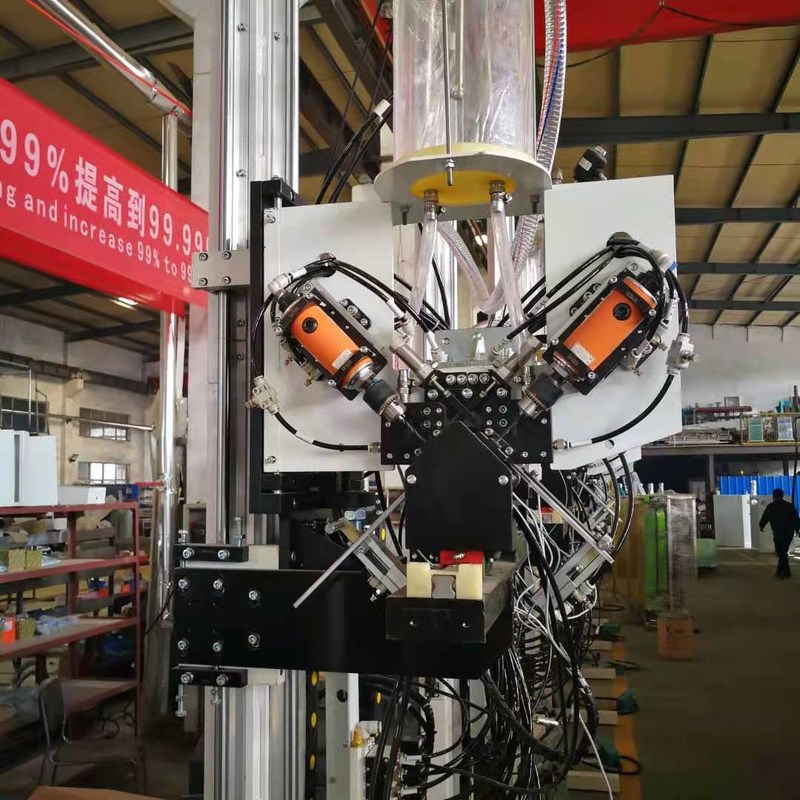

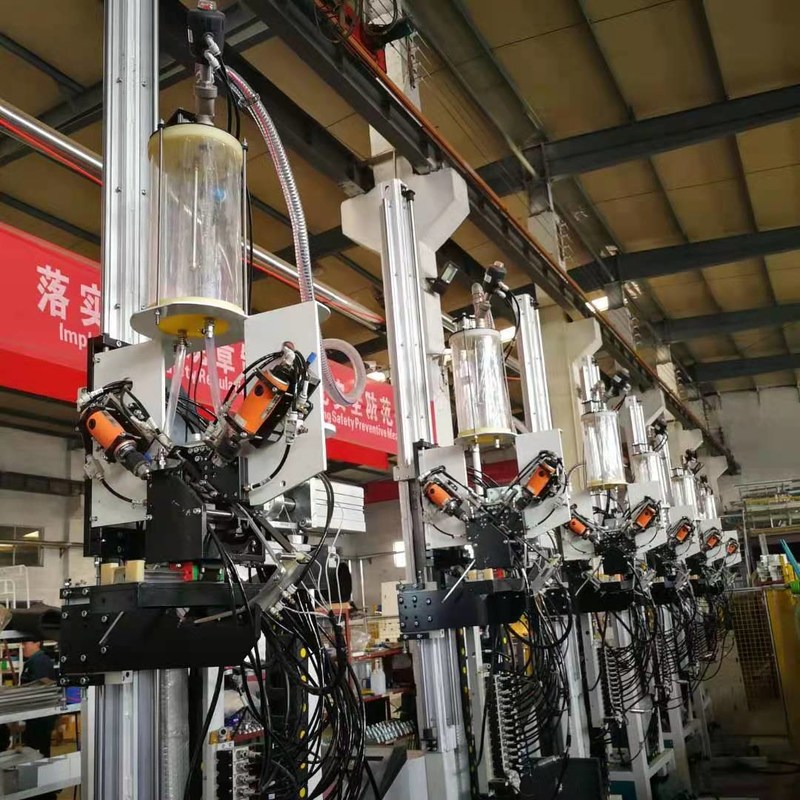

Desiccant filling machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system of Desiccant filling machine adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant filling machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

Manufacturing Technique

Item.	Spec.
Filling aluminum frame’s maximum size	2000mm*2000mm
Filling aluminum frame’s minimal size	150*300mm
Article aluminum specifications	5.5-24mm
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1KW
Molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm1100mm3650mm
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

Name	Brand
PLC	German SIEMENS
Low voltage electrical apparatus	German SIEMENS
sensor	Korea AUTONICS
guide	Taiwan TBI
triplet	TAIWAN AIRTAC
Solenoid valve	TAIWAN AIRTAC
Gas driller	Taiwan BOA
Switch power	Taiwan TEND
GUIDE	Taiwan TBI
Solenoid valve	Taiwan AIRTAC
Sensor	KOREA AUTONICS

Advantages & Features

Main Feature

The filling height of can be adjusted according to the size of spacer frame Filling time can be adjusted Desiccant auto loading and replenish Auto drilling, filling and sealing function Germany Siemens PLC control system Touching screen interface, simple and visible Adding glue way is safe and easy Machine can fill the arc frame.(optional function) Can fill Molecular sieve diameter 0.5-0.9mm, 1.0mm-1.5mm(optional function)

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
