Name: Auto Molecular Sieve Desiccant Filling Machine For Hollow Glass Insulated Double Glazing
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJGZ2020 Automatic Desiccant Filling Machine
Availability: InStock

Home > Products > Desiccant Filling Machine >

Auto Molecular Sieve Desiccant Filling Machine For Hollow Glass Insulated Double Glazing

Hollow Glass Desiccant Filling Machine

27A Desiccant Filling Machine

Insulating Glass Desiccant Filling Machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass Machinery

Certification:

CE & ISO9000

Model Number:

LJGZ2020 Automatic Desiccant Filling Machine

Request A Quote

Product Details

Brand Name:

Jinan Lijiang Glass

Dimension(L*W*H):

1300mm*1100mm*3600mm

Filling Aluminum Frame:

2000mm*2000mm

Filling Aluminum Frame Min:

300mm*250mm

Min Spacer Frame:

150-300mm

Aluminum Spacer Size:

6A-27A

Power:

220V 50Hz 1kw

Weight:

700Kgs

Highlight:

Hollow Glass Desiccant Filling Machine

27A Desiccant Filling Machine

Insulating Glass Desiccant Filling Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiated Price

Packaging Details

Wooden Cases Package

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

Glass Deep-processing

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

Auto Desiccant Molecular Sieve Filling Machine for Hollow Glass Insulated Glasing Double Glazing Process

Products Description

Desiccant filling machine

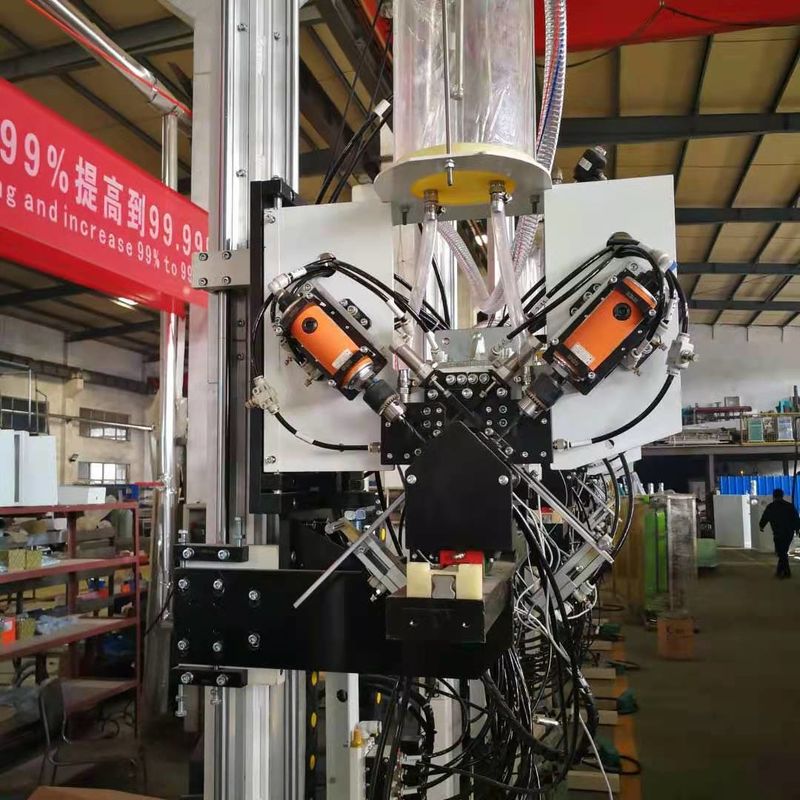

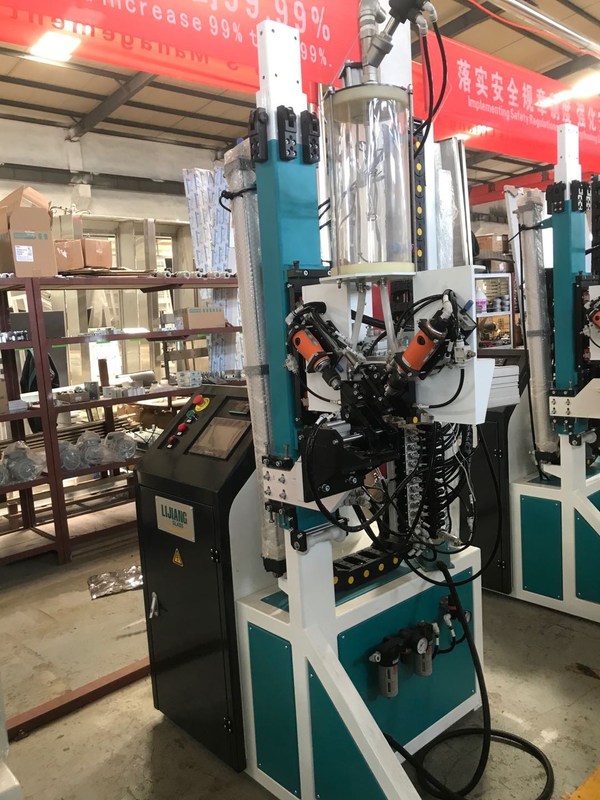

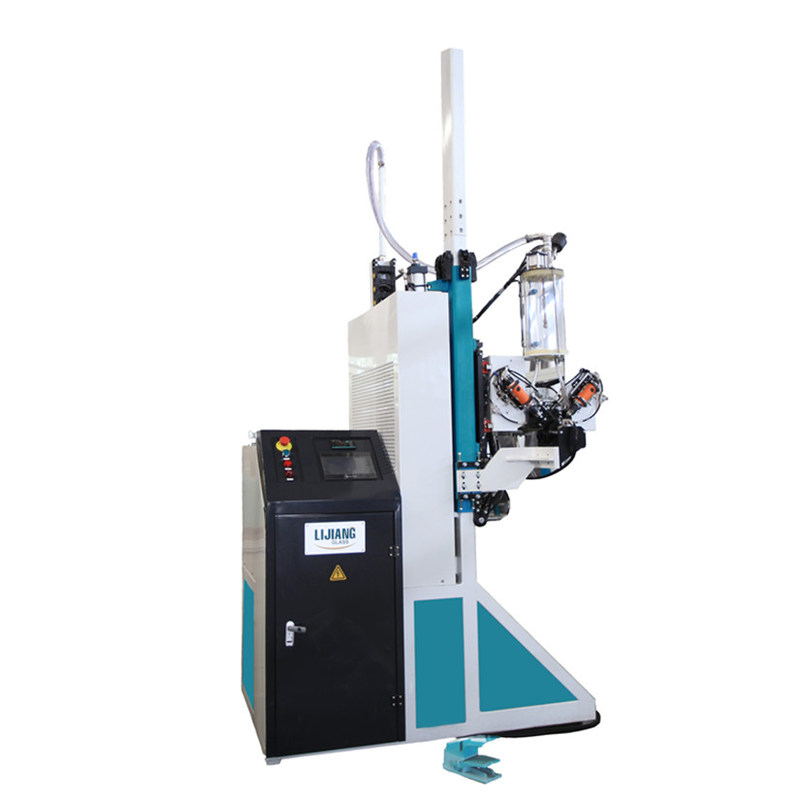

Desiccant filling machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system of Desiccant filling machine adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant filling machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

Manufacturing Technique

Item.	Spec.
Filling aluminum frame’s maximum size	2000mm*2000mm
Filling aluminum frame’s minimal size	150*300mm
Article aluminum specifications	5.5-24mm
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1KW
Molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm1100mm3650mm
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

Name	Brand
PLC	German SIEMENS
Low voltage electrical apparatus	German SIEMENS
sensor	Korea AUTONICS
guide	Taiwan TBI
triplet	TAIWAN AIRTAC
Solenoid valve	TAIWAN AIRTAC
Gas driller	Taiwan BOA
Switch power	Taiwan TEND
GUIDE	Taiwan TBI
Solenoid valve	Taiwan AIRTAC
Sensor	KOREA AUTONICS

Advantages & Features

Main Feature

The filling height of can be adjusted according to the size of spacer frame Filling time can be adjusted Desiccant auto loading and replenish Auto drilling, filling and sealing function Germany Siemens PLC control system Touching screen interface, simple and visible Adding glue way is safe and easy Machine can fill the arc frame.(optional function) Can fill Molecular sieve diameter 0.5-0.9mm, 1.0mm-1.5mm(optional function)

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
