Product Details:
|
| Production Name: | Automatical Molecular Sieve Filling Machine | Faction: | Automatically Drilling,filling And Sealing |
|---|---|---|---|
| Application: | Double Glazing Glass Making | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
| Filling Aluminum Frame's Minimal Size: | 300mm*250mm | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| Optional: | Big Barrel | Weight: | 300kg |
| High Light: | Double Glass Auto Molecular Sieve Filling Machine,IG Glass Auto Molecular Sieve Filling Machine,7A Automatic Molecular Sieve Filling Machine |
||

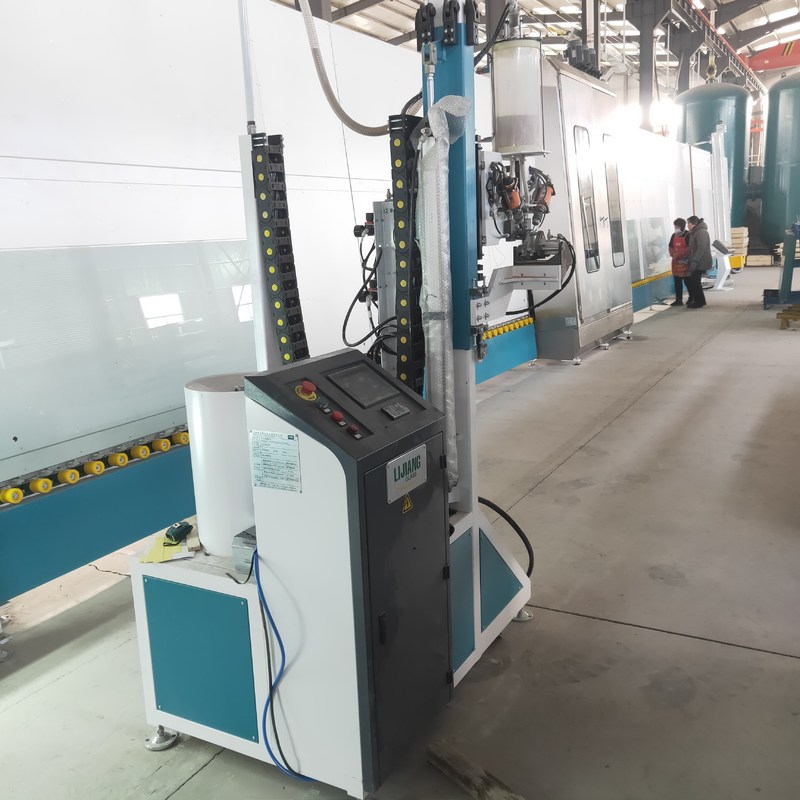

Special Advantage of Automatic molecular sieve filling machine
•Automatic desiccant filling machine adopt Siemens PLC control system,stable performance
•Automatically drilling,filling and sealing
•Touch screen interface, simple and visible

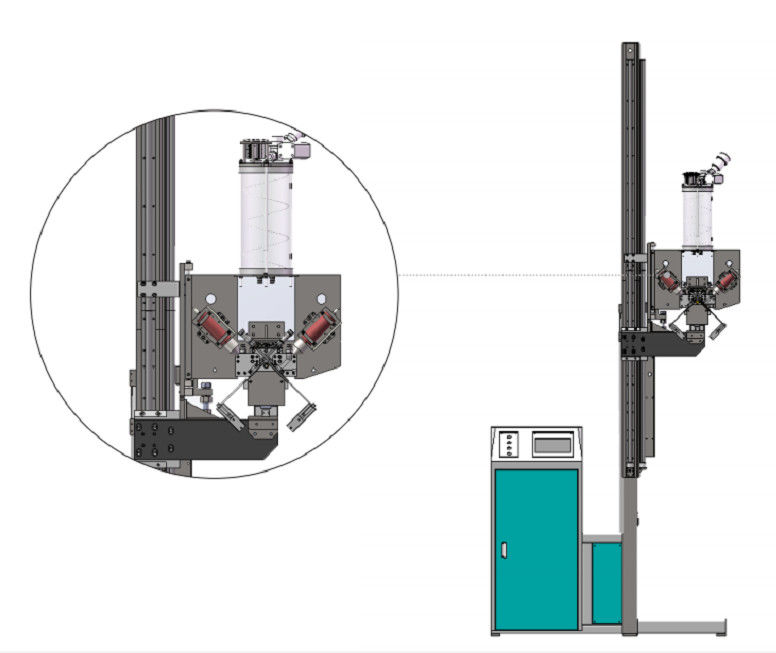

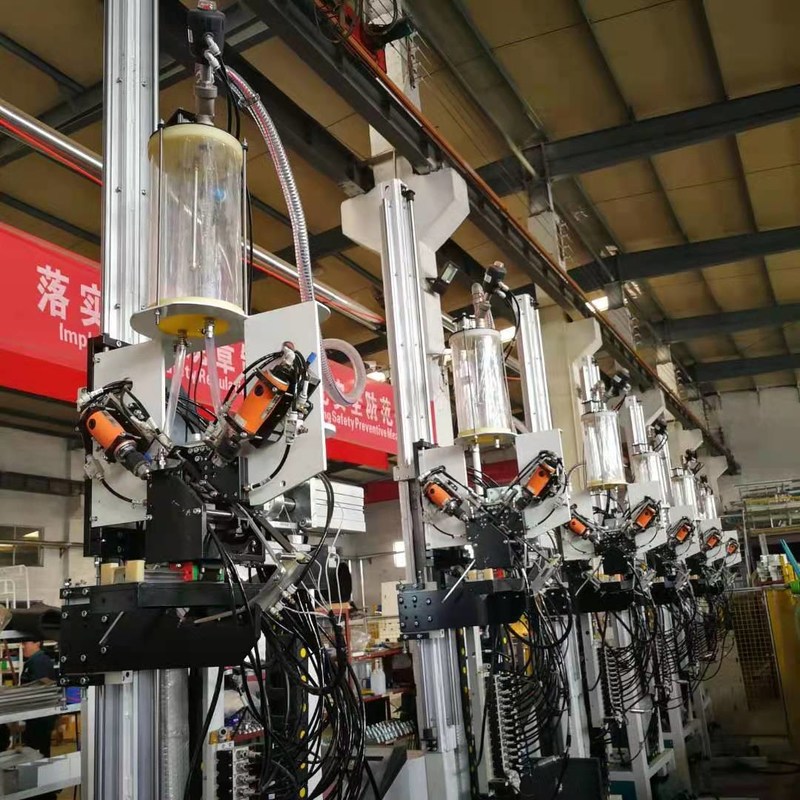

Details of Automatic Molecular sieve Filling Machine
1.Auto drilling, filling and sealing function,Automatically loading and replenishmolecular sieve
2.Germany SiemensPLC controlsystem,stableperformance,Electrical component are all Germany Brand-Siemens.
3. Adopt industrial plastic spraying treatment of all racks,Protection device for machine head.
4.Desiccant filling Machine height can be adjusted according to the size of spacer frame
5.All the electrical wires have the ID number,it can match with specification , also it will be convenient for the further communication in the after sales service .
6.Desiccant automatically loading from the Materials bucket.Automatically loadingand replenish molecular sieve
Technical parameter of Automatic Molecular sieve filling machine
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-26.5mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1050mm*3650mm |
