Product Details:
|
| Production Name: | Automatical Molecular Sieve Filling Machine | Faction: | Automatically Drilling,filling And Sealing |
|---|---|---|---|
| Application: | Double Glazing Glass Making | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
| Filling Aluminum Frame's Minimal Size: | 300mm*250mm | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| Optional: | Big Barrel | Weight: | 300kg |
| High Light: | Automated Molecular Sieve Desiccant Filling Machine,0.5mm Desiccant Filling Machine,0.9mm Desiccant Filling Machine |
||

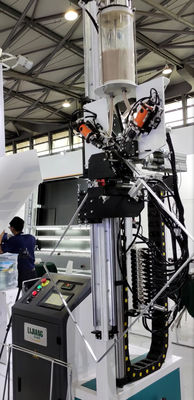

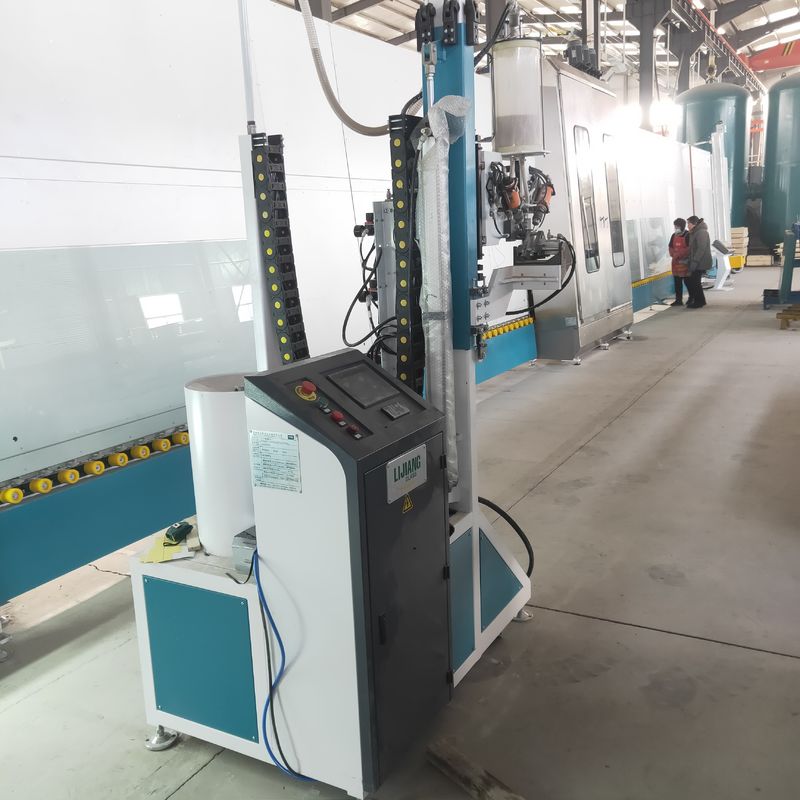

Automatic molecular sheave filling machine Adopting Japan ANCHUAN servo control system with stable performance, glass size, adhesive depth, adhesion speed can be automatically measured by linear adjustment, glass is coated with silicone, glass corners There are no bubbles and the surface is smooth. Large plastic barrels are optional, saving feeding time and improving efficiency.
Advantage of Automatic molecular sieve filling machine
• The automatic desiccant filling machine adopts a Siemens PLC control system for stable performance.
• Automatically drill, fill and seal
• Touch screen interface, simple and visible
・ Height can be adjusted according to the size of the spacer frame.
• Automatically load and replenish molecular sieves
• Double tube for unloading to increase filling speed
• Adjustable filling time
• Molecular sieves can be 0.5-0.9 mm or 1.0-1.5 mm in size
• Core parts are imported brands
• Machine head protection (optional) • Filled arc frame (optional)
• Use large plastic barrels to save feeding time and improve efficiency (optional)
• Fill large particle molecular sieves
• 1.0-1.5mm size, large particle molecular sieve
• With guide rail lift device is optional

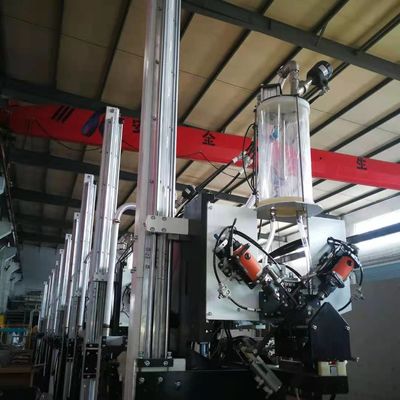

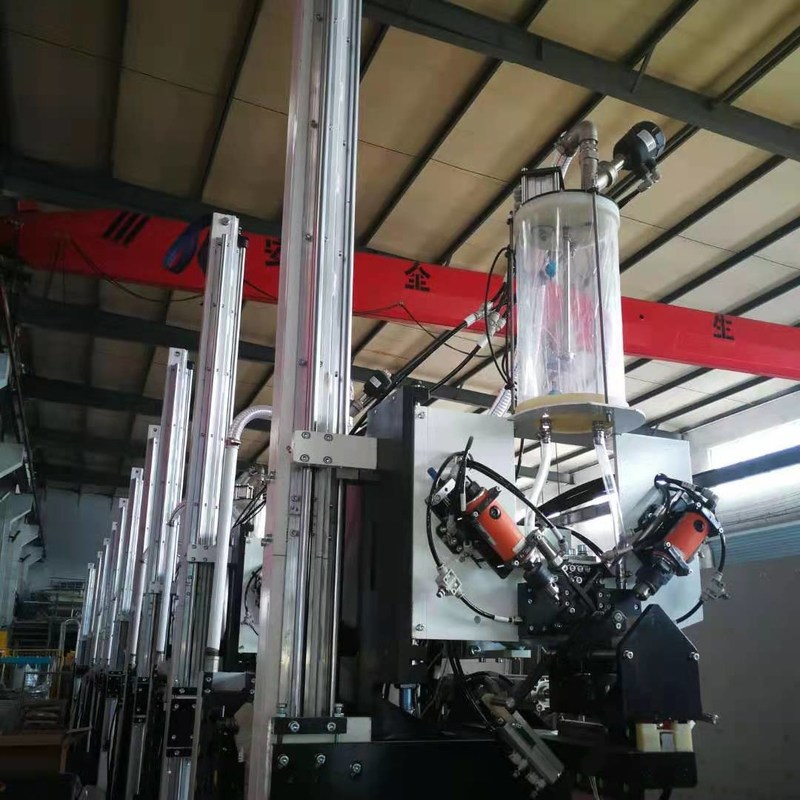

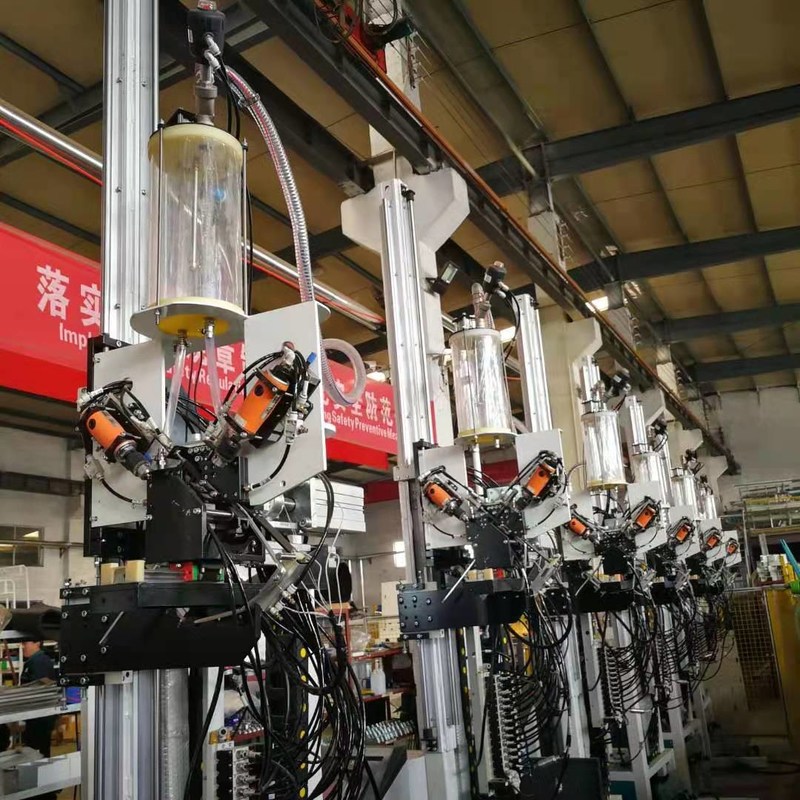

Details of Automatic Molecular sieve Filling Machine
1.Auto drilling, filling and sealing function,Automatically loading and replenishmolecular sieve
2.Germany SiemensPLC controlsystem,stableperformance,Electrical component are all Germany Brand-Siemens.
3. Adopt industrial plastic spraying treatment of all racks,Protection device for machine head.

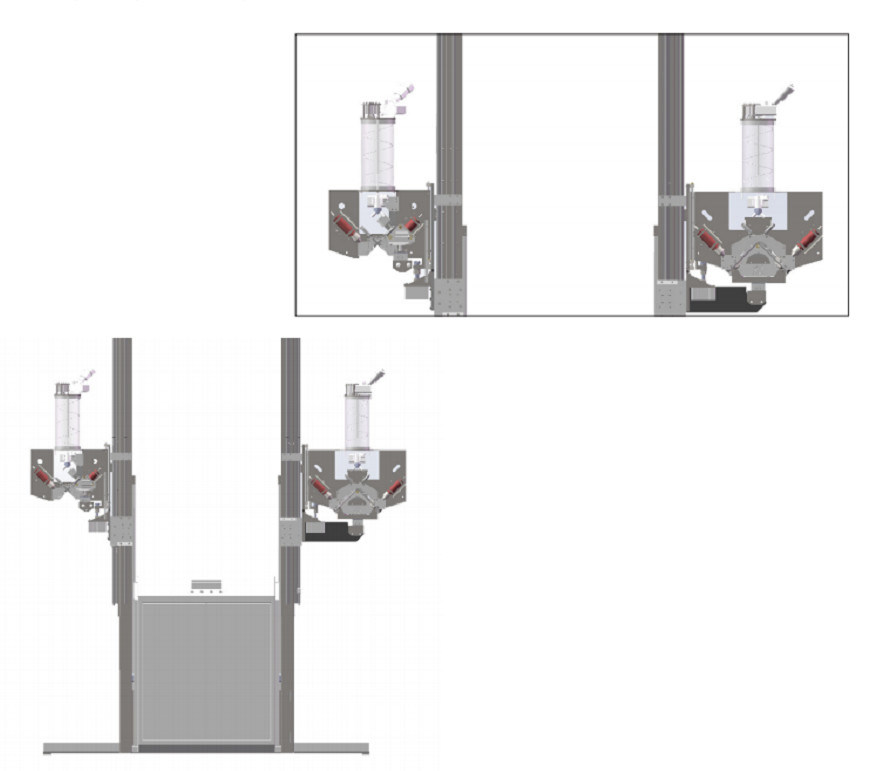

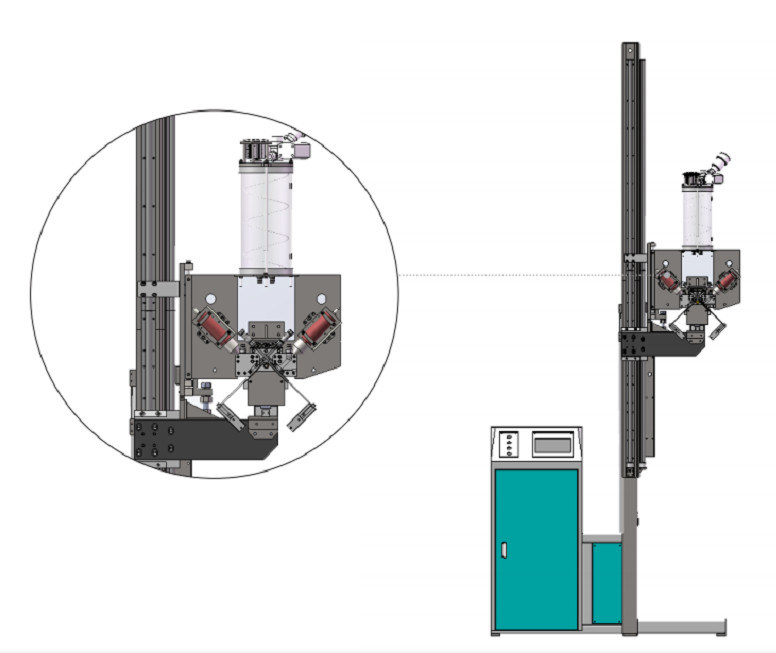

4.Desiccant filling Machine height can be adjusted according to the size of spacer frame
5.All the electrical wires have the ID number,it can match with specification , also it will be convenient for the further communication in the after sales service .
6.Desiccant automatically loading from the Materials bucket.Automatically loadingand replenish molecular sieve
Technical parameter of Automatic Molecular sieve filling machine
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-26.5mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1050mm*3650mm |
Related products
Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Minimum and maximum glass sizes are optional
• Uses 8 servo motors
• Adopted Japan Servo Control System with stable performance
• Linear adjustment automatically measures glass size, glue depth and glue speed
• Uses a timing belt to maintain smooth transport in the correct position
• Spares are manufactured with high standardization and precision, allowing the machine to be used for long periods of time.
• The corners of the glass are bubble-free, the surface is smooth and does not need to be.
• Fully automatic and highly efficient machine
• Automatically repairs glass corners on beautiful surfaces
• Smooth transportation without scratches or contamination
• Single-function parts have manual functions and are easy to adjust
• Can coat more than 8 types of molded glass including semicircles. Trapezium. parallelogram. Circular. Polygon etc. (optional)
• Completely seal the stepped glass at once (optional)
• Stepped IG can be sealed on 4 sides (optional)
• Adopts a double pump device that uses two different sealants such as silicone, polysulfide, and silicone structural sealant (optional)
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000*3500mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
Vertical Low-E Glass Edge Deletion Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
|
Max. glass processing size |
2500*4500mm |
|
Min. glass processing size |
400*280mm |
|
Glass thickness |
3-15mm |
|
Diameter of grinding wheel |
200mm |
|
Conveyor height |
500mm |
|
Edge deleting width |
10-50mm |
|
Transmission speed |
1. 29m/min |
|
Edge deleting speed |
2-29m/min |
|
Abrasive wheel width |
10/12/15mm |
|
Glass thickness |
3 - 15mm |
|
Grinding wheel speed |
0~3000r/min |
|
Total air consumption |
100L/ min |
|
Air pressure |
≥0.8MPa |
|
Total power |
3P 380V 50Hz 3.35KW |
|
Dimension |
Dimensions :9700×2500×3400mm |
|
Total weight |
3700KG |
