Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

Large Image : Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

Product Details:

Place of Origin:	China
Brand Name:	LIJIANG
Certification:	CE
Model Number:	LJTB01

Payment & Shipping Terms:

Minimum Order Quantity:	Two machines
Price:	$20,000 per unit
Packaging Details:	Wooden box. container
Delivery Time:	A week
Payment Terms:	L/C, T/T
Supply Ability:	10 units per month

Contact Now

Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

Description

Max. Glass Size:	2500*2500mm	Samples:	LJTB01 , 2500*2500mm
Customization 1:	Customized Logo	Customization 2:	Customized Packaging
Production Capacity:	47m/min	Power:	5.7kw
Warranty:	1 Year, 1 Year
Highlight:	Intelligence Butyl Coating Machine , Intelligence Butyl Coating Machine , 47m/min Butyl Coating Machine

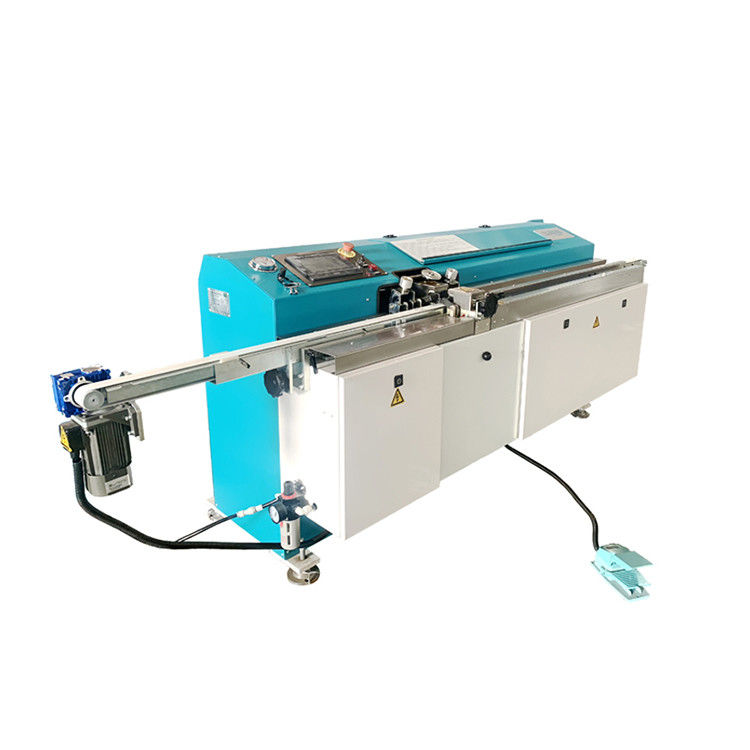

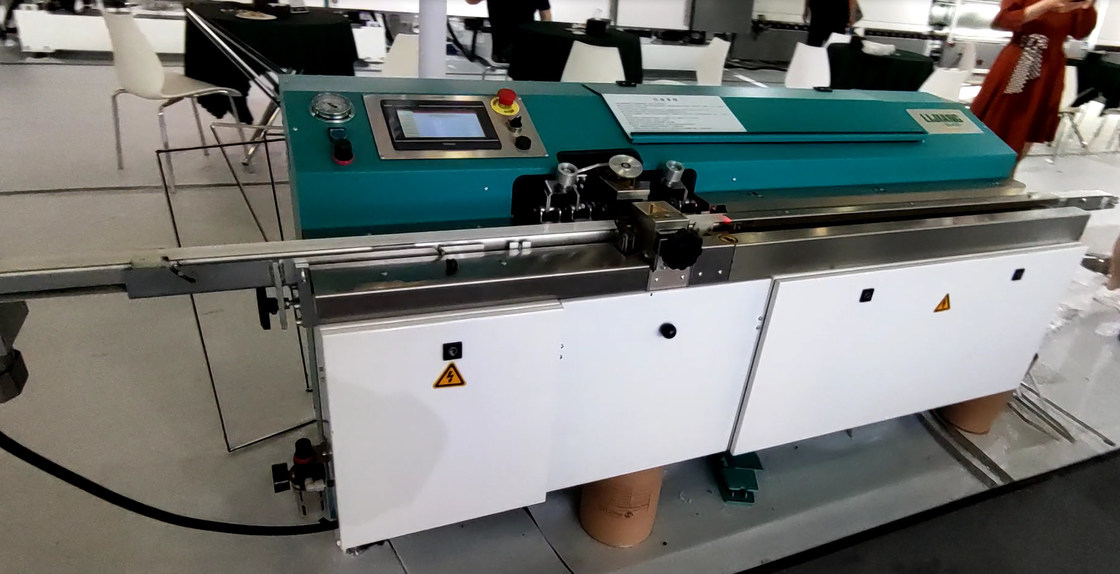

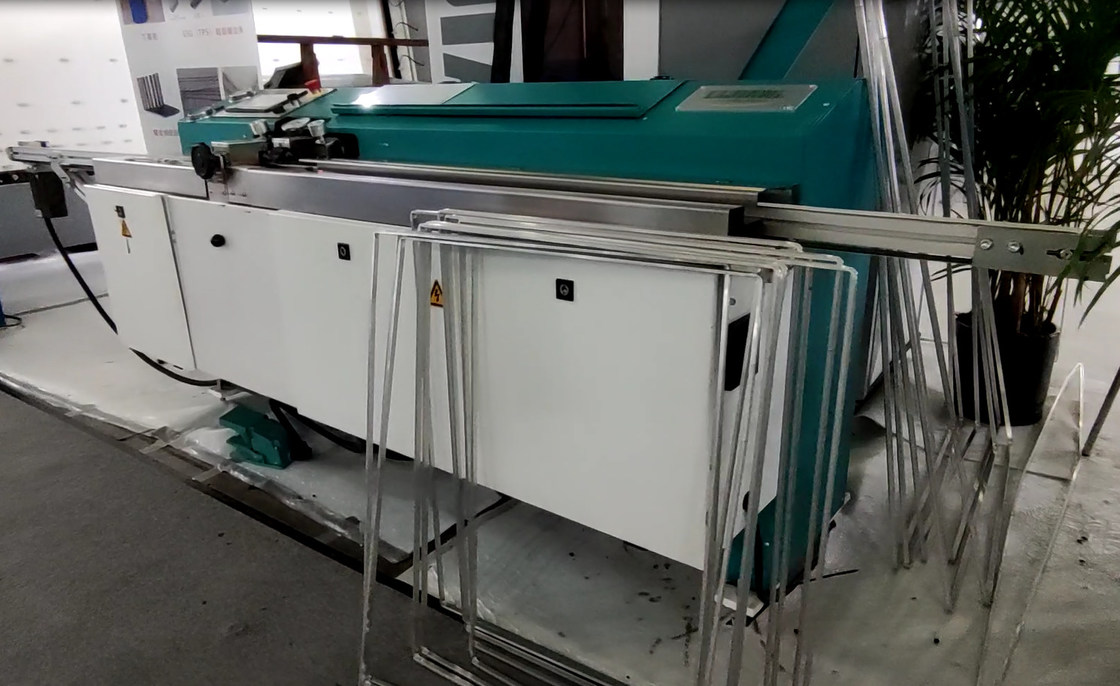

Automatic butyl extruder - LJTB01 new type coating machine

Main feature : •PLC control system, KINCO touch screen interface •Hydraulic system using German brands •Alarm system, reminding adding butyl glue •The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable •Exhaust function •Short preheating time, improve work efficiency •Coating shape frames, the roller device can be selected at will •Fast coating speed, can up to 47m/min •Stable pressure and even coating •Saving glue. The amount of glue on both sides can reach 4g / m •Big glue barrel, 200L. (Optional)

Coating head

with 7kg glue barrelcoating circle shape also
if coating decorative spacers, can up the press wheel

Changing butyl glue

it adopts the new design structure to change butyl glue, it is on the machine, not down the machine

200L big glue barrel

normal glue barrel is 7 kg, but there is another choice for 200L big glue barrel, save time

Squeeze pressure	10-18MPa
Temperature	110~140℃
Glue thickness	0.3-0.5mm
Glue width	3.5mm
Aluminum spacer width	6A - 27A
Speed	5-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5.7KW,50HZ
Dimension	2800×700×900mm(L×W×H)
weight	650kg

Company Overview

Kation-Tech founded in 2009, specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well.So far, we have independently produced Insulating Glass Production Line,Insulating Glass Sealing Robot, Spacer Bending Machine , Desiccant Filling Machine, Butyl Extruder Machine,Glass Cutting Machine, its technology and quality have reached the highest leading level in China. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.

Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!

JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD is our factory. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.
