Automatic Butyl Extruder Machine For Insulating Glass Hollow Glazing Processing

Large Image : Automatic Butyl Extruder Machine For Insulating Glass Hollow Glazing Processing

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated Price
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Automatic Butyl Extruder Machine For Insulating Glass Hollow Glazing Processing

Description

Name:	Automatic Butyl Extruder	Aluminum Spacer:	6A - 27A
Speed:	5-47m/min	Diameter Of Butyl Cylinder:	200mm
Air Pressure:	≥0.6MPa	Total Power:	380V, 5.7Kw, 50Hz
Dimension:	1600mm1300mm3600mm	Glass Thickness:	3-25mm
Color:	Personality Customization
Highlight:	Automatic Butyl Extruder Machine , Butyl Extruder Machine For Insulating Glass , Insulating Glass Butyl Adhesive Coater

Automatic Butyl Extruder Machine Butyl Adhesive Coater for Insulating Glass Hollow Glazing Processing

Product Description

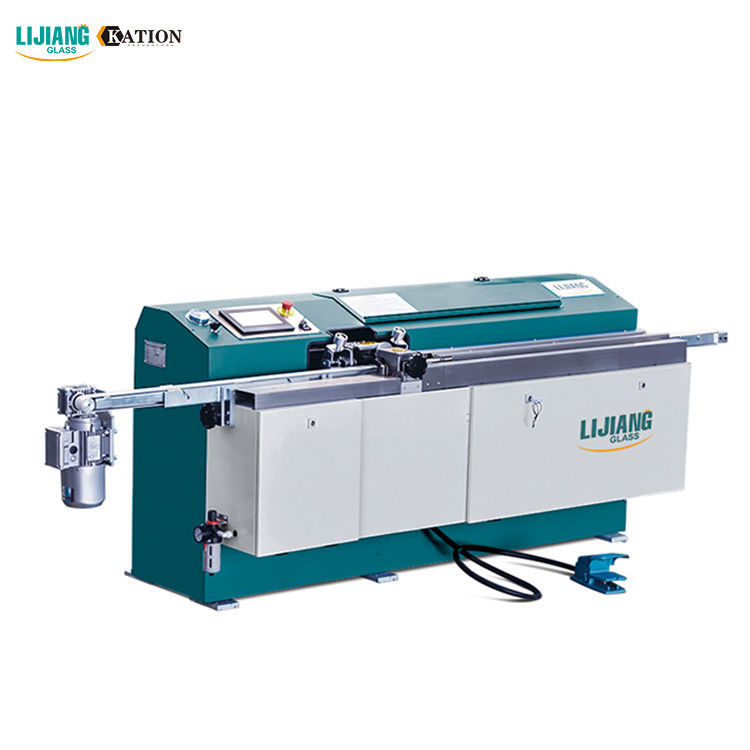

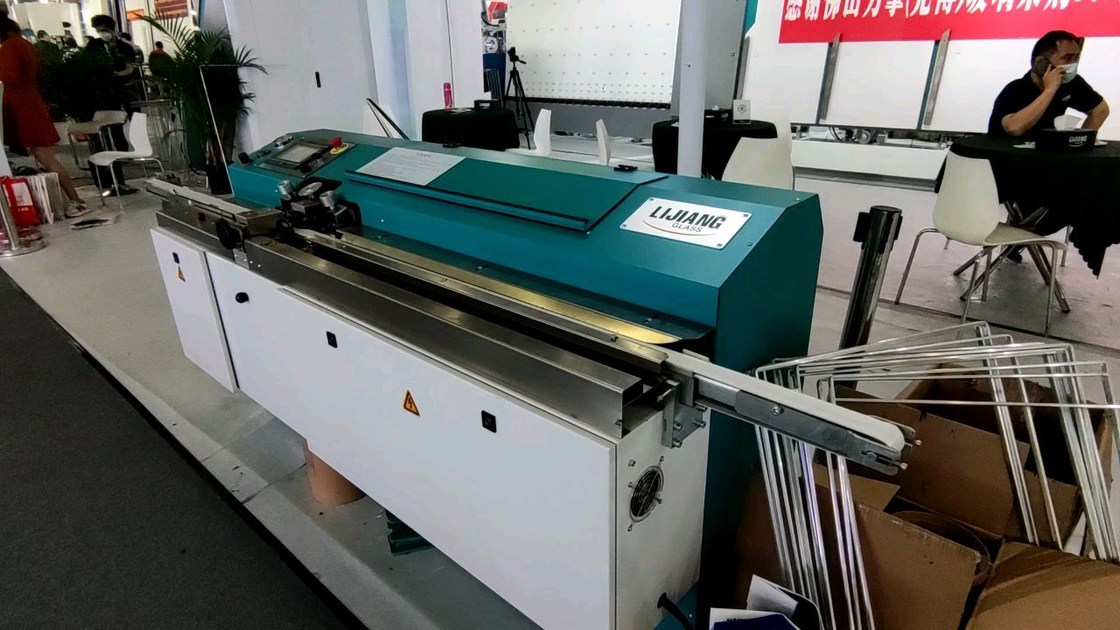

LJTB01 Butyl Extruder Machine

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment uses a large electrical control panel which makes the operation easier. The conveyor of aluminum is controlled by a frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts a pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses a vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of the squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of the squeezing head can be adjusted automatically according to different aluminum spacers. The machine has reached worldwide technology with the characteristic of complete function and stable working mode.

Main Technical Parameter

Item.		Spec.
filling aluminum frame max size		2000mm*2000mm
filling aluminum frame min size		300mm*250mm
molecular sieve diameter needed		0.5-0.9mm
Dimension		1300mm1100mm3650mm
Air source		≥0.65MPa
Total power		220V 50Hz 1.5Kw

Name		Brand
PLC		Germany SIEMENS
Triplet		TAIWAN AIRTAC
Low voltage electrical apparatus		Germany SIEMENS
Solenoid valve		TAIWAN AIRTAC
Sensor		Korea AUTONICS
Gas driller		Taiwan BOA
Guide		Taiwan TBI
Switch power		Taiwan TEND

Advantages & Features

Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame

2.The machine time could be adjusted

3.The machine adopts auto loading and replenishes

4. The machine adopts auto drilling, filling and sealing function

5.It use Germany Siemens PLC control system

6.The touching screen interface, simple and visible

8.It adopts vacuum pump loading device ,increase the loading speed

9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.

Company Profile

The Brief Information

Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery, and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India, and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession, and honesty, wins the future with you together!
