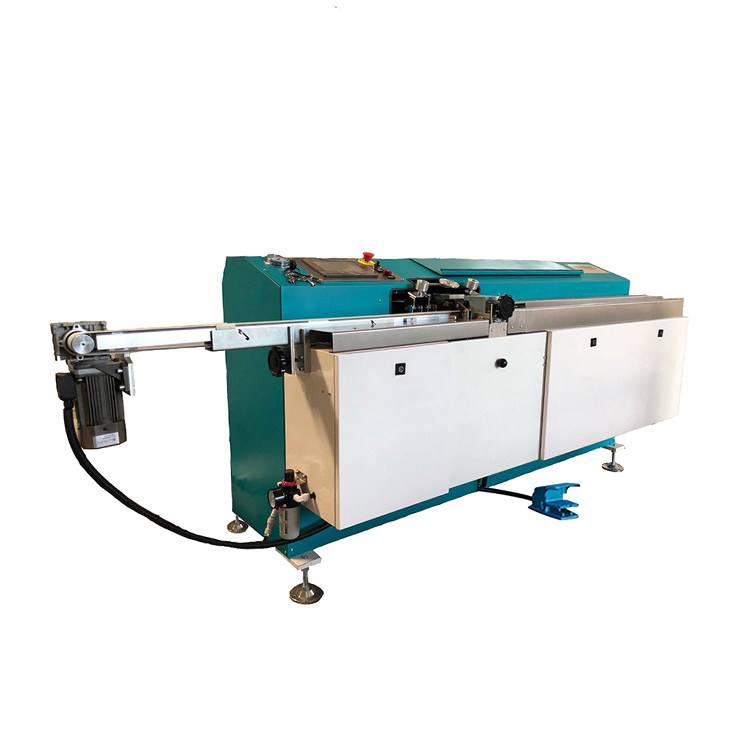

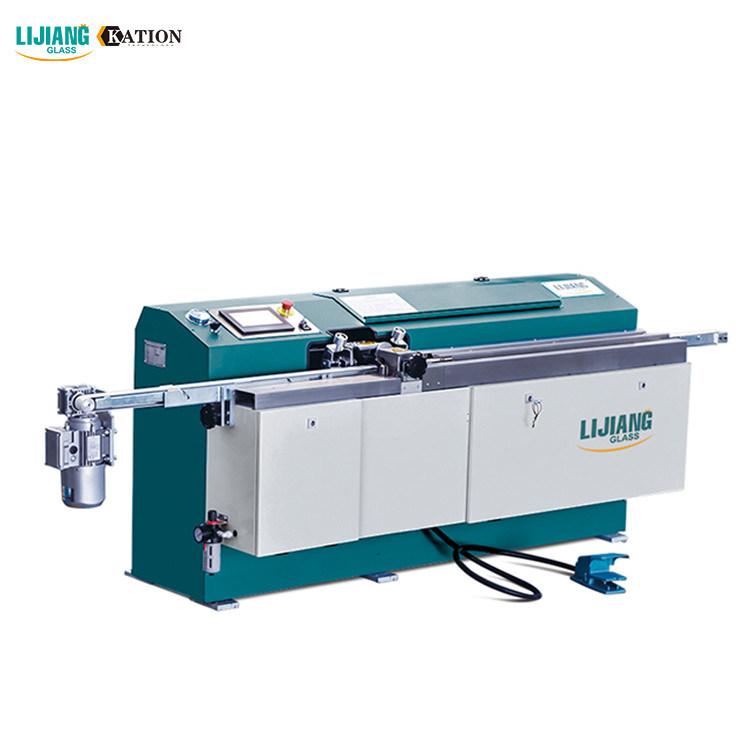

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing

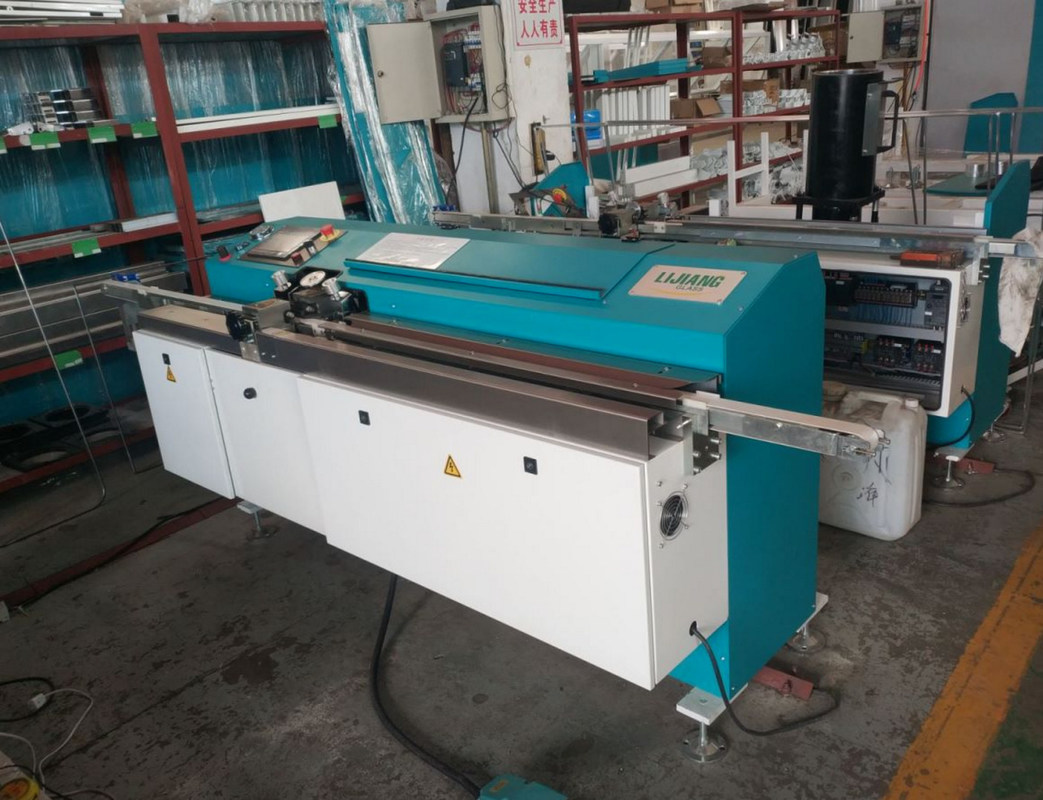

Large Image : Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing

Product Details:

Place of Origin:	CHINA
Brand Name:	Lijiang
Certification:	CE UL
Model Number:	LJTB01

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	WOODEN BOX OR PLASTIC FILM
Delivery Time:	3days
Payment Terms:	L/C, T/T, MoneyGram, Western Union
Supply Ability:	20 sets per month

Contact Now

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing

Description

Name:	Butyl Coated Machine	Aluminum Spacer Width:	6A-30A
Coating Pressure:	10-18mpa	Coating Temperature:	110-140 °
Total Power:	5.7kw	Machine Size:	2800700900mm
Coating Speed:	0-47m/min	Butyl Plug Weight:	7kg-50kg
Highlight:	Aluminum Spacer Butyl Adhesive Coater , Butyl Adhesive Coater For Insulated Glass , Double Glass hot melt butyl machine

47m/Min 5.7kw 18mpa Extrusion Coating Machine Insulating Glass Machine

Butyl extruder parameters

Main feature

n PLC control system, touch screen interface.

n Abroad technology, pneumatic and hydraulic supercharging system.

n Separate extruder head structure.

n Circular arc butyl sealing structure.

n Extruder head height adjustment structure

n Butyl cylinder swing mechanism

n Important control parts adopt imported brand.

Name	Brand	Original
PLC	KINCO	China
Valve	HAWE	German
Low voltage electrical apparatus	SIEMENS	German
Hydraulic and pneumatic supercharging system	MAXIMATOR	German
Frequency converter	KINCO	China
Pneumatic components(cylinder/valve)	ARTAC	Taiwan
Quick exhaust valve/Vacuum generator	SMC	Japan SMC
Travel light	OMRON	Japan
Optical fiber	OMRON	Japan

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5KW, 50HZ
Dimension	2600×680×1100mm(L×W×H)
Weight	650kg

Butyl Extruder Machine

Main Features:

• PLC control system, touch screen interface • Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust • The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full • Fast preheat, improve work efficiency • with preheating function • With exhaust inflatable function, improve the quality of sealing and save time for plastic • Quickly coating speed,can up to 47m/min • Saving the amount of glue

Details Images

Technical data

Electrical parameters

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 2

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 3

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 5

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 6

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 7

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 8

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 9

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 10

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 11

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 12

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 13

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 14

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 15

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 16

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 17

Aluminum Spacer Butyl Adhesive Coater For Insulated Glass Double Glass Processing 20
