Name: 1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJGZ2020
Availability: InStock

Home > Products > Desiccant Filling Machine >

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit

2.0mm Molecular Sieve Feeding Machine

1.5mm Molecular Sieve Feeding Machine

2.0mm butyl extruder machine

Place of Origin:

CHINA

Brand Name:

Lijiang

Certification:

CE UL

Model Number:

LJGZ2020

Request A Quote

Product Details

Name:

Automatic Molecular Filling Machine

Max Frame Szie:

2000*3000mm

Min Frame Size:

300*150mm

Aluminum Size:

6A-27A

Air Source:

0.65MPA

Total Power:

1kw

Molecular Sieve Diameter:

1.5-2.0mm

Machine Size:

1300*1100*3600mm

PLC:

Germany Simens

Highlight:

2.0mm Molecular Sieve Feeding Machine

1.5mm Molecular Sieve Feeding Machine

2.0mm butyl extruder machine

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable

Packaging Details

WOODEN BOX

Delivery Time

2 DAYS

Payment Terms

L/C, T/T, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

30 SETS PER MONTH

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

+86 18678875966

sales02@lijiang-glass.com

86-0531-85960498

Contact Now

Product Description

Automatic Desiccant Filling Machine Molecular Sieve Feeding Machine for double glazing unit

for Double Glass Insulated Glasing

Hollow Glazing Aluminum

Spacer Bar Padding

LJGZ2020 Automatic Molecular Filling Machine

Automatic  Molecular Filling Machine could automatically achieve actions of drilling holes automatically in the spacer frames,filling desiccant and sealant.Automatic  Molecular Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant .Automatic  Molecular Filling Machine improves quality of insulating glass ,it’s a necessary equipment in the process of insulating glasses.

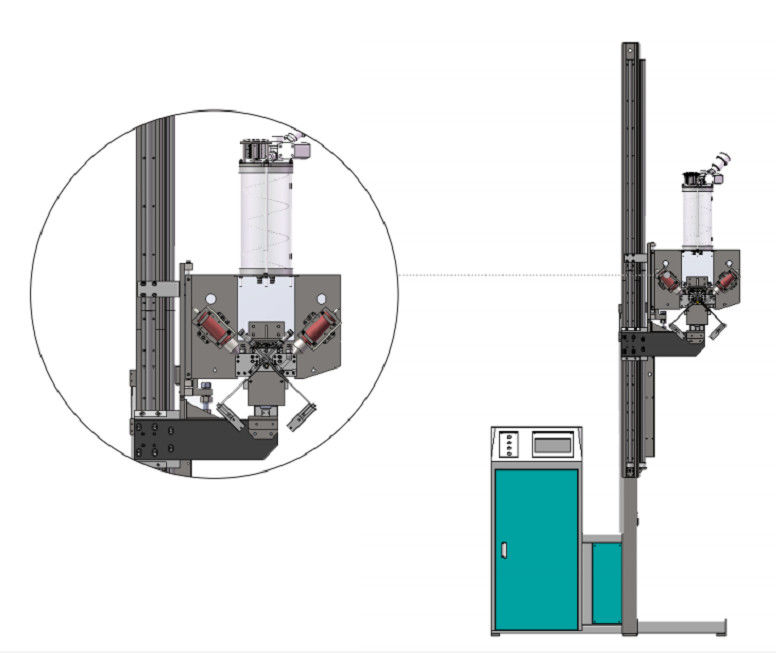

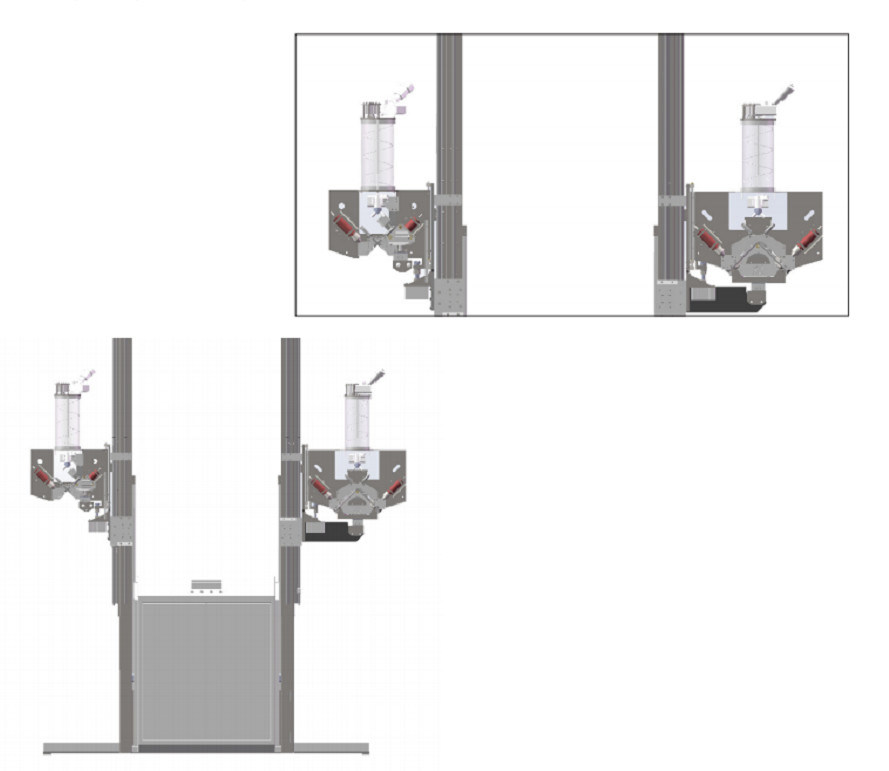

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit 0

enefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame

2.The machine time could be adjusted

3.The machine adopts auto loading and replenish

4.The machine adopts auto drilling, filling and sealing function

5.It use Germany Siemens PLC control system

6.The touching screen interface, simple and visible

8.It adopts vacuum pump loading device ,increase the loading speed

9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work

The filling height of can be adjusted according to the size of spacer frame Filling time can be adjusted Desiccant auto loading and replenish Auto drilling, filling and sealing function Germany Siemens PLC control system Touching screen interface, simple and visible Adding glue way is safe and easy Machine can fill the arc frame.(optional function) Can fill Molecular sieve diameter 0.5-0.9mm, 1.0mm-1.5mm(optional function)

LJGJ03 Molecular sieve filling machine

1.Can effectively fill desiccant and keep dry

2.Manually filling desiccant into spacer frame

3.The desiccant can be recyclable

4.Easy operating, simple and flexible

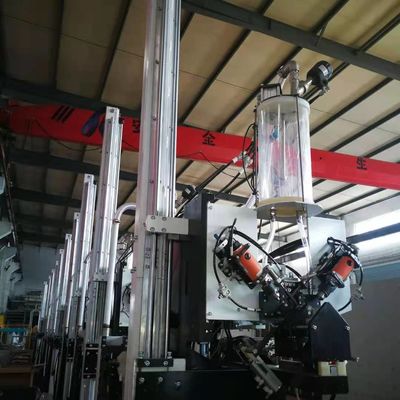

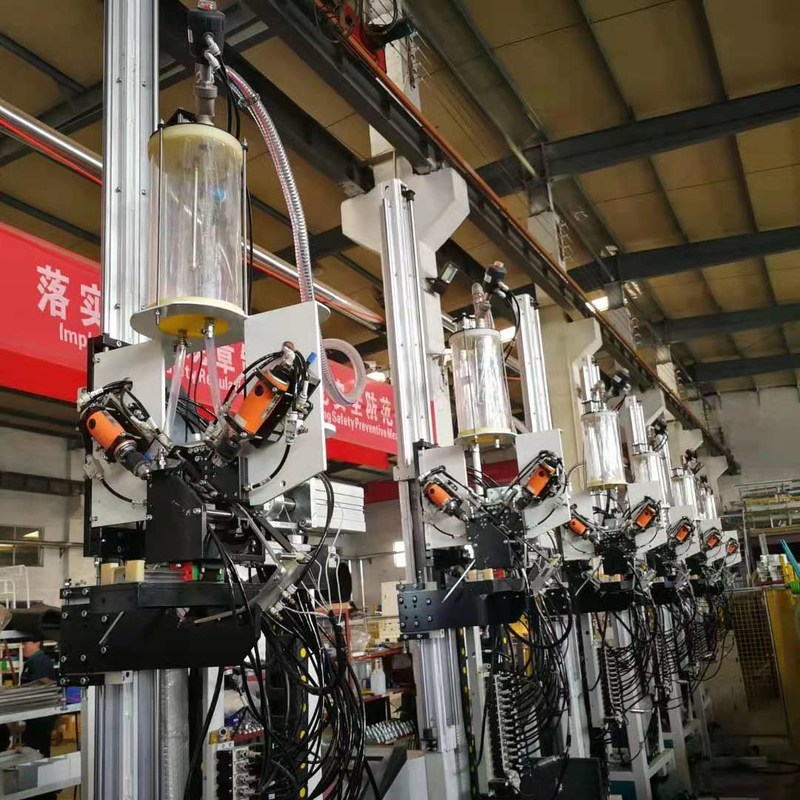

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit 1

Main technical parameter

Power supply	220V 50Hz
Total power	1kw
Dimension	24904002200mm

Main technical parameter

Filling aluminum frame’s maximum size	2000mm*2000mm
Filling aluminum frame’s minimal size	300mm*250mm
Article aluminum specifications	5.5-24mm
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1KW
Molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm1100mm3650mm

Name	Brand
PLC	German SIEMENS
Low voltage electrical apparatus	German SIEMENS
sensor	Korea AUTONICS
guide	Taiwan TBI
triplet	TAIWAN AIRTAC
Solenoid valve	TAIWAN AIRTAC
Gas driller	Taiwan BOA
Switch power	Taiwan TEND

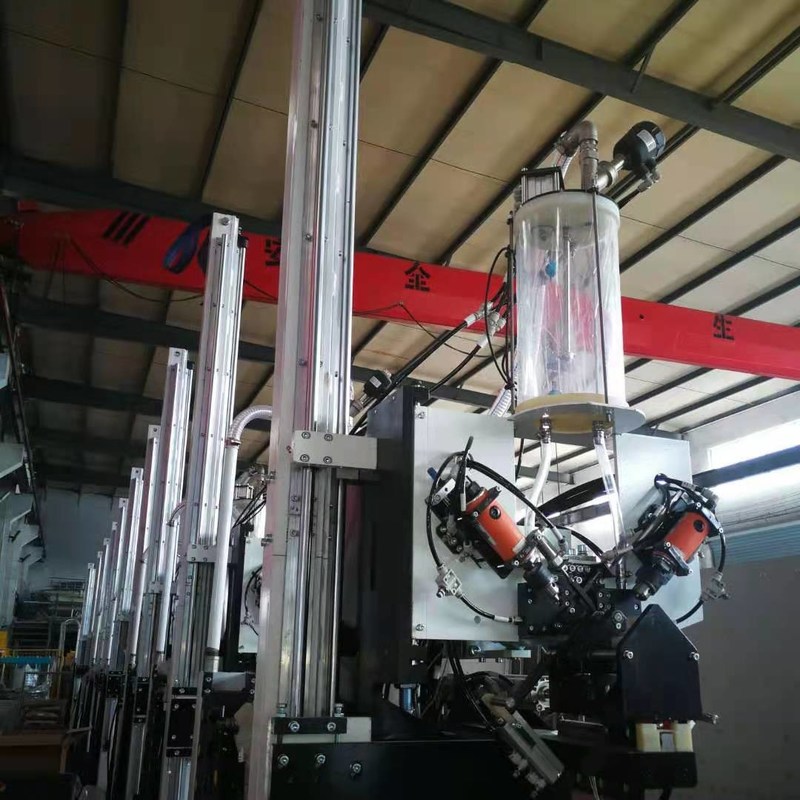

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit 2

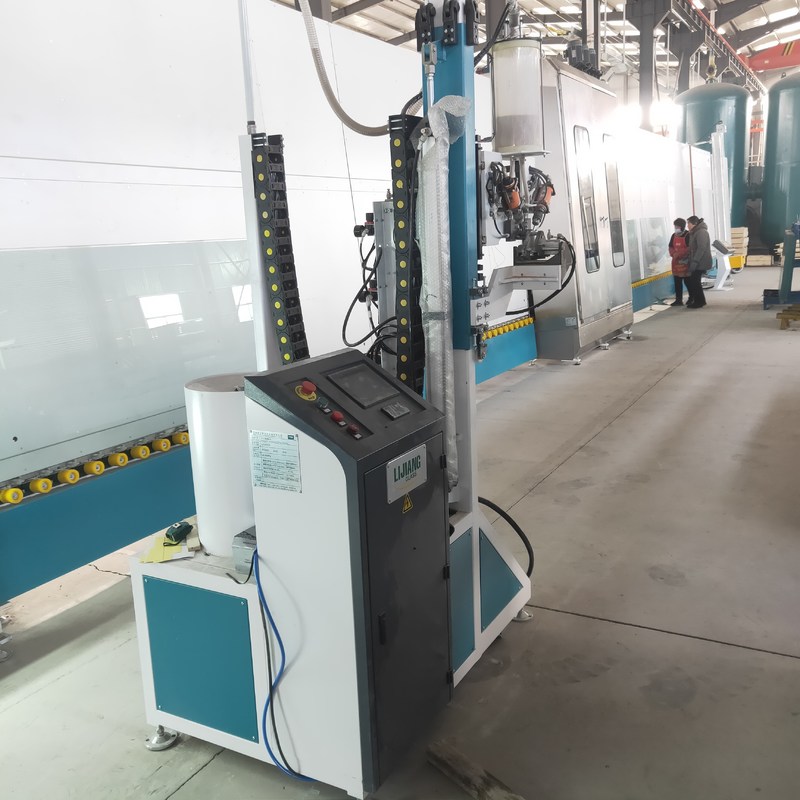

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit 3

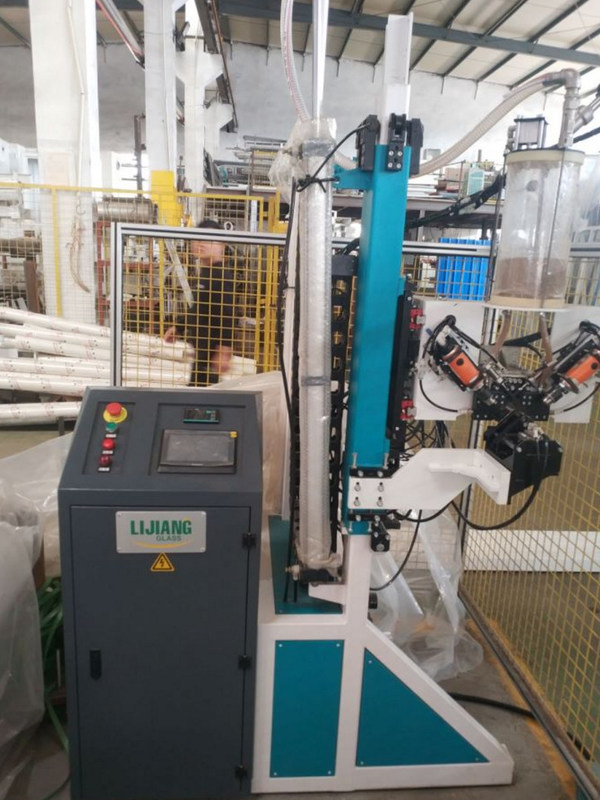

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit 4

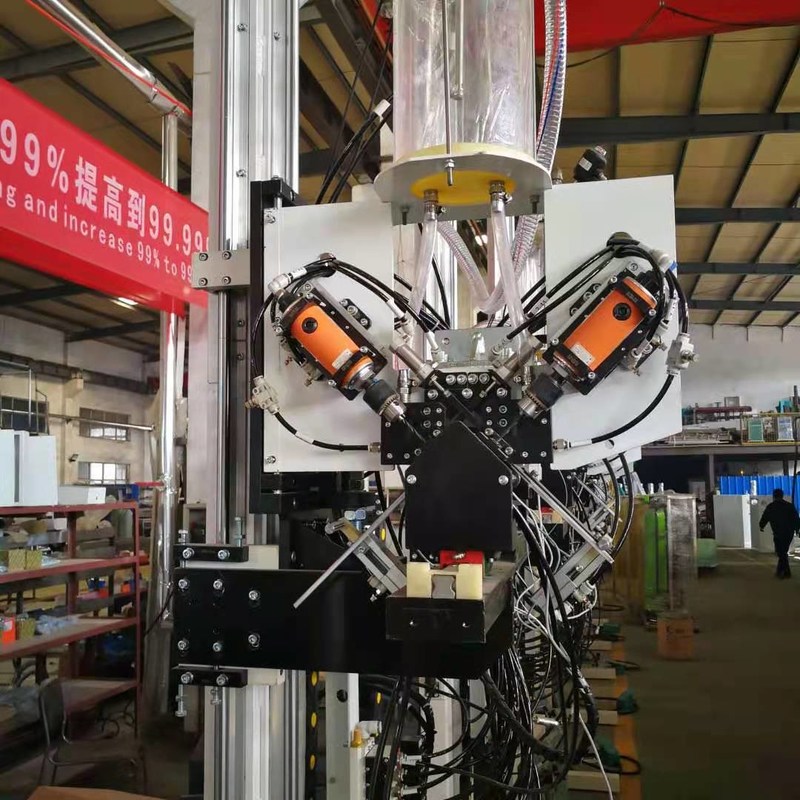

1.5-2.0mm Molecular Sieve Feeding Machine For Double Glazing Unit 5
