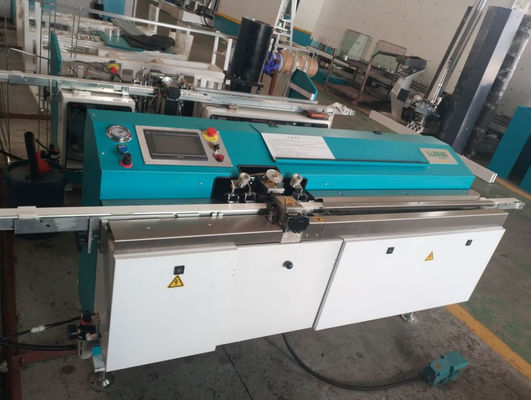

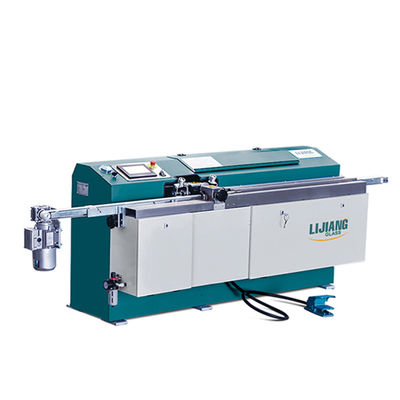

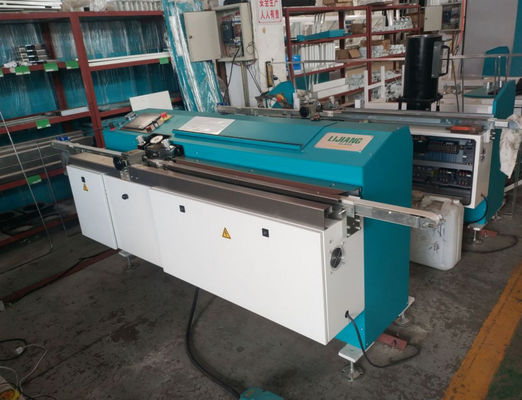

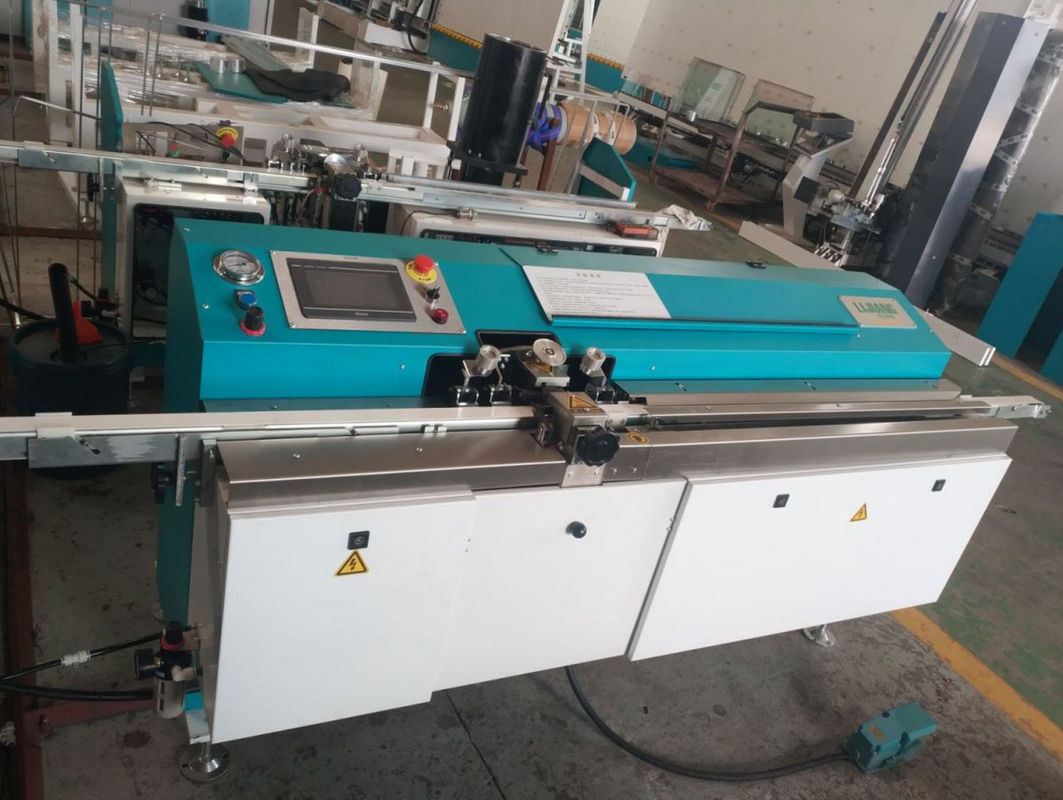

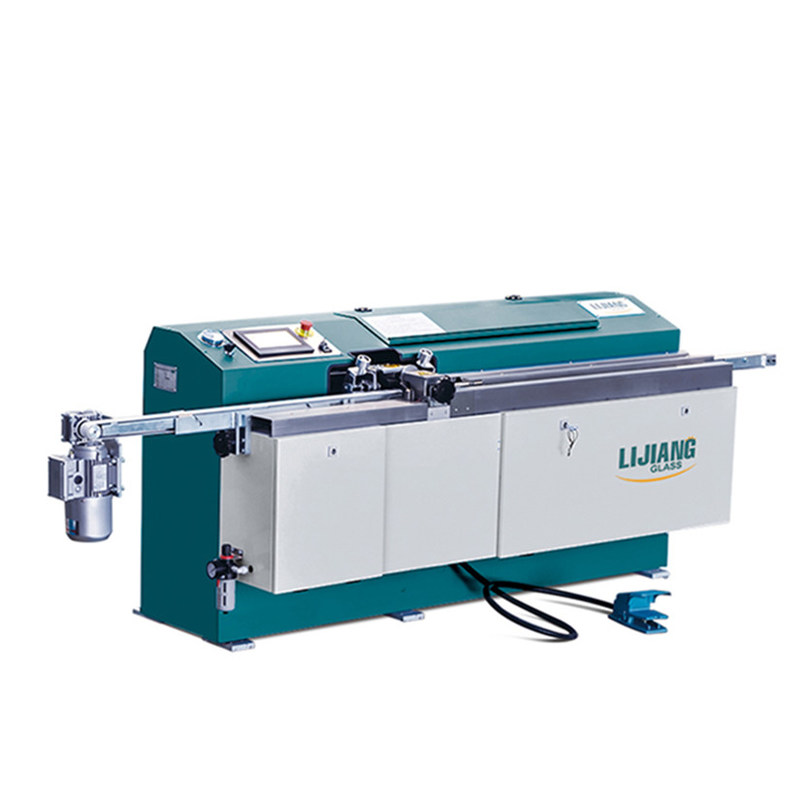

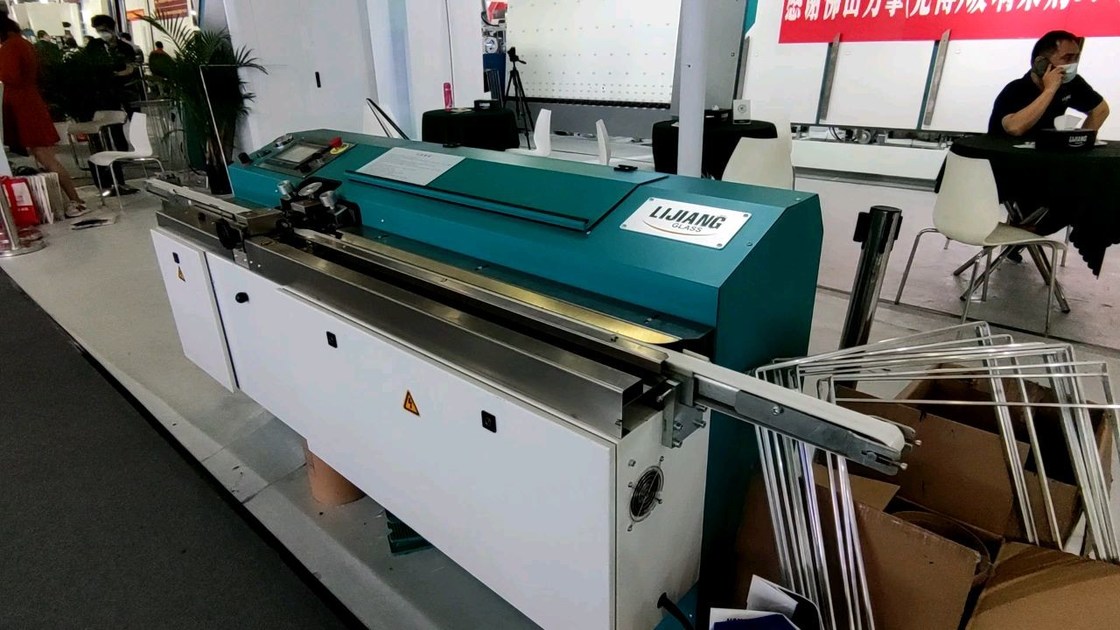

Automatic Butyl Rubber Coating Machine

Automatic Butyl Rubber Coating machine is a special equipment for the production of making double glazing glass. The main role is to melt butyl rubber evenly on the aluminum frame.It is the special equipment in the aluminum groove type insulating glass production and processing technology. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

Main Features:

1. Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust,and the integrated control of quick opening valve ensures the consistency of double-sided gluing

2.PLC control system, touch screen interface

3. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
4.The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
5. Unique design structure, with automatic exhaust function, to ensure continuous glue application
6.Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
7.Fast preheat, improve work efficiency

8.with preheating function
9.Quickly coating speed,can up to 47m/min

10. It is convenient and practical to use movable vertical and horizontal sealant

11. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

12. Touch screen operation, simple and practical

13. The rubber cylinder adopts pull-up structure, which is convenient for operation

Specification parameters:

Electrical parameters :

Optional function :

This machine with big glue barrel with 200L butyl glue, the new butyl extruder machine will save a lot time of adding glues.
