Product Details:
|
| Product Name: | Butyl Extrusion Coating Machine | Application: | Making Double Glazing Glass Products Machine |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| High Light: | Stainless Steel Hot Melt Coating Machine,Insulated Glass Hot Melt Coating Machine,Double Glass hot melt glue machine |
||

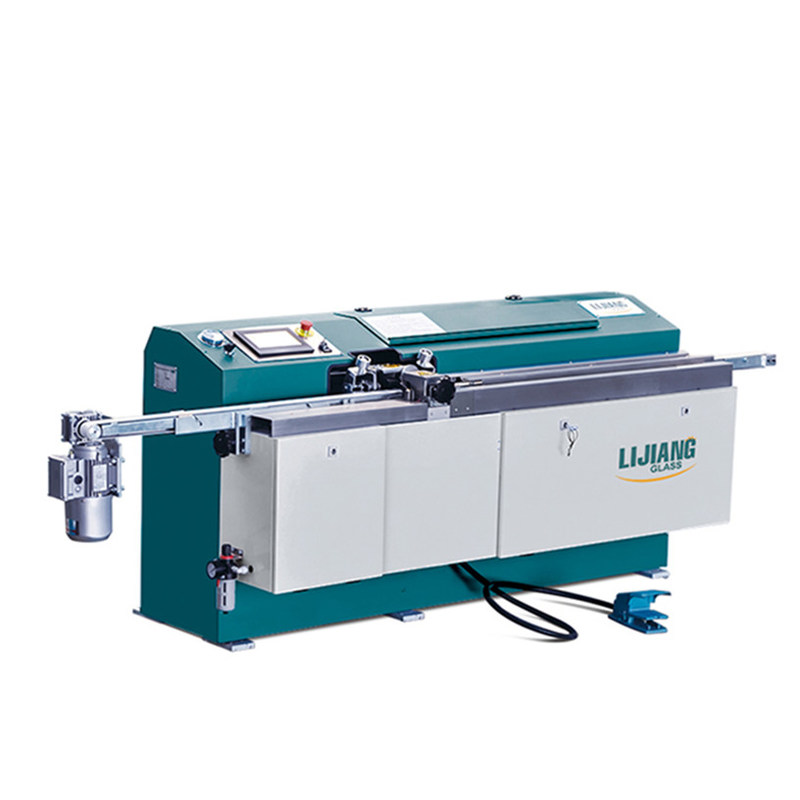

Overview of Automatic PIB Extruder machine
Automatic PIB extruders are used to spread the aluminum spacer frame evenly with hot melt butyl. The butyl extruder is easier to operate than before and uses a large electrical control panel. The aluminum conveyor is controlled by a frequency converter. The speed can be adjusted from 0m / min to 47m / min. The LJTB01 Butyl Extruder is a special device for manufacturing double glazing. As one of the important pieces of equipment for manufacturing double glazing, the effect of butyl adhesive is directly related to the sealing of double glazing. The device is automatic, easy to operate, and easy to use.
The main feature of the Automatic PIB butyl Extruder machine
● Coating adhesive speed can reach 47m / min
● Saves adhesive compared to regular machines. Glue valve integrated control can reach 7g / m
● Adjusting the height of the beam is convenient and effective in solving the problem of white lines.
● Manual exhaust, easy operation
● Uses non-adhesive synchronous belt, does not use talc powder
● Touch screen operation, use a simple trial version
● Automatically adjusts the adhesive output according to changes in speed
● Main accessories are made with the German brand, PLC program control, stable performance
● Adopt brand hydraulic system to ensure uniform and complete rubber output
● Convenient and practical with movable vertical adhesive release and horizontal coating
● The rubber cylinder uses a pull-up structure, which is convenient for rubber replacement.
● Automatically adjust the width of the adhesive head and make sure the double-sided adhesive matches the quick opening valve integrated control
Tech parameters of Automatic Butyl Extruder Machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Equipment details of Automatic Butyl Extruder Machine for Insulating Glass
Germany Siemens parts
PIB extruder machine Adopt Siemens brand, stable performance.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Glue cylinder
Butyl extruder Adopt the upright structure, easy to change butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

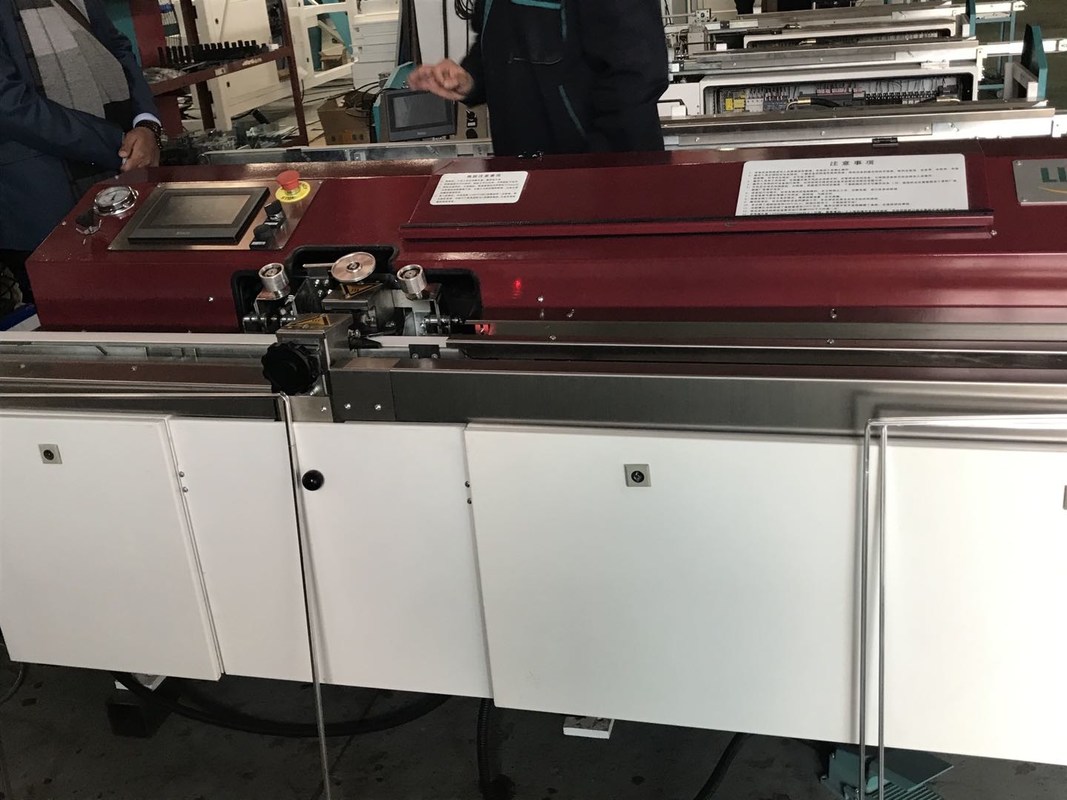

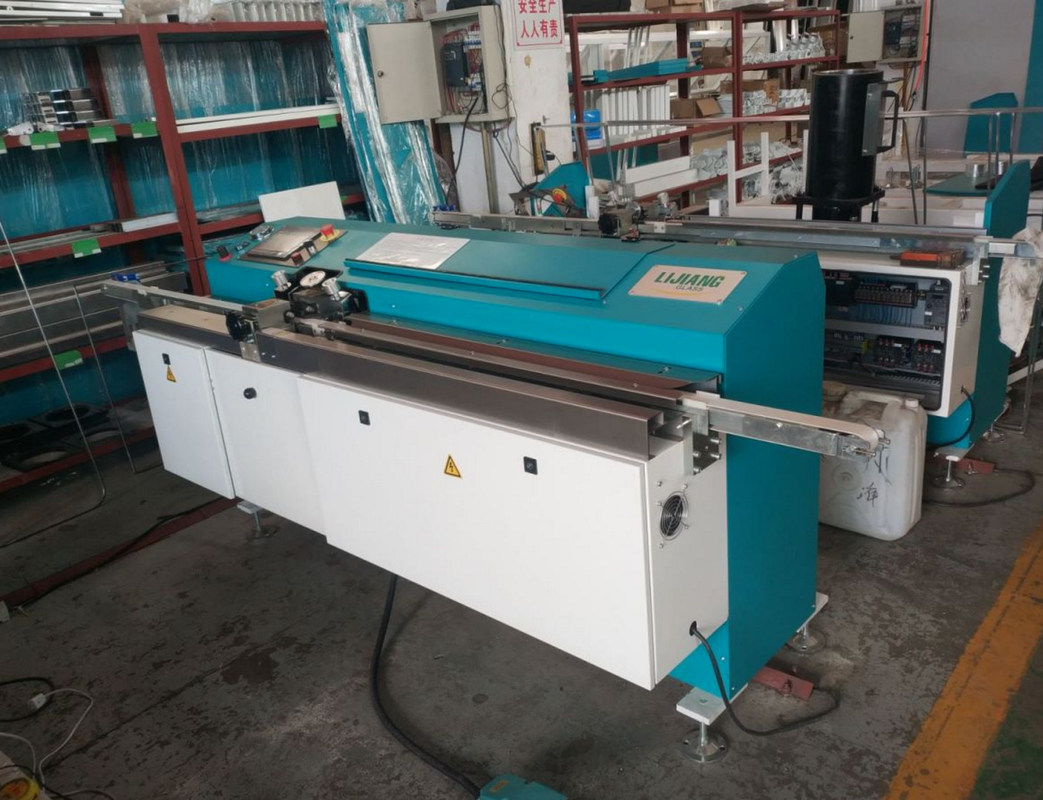

Details of Automatic Butyl Extruder machine
Optional functions of butyl coating machine:
200L glue cylinder is optional
