Product Details:
|
| Name: | LJTB01 Butyl Extruder Machine | Air Supply: | 0.4m³/min |
|---|---|---|---|
| Air Pressure: | ≥0.6MPa | Total Power : | 380V, 5KW, 50HZ |
| Diameter Of Butyl Cylinder: | 200mm | Weight: | 650kg |
| High Light: | 47m/Min Butyl Adhesive Coating Machine,IG Glass Butyl Adhesive Coating Machine,47m/Min Butyl Sealant Spreading Machine |
||

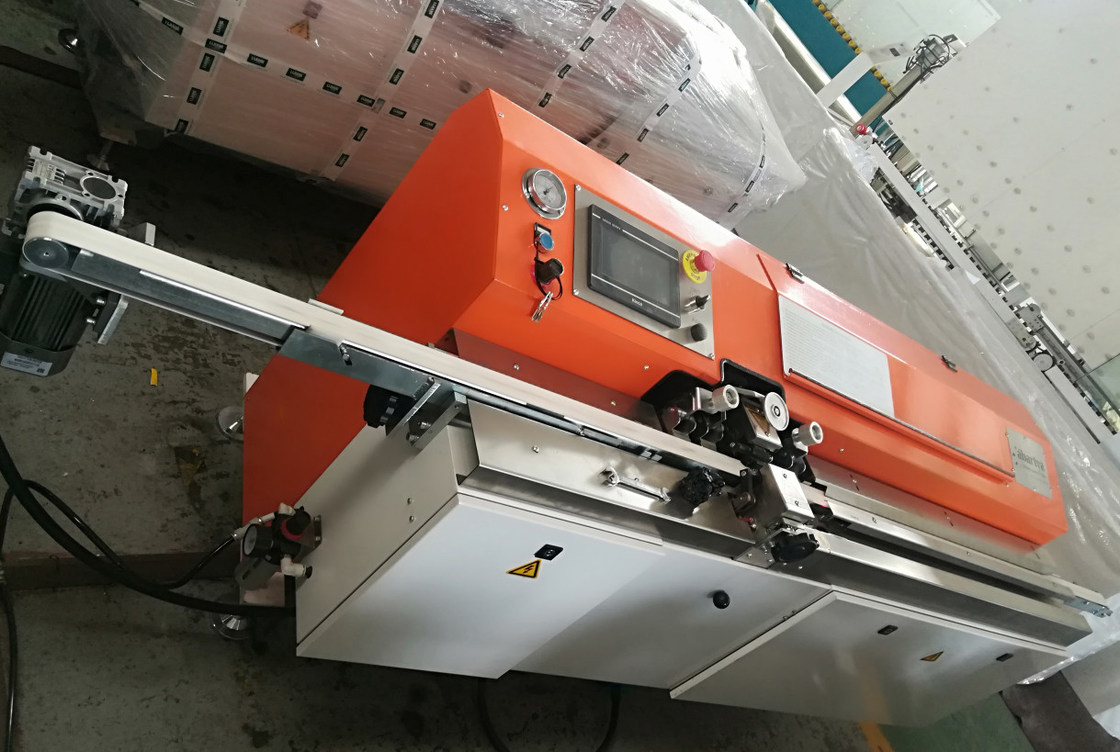

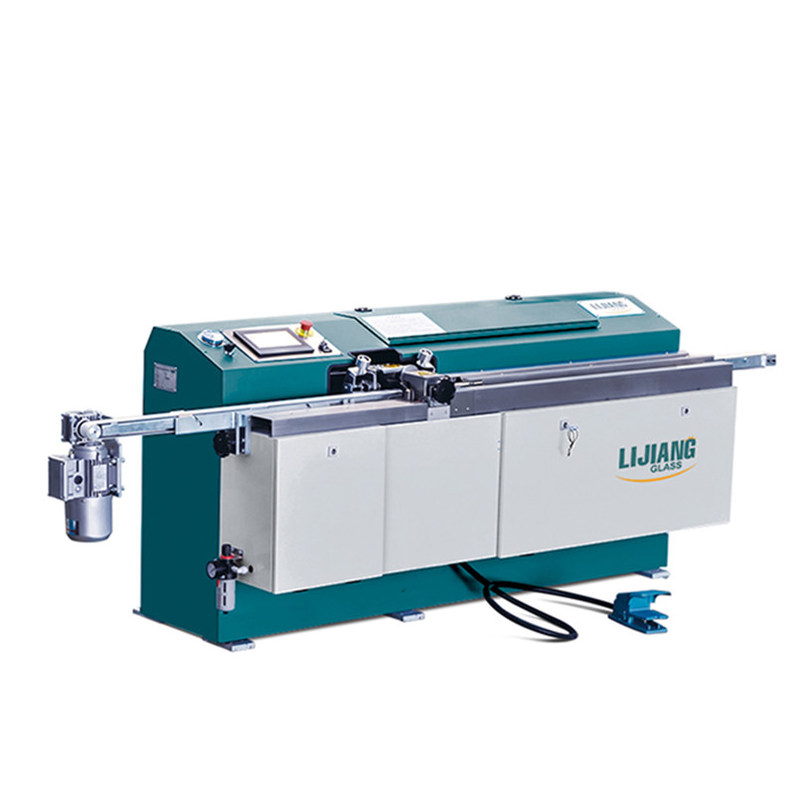

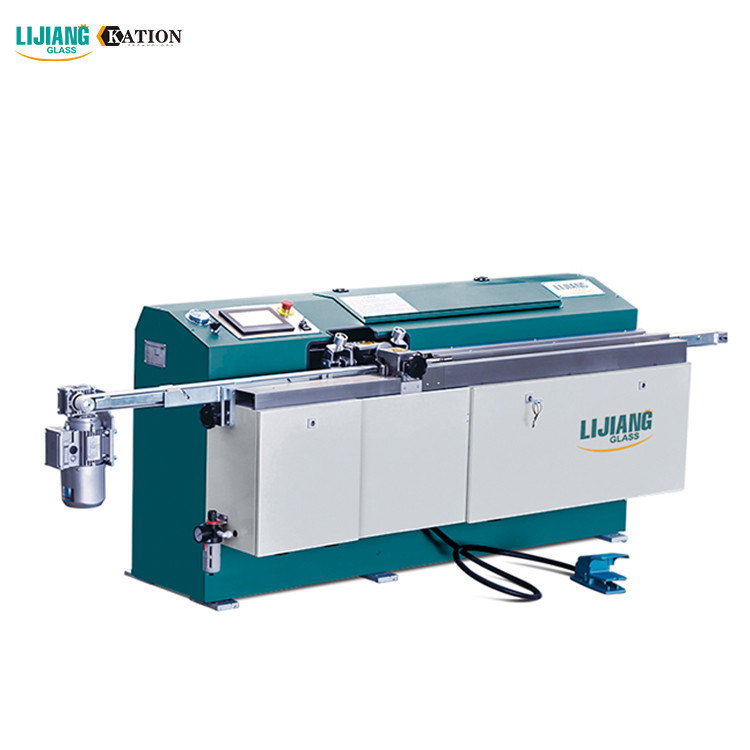

LJTB01 Butyl Extruder Machine
Application of china pneumatic
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer
frames evenly with hot melt butyl. LJTB01 butyl extruder machine use large electrical
control panel which makes the operation more easier. The conveyor of aluminum is
controlled by frequency converter, and the speed can be adjusted from 0m/min to
47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine
is very popular with energy-saving. Its squeezing system adopts pneumatic and
hydraulic supercharging system, which makes the squeezing pressure more stable.
The dispensing cylinder uses vertical rotary support system and it makes the refill
of butyl easier. It can prolong the life of squeezing system and set the heating time
in 24 hours with electricity and air pressure. The distance of squeezing head
can be adjusted automatically according to different aluminum spacer. The LJTB01
butyl extruder machine has reached the worldwide technology with the characteristic
of complete function and stable working mode.
Technical Data of electrical control panel
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
Main components of frequency converter
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
Other features of extruder head
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
FAQ of extrusion coating machine
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for
guiding customer to find the
usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
