Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel
Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel

Large Image :  Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJGZ2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 20 days
Payment Terms: L/C, T/T
Supply Ability: 30sets/month

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel

Description
Production Name: Automatic Desiccant Filling Equipment Filling Aluminum Frame's Maximum Size: 2000mm*2000mm
Filling Aluminum Frame's Minimal Size: 300mm*250mm Optional: Big Barrel
Aluminum Specifications: 5.5-26.5mm Faction: Aluminum Spacer Drilling,filling And Sealing
Application: Insulating Glass Processing After-sales Service Provided: Engineers Available To Service Machinery Overseas
Molecular Sieve Diameter Needed: 0.5- 0.9 Mm Certification: CE
High Light:

Desiccant Filler For Double Glass

,

Automatic Glazing Desiccant Filler

,

Desiccant Filler With Big Barrel

Automatic Glazing Desiccant Filling Machine For Double Glass Equipment with big barrel

Automatic Glazing Desiccant Filling Machine Adopt Siemens PLC servo control system with stable performance,Molecular sieve can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.



Main feature of desiccant filling machine



● Germany Siemens PLC control system,table performance

● Automatically drilling filling and sealing

●Desiccant filling machine height can be adjusted according to the size of spacer frame

● Automatically loading and replenish molecular sieve

●Advanced feeding device designed according to the principle of as flow

●Adopt Industrial plastic spraying treatment of all racks Core parts

●adopts famous imported brand



Optional function

LJGZ2020A

●Using big plastic barrel,save feeding time and improve eficiency

●Protection device for machine head

●Filling shaped frame

●1.0-1.5mmsizes,large particle molecular sieve

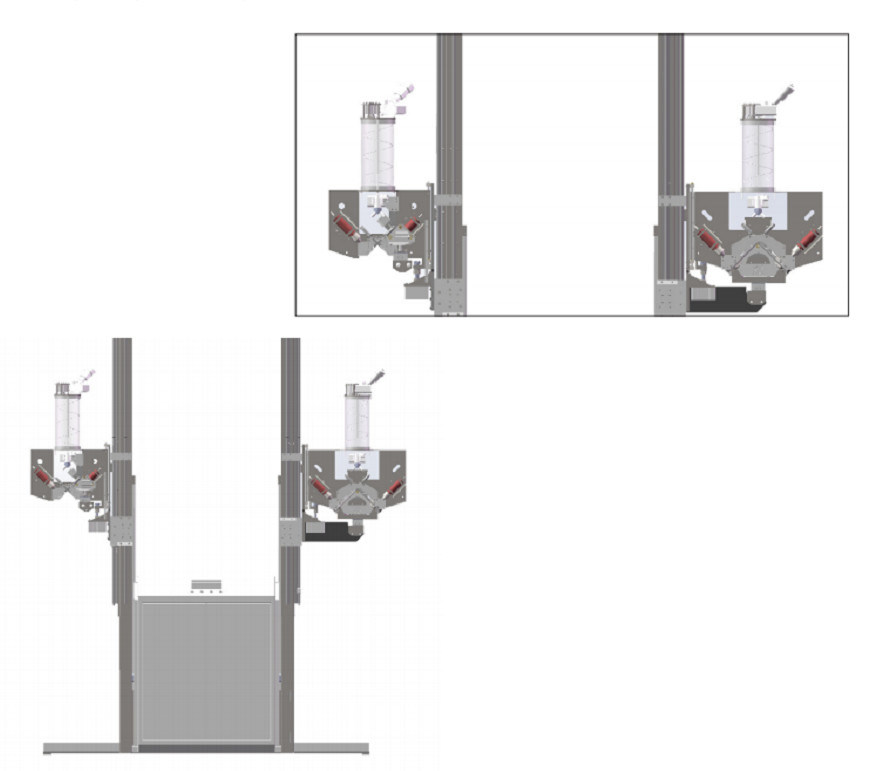

LJGZ2020X

●with the guide rail lifting device

●The head is stable when working

●With large frame auxiliary function

LJGZ2020S

●Two filing stations can work at the same time to improve Work efficiency

●Two stations can realize different combinations of ordinary fling,special-shaped filling and large particle filling(optional)





Technical parameter of Automatic Aluminum Desiccant filling machine



Filling aluminum frame’s maximum size 2500mm*2500mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm






Product introduction​ of Insulating glass Molecular Sieve Filling Machine



1.Molecular sieve filling machine have Protection device for machine head,safely operating.



Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 0



2.Desiccant filling machine height can be adjusted according to the size of spacer frame,very convenient.

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 1

3.Electrical component are all Germany Brand-Siemens.

•Desiccant filling machine Adopt Siemens PLC control system automatic desiccant filling machine



Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 2







4.Molecular sieve automatically loading from the Materials bucket.

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 3

5.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 4





6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 5

7.Easy and safe for adding glue

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 6



8.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen




Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 7

Optional function



LJGZ2020A

●Using big plastic barrel,save feeding time and improve eficiency

●Protection device for machine head

●Filling shaped frame

●1.0-1.5mmsizes,large particle molecular sieve

LJGZ2020X

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 8

●with the guide rail lifting device

●The head is stable when working

●With large frame auxiliary function

LJGZ2020S

Automatic Glazing Desiccant Filler For Double Glass Equipment With Big Barrel 9

●Two filing stations can work at the same time to improve Work efficiency

●Two stations can realize different combinations of ordinary fling,special-shaped filling and large particle filling(optional)
