Product Details:
|
| Name: | Butty Extruder Machine | Dimension: | 2600*680*1100mm(L*W*H） |
|---|---|---|---|
| Weight: | 650kg | Air Supply: | 0.4m³/min |
| Speed: | 0-47m/min | Aluminum Spacer Width: | 4-30mm |
| High Light: | Insulating Glass Butyl Extruder Machine,double glass Butyl Extruder Machine,Insulating Glass Rubber Coating Machine |
||
Insulating glass butyl extruder machine Butyl rubber sealing tape coating machine Automatic Hot Melt Butyl Coating Machine
² Application of extrusion coating machine

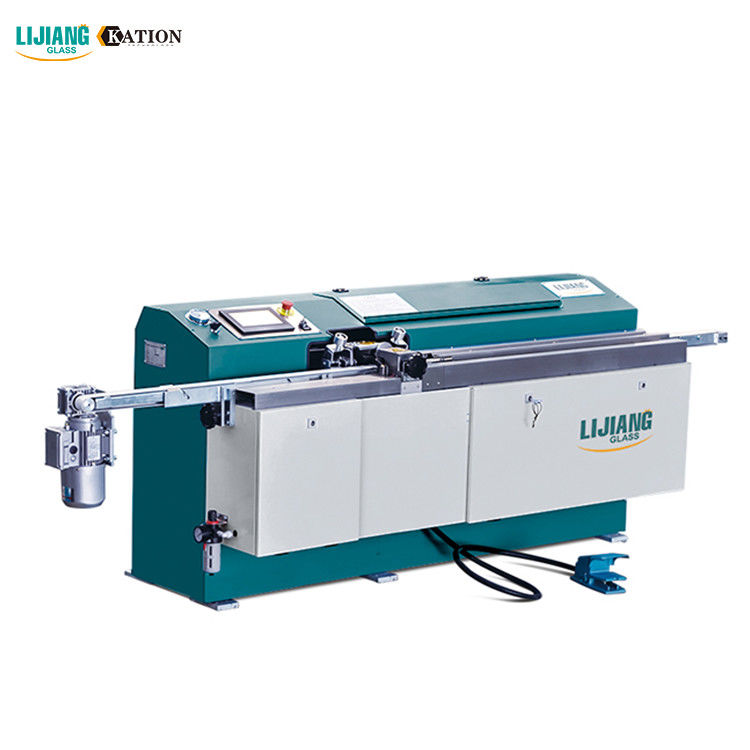

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel
which makes the operation more easier. The conveyor of aluminum is controlled by frequency
converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest
speed in China. LJTB01 butyl extruder machine is very popular with energy-saving.
Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes
the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system
and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating
time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted
automatically according to different aluminum spacer. The LJTB01 butyl extruder machine
has reached the worldwide technology with the characteristic of complete function and stable working
mode.
² Technical Data of electrical control panel
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
² Main components of butyl silicone sealant
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
FAQ of extrusion coating machine
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
