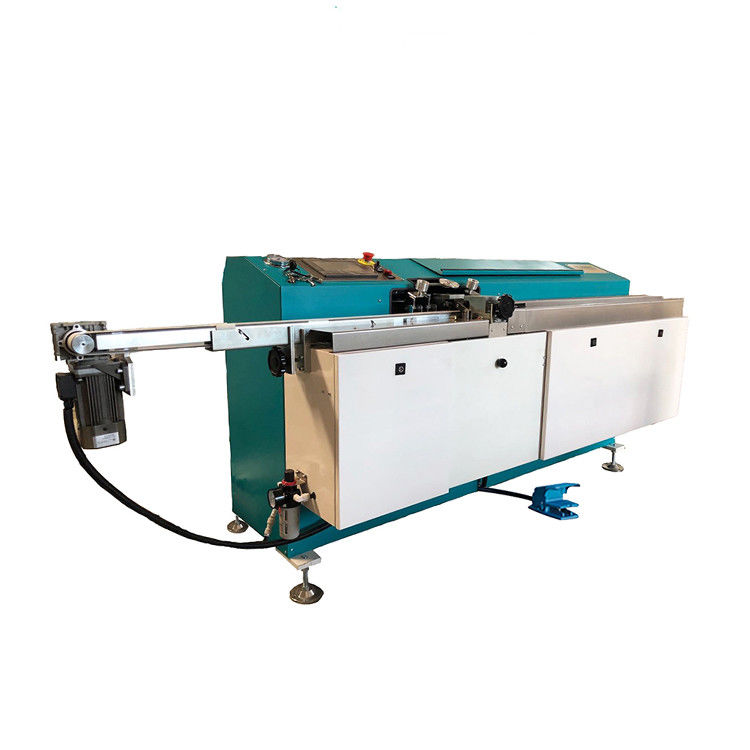

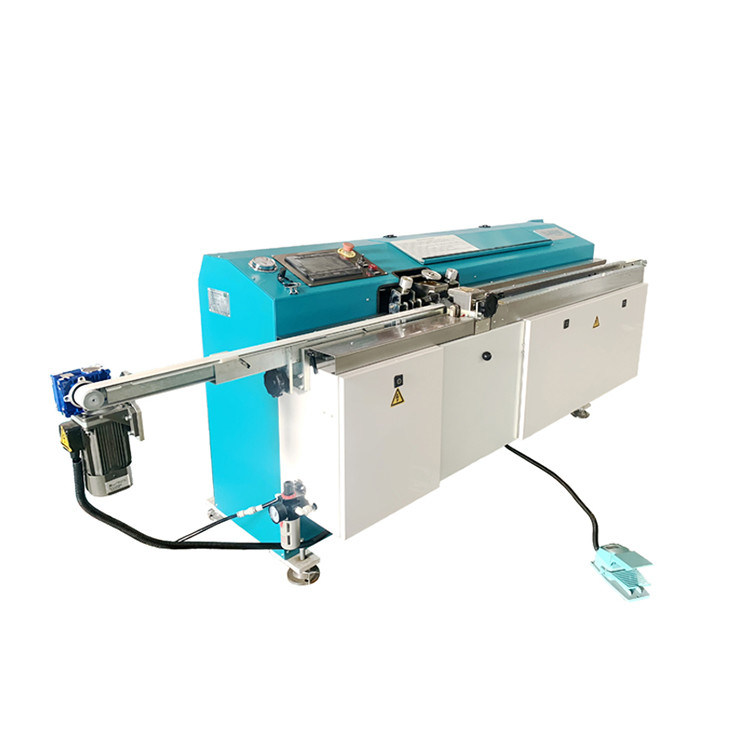

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery
Automatic Butyl Extruder Machine For Flat Glass Processing Machinery Automatic Butyl Extruder Machine For Flat Glass Processing Machinery

Large Image :  Automatic Butyl Extruder Machine For Flat Glass Processing Machinery

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery

Description
Product Name: Butyl Extrusion Coating Machine Application: Making Double Glazing Glass Products Machine
Warranty: 1 Year Heating Time: 15 Mins
Voltage: 380V 50Hz 3P Squeeze Pressure: 10-18MPa
Glue Thickness: 0.3-0.5mm Glue Width: 3.5mm
High Light:

hot melt Butyl Extruder Machine

,

Flat Glass Butyl Extruder Machine

,

Flat Glass hot melt butyl machine

Automatic Butyl Extruder machine For flat glass processing machinery



Overview of Automatic PIB Extruder machine



Automatic PIB extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.



Main feature of Automatic PIB butyl Extruder machine


1. Automatic butyl extruder machine is operated by Touch screen , simple and practical

2. Butyle extruder adopt the hydraulic system imported from Germany is adopted to ensure even and full glue delivery

3. PIB extruder machine rubber cylinder adopts pull-up structure, which is convenient for operation

4. Unique design structure, with automatic exhaust function, to ensure continuous glue application

5. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning

6. Automatically adjust the glue output according to the speed change

7. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

8. Glue application speed can reach 47m / min

9. The main accessories of Automatic extruder machine are German brands. PLC program control, stable performance

10. It is convenient and practical to use movable vertical and horizontal sealant

11. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing

12. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m





Tech parameters of Automatic Butyl Extruder Machine for Double Glazing



Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg







Equipment details of Automatic Butyl Extruder Machine for Insulating Glass



Germany Siemens parts

PIB extruder machine Adopt Siemens brand, stable performance.

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 0

KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 1



Alarm system

Automatically alarm system, reminding adding butyl.

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 2



Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 3

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 4



Glue cylinder

Butyl extruder Adopt the upright structure, easy to change butyl.

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 5





Details of Automatic Butyl Extruder  machine

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 6

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 7

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 8





Optional functions of butyl coating machine:



200L glue cylinder is optional



Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 9





Related Products

1.Automatic Aluminum Spacer Bending Machine LJZW2020

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 10



Main feature

• Adopt Siemens PLC control system, touch screen interface

• Siemens servo control system

• Four spacer size storage units

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• USB input function, read the excel format file directly etc (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Can bend aluminum spacer and stainless steel ( Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)



Vertical Loading Table LJASP3525

Automatic Butyl Extruder Machine For Flat Glass Processing Machinery 11

I.Mainly technical parameter:

1.Loading max glass size: L X W = 3500 x 2600 mm

Loading min. glass size: L X W = 800 x 600 mm

Glass thickness: (3-10mm)

2.Dimension of loading table approx.:

L X W X H= 3700mm x 2800mm x 2500mm+ bottom support 530mm(±30mm)

3.The vertical loading table uses Servo motor as drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35m/min;Loading cycle time: 35S

4.Adopts full-closed loop control system for accurate positioning for the machine and stable running system;Configuration description

5.The tilting arm horizontal movement controlled by Servo motor and precise gear box, gear rack drive;

6.Lifting structure: Servo motor and precise gear box control and synchronous belt drive;

7.The suction cups frame tilting structure: Servo motor and precise gear box control and crank connecting rod drive;

8.Bottom transfer structure, Servo motor and precise gear box control and chain drive.

9.4 axis all-digital control with precise positioning and speedy flexibility; All speed can be

adjustable according to production line speed.

10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.

11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;

Suction cups: Uses imported PF suction cups ¢120MM type

12. 5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;



13.Power supply: 380V, 50HZ, 3 phases, installed capacity: 10KW
