Product Details:
|
| Machine Name: | High Speed Butyl Extruder Machine | Glue Barrel: | 7 Kg |
|---|---|---|---|
| Working Speed: | 47m/s | Heating Time: | Less Than 15 Mins |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| Speed: | 0-47m/min | Warranty: | 1 Year |
| Dimension: | 2800*700*900mm | Weight: | 750kg |
| High Light: | 47m/S Butyl Extruder Machine,Insulating Glass Butyl Extruder Machine,47m/S hot melt butyl machine |
||

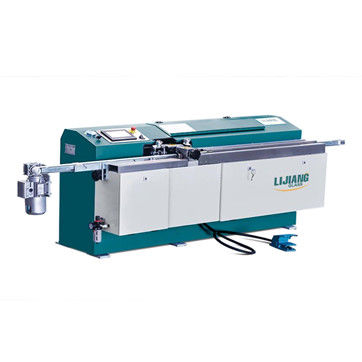

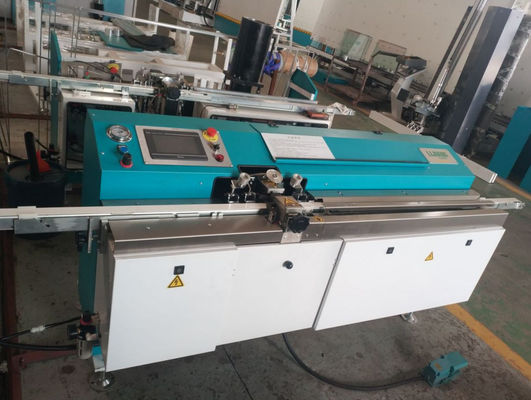

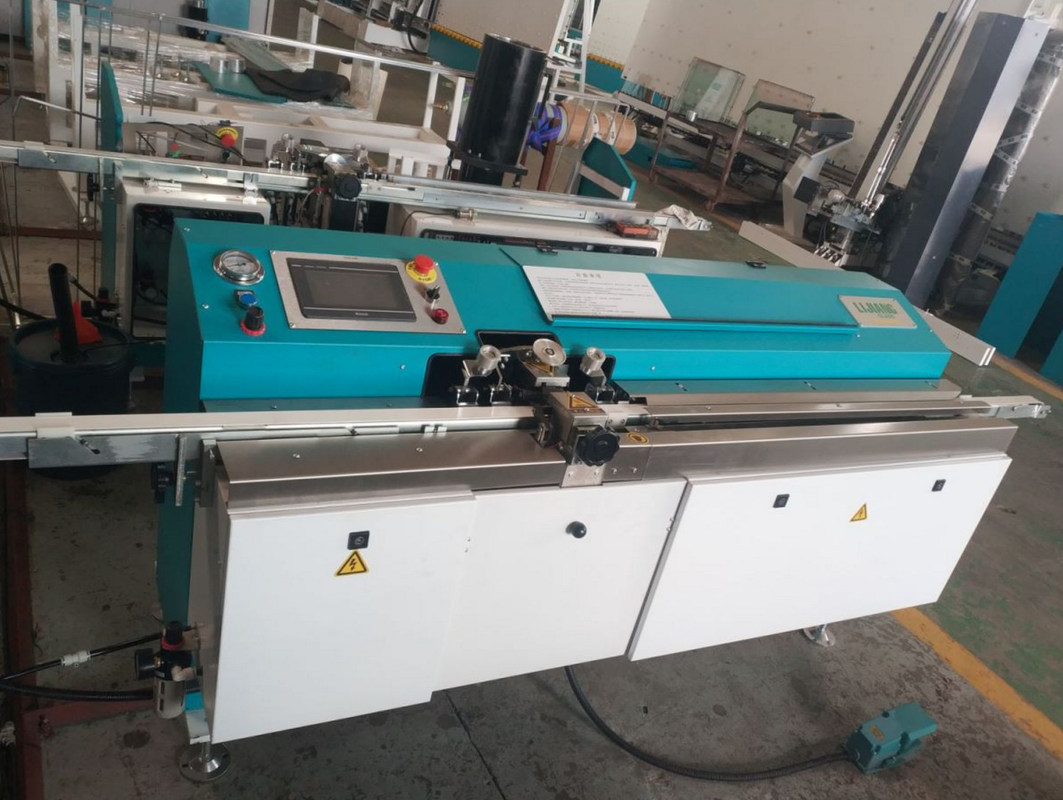

Automatic High Speed Butyl Extruder Machine for Insulating Glass
Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl glued on both sides of aluminum frame is the first sealant for insulating glass. The quality of the glue coating decides the quality of insulating glass. High speed butyl extruder machine is a necessary equipment for aluminum-frame type insulated glass production.
High speed butyl extruder machine is controlled by program PLC, can automaticly and exactly finish gluing function, operators only need to support the aluminum frames, others( clamping roller, transfer and etc) are automatic finished by setting program. This equipment is suitable for square, rectangular, shaped, arc and kinds of aluminum frames. Inner diameter of butyl cylinder is 200mm, maximum can load butyl of Φ195 * 250mm (7kg).The cylinder adopts pull-up structuer, convenient to change butyl.

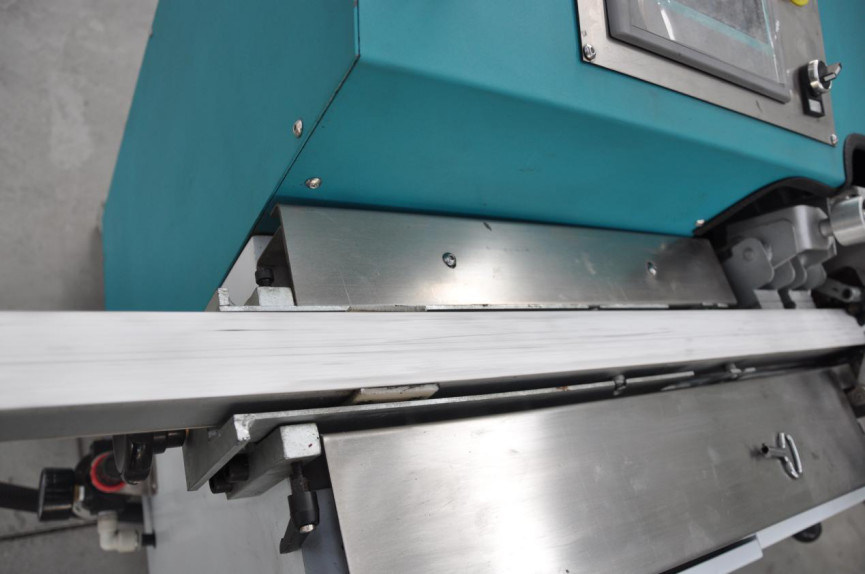

Transfer unit consists of frequency control motor, belts and belt pulleys. The range of running speed for belt is 5 ~ 47m / min; the height of beam can be adjusted by hand wheels, that locate in the left side of machine( see from the following picture), after adjusting to the properly height, please tighten front and back set screws. Structure of this part is easy to adjust, and can solve
the problem of white line.
Main feature of high speed butyl extruder machine
• The glue coating speed can reach 47m/min
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shaped frames, the roller device can be selected at will
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Technical data of high speed butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
