Product Details:
|
| Product Name: | Butyl Rubber Extruder Machine | Application: | Double Glazing Glass Processing |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| Aluminum Spacer Width: | 5.5-26.5mm | Power: | 5.7kw |
| High Light: | Extrusion Coating Hot Melt Butyl Machine,47m/min Hot Melt Butyl Machine,47m/min extrusion coating machine |
||

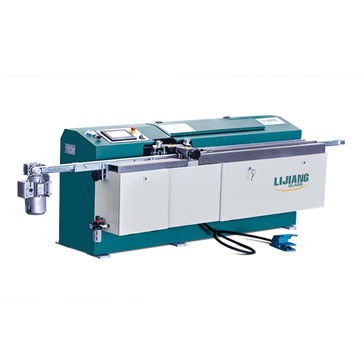

Butyl extruder can make primary sealing of different thickness spacer bars for insulated glass units.
Product overview of butyl rubber extruder machine
Butyl rubber extruders are used to spread the aluminum spacer frame evenly with hot melt butyl and are the second seal of double glazing. Butyl rubber extruders are easier to operate than before and use large electrical control panels. Adjusted from 0m / min to 47m / min. Butyl extruder LJTB01 is a special device for manufacturing double glazing. The aluminum conveyor is controlled by a frequency converter. As one of the important pieces of equipment for manufacturing double glazing, the effect of butyl adhesive is directly related to the sealing of double glazing. Butyl extruders are automatic, easy to operate, and easy to use.
The main feature of the butyl extrusion coating machine
1. Adopting a hydraulic system imported from Germany, supplies the adhesive uniformly and completely.
2. The main accessories are German brands. PLC program control, stable performance
3. Touch screen operation, simple and easy operation, stable performance
4. The rubber cylinder has a pull-up structure that is convenient for operation.
5. Adhesive is applied continuously by the unique design structure with automatic exhaust function.
6. Saves adhesive consumption compared to regular butyl rubber machines. The adhesive can reach 7g / m.
6. Automatically adjust the adhesive output as the speed changes
7. Adhesive application speed can reach 47m / min
8. It is useful to adjust the height of the cross beam to effectively and conveniently solve the white exposure problem.
9. Non-adhesive sync belt is used. No talcum powder is needed for cleaning.
10. Convenient and practical with movable vertical and horizontal sealants
11. Automatically adjusts the width of the adhesive head and integrated control of the quick open valve ensures consistent double-sided adhesion
Tech data of High-speed butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |

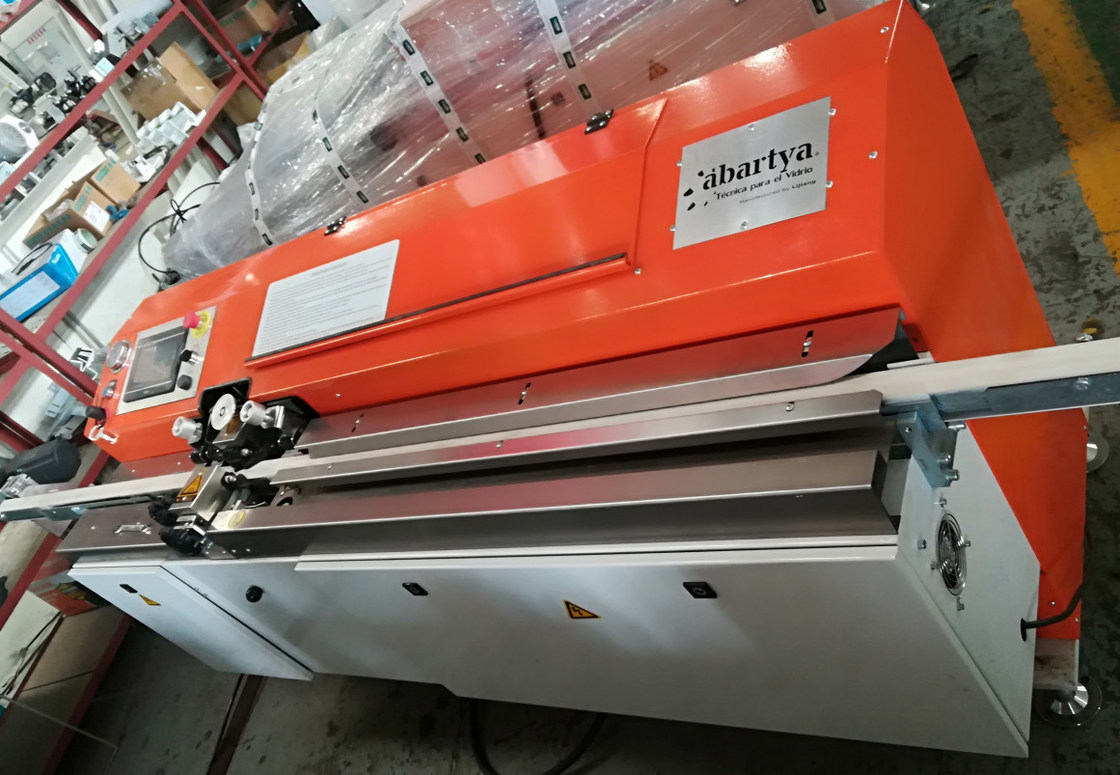

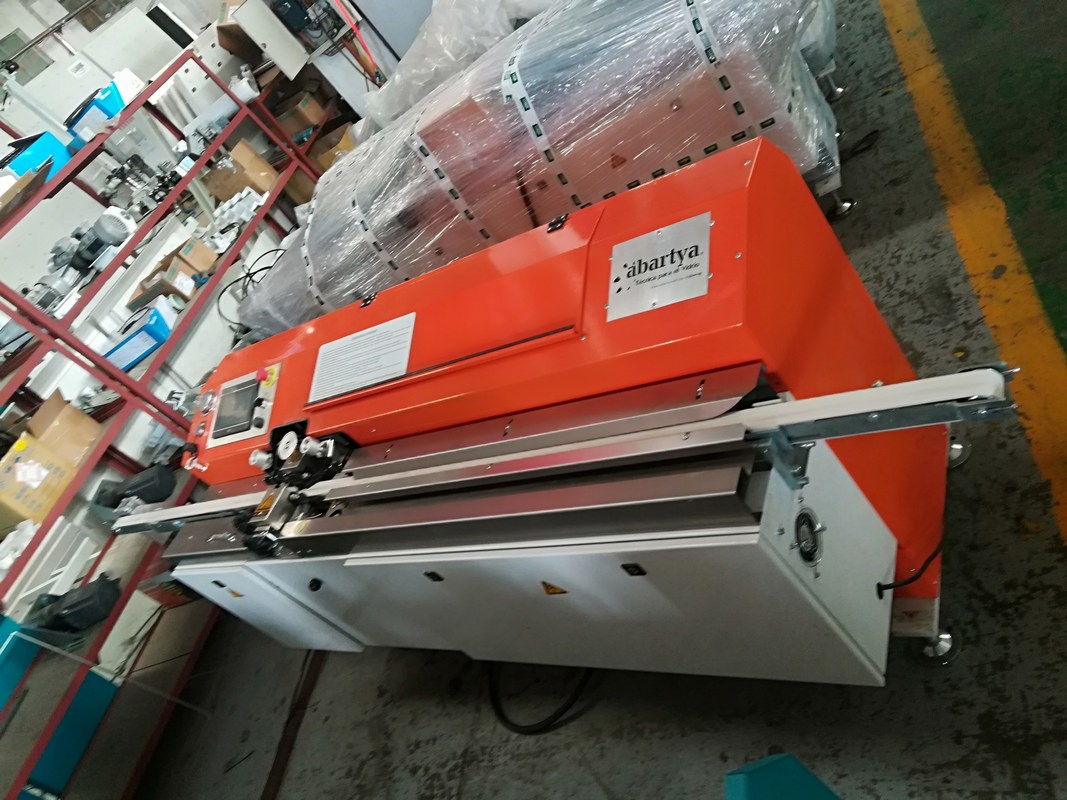

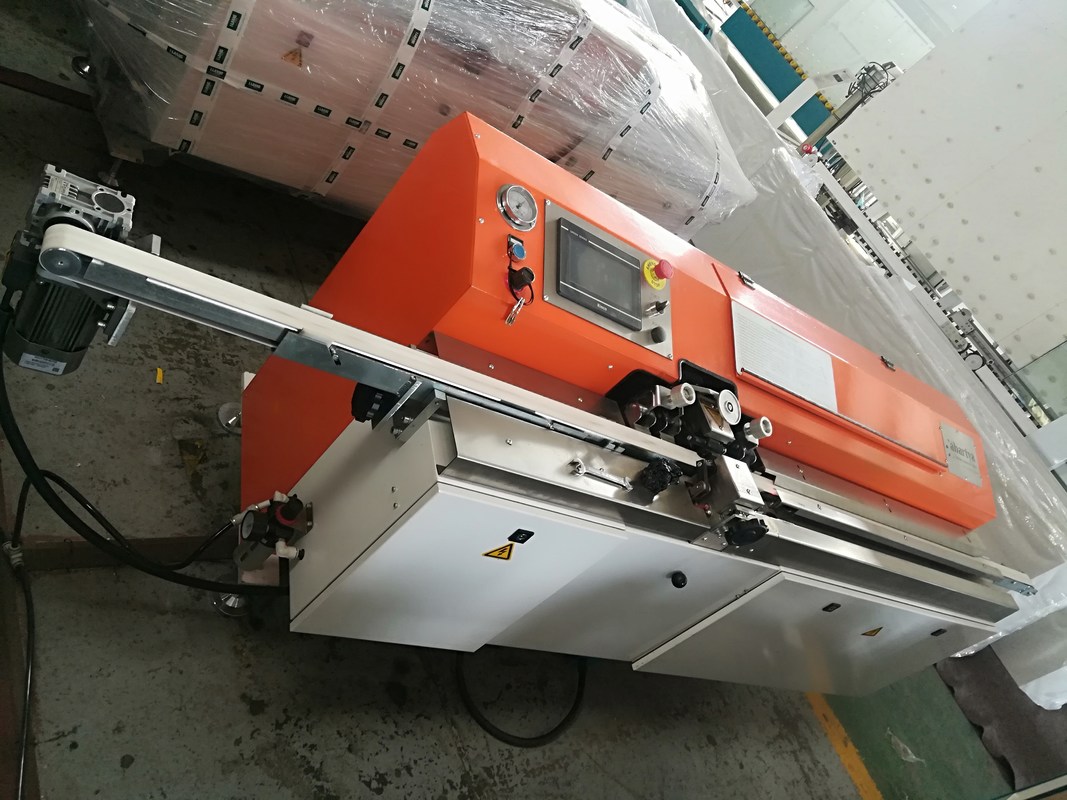

Machine details of Aluminum spacer butyl extruder machine
1.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming
2.Adopt Germany Siemens brand, stable performance.
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
3.Automatic filter function
Automatically filter debris, keep spreading evently.
4.Glue cylinder
Adopt the upright structure, easy to change butyl.
5.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
6.Alarm system
Automatically alarm system, reminding adding butyl.
7.Guiding Wheel
Using guiding wheel to help arc frames coating.
8.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Products
1.Glass washing machine
Main feature:
• Using 6 pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Using intelligent intermittent energy-saving working methods
• Hierarchical type washing system
• Water tank automatic temperature control, water replenishing system
• European silencer system
• 304 stainless steel materials
2.Automatic aluminum spacer bending machine LJZW2020
The automatic aluminum spacer bending machine is a special equipment for the hollow glass aluminum frame that replaces the hollow glass manufacturing technology. The equipment can produce one aluminum belt at a time to make various convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the sealing effect of the insulating glass better.
Main features
Tech parameters of High-speed butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
