10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing
10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing
10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing

Large Image :  10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX OR PLASTIC FILM
Delivery Time: 3days
Payment Terms: L/C, T/T, MoneyGram, Western Union, L/C, D/A, D/P
Supply Ability: 20 sets per month
Contact Now

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing

Description
Name: Butyl Extruder Machine Aluminum Spacer Width: 6A-27A
Coating Pressure: 10-18mpa Coating Temperature: 110-140 °
Total Power: 5.7kw Machine Size: 2800*700*900mm
Coating Speed: 0-47m/min Butyl Plug Weight: 7kg
Brand: LIJIANG
High Light:

18mpa Butyl Adhesive Coater

,

10mpa Butyl Adhesive Coater

,

18mpa hot melt roller coater

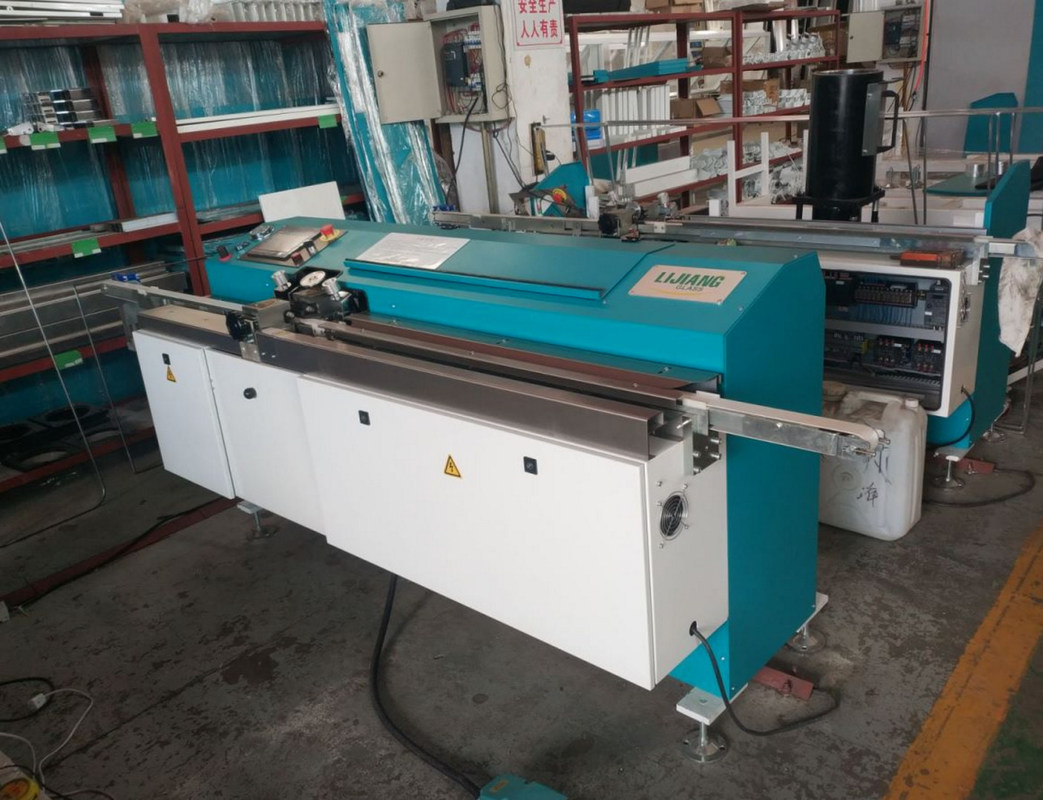

LJTB01 Butyl Extruder Machine

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.



Main feature



1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6-27A
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg



² Main components

Name Brand
Pressure release Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Quick exhaust valve/Vacuum generator Japan SMC
Pneumatic components(cylinder/valve) Taiwan ARTAC
Travel light Japan OMRON
Relay Japan OMRON
Optical fiber Japan OMRON
PLC KINCO
Frequency converter KINCO













10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 010-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 1

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 2





10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 3

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 4

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 5

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 6

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 7

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 8

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 9

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 10











10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 11



Glass International Expo

National Glass Expo: Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa, Glass buildin in America, Mexico glass expo .Big Five In Dubai, Egpyt., and so on. Domestic Glass Expo: China glass , (Beijing /shanghai), Guangzhou.Glass Expo, and so on.





10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 12

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 13

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 14



Technician Team

Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution.



10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 15











10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 16

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 17





10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 18



Service Team:



We have our own china domestic team and oversea service team .



Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers ,



two of them from india and others from south America and midle east.



24 hours online service and local engineer available , guarantee customers got timely service and solution .



10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 19



Contact way



JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD



Name: Rose



Mob/Whatsapp/wechate:+86 130 7535 5217



QQ:904878044



EMAIL: Sales@lijiang-glass.com

10-18mpa Hot Melt Butyl Adhesive Coater For Insulating Glass Hollow Glazing 20
