Product Details:
|
| Product Name: | Butyl Rubber Extruder Machine | Application: | Double Glazing Glass Processing |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| Aluminum Spacer Width: | 5.5-26.5mm | Power: | 5.7kw |
| High Light: | Rubber Butyl Extruder Machine,5m/Min Butyl Extruder Machine,5m/Min hot melt butyl machine |
||
Butyl extruder can make primary sealing of different thickness spacer bars for insulated glass units.

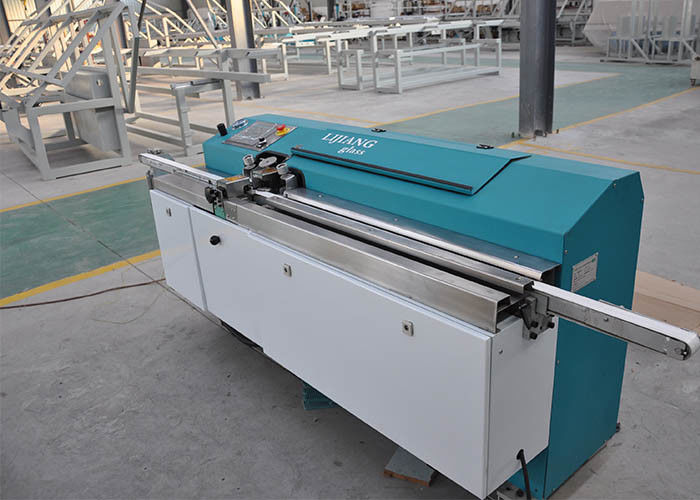

Product overview of butyl rubber extruder machine
Butyl rubber extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl,it is the second seal of Insulating glass.The operation of butyl rubber extruder machine is more easier than before,it uses large electrical control panel . The speed can be adjusted from 0m/min to 47m/min. Butyl extruder machine LJTB01 is a special equipment for the production of making double glazing glass.The conveyor of aluminum is controlled by frequency converter. As one of the important equipment of producing double glazing glass, the effect of butyl glue is directly related to the sealing of insulating glass. Butyl extruder machine is automatic one, easy to operate and convenient to use.
Main feature of butyl extrusion coating machine
1. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery
2. The main accessories are German brands. PLC program control, stable performance
3. Touch screen operation, simple and easy operating,Stable performance
4. The rubber cylinder adopts pull-up structure, which is convenient for operation
5.Unique design structure, with automatic exhaust function, to ensure continuous glue application
6. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
6. Automatically adjust the glue output according to the speed change
7. Glue application speed can reach 47m / min
8. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently
9. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
10. It is convenient and practical to use movable vertical and horizontal sealant
11.Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing
Tech data of High speed butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Machine details of Aluminum spacer butyl extruder machine
1.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming
2.Adopt Germany Siemens brand, stable performance.
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
3.Automatic filter function
Automatically filter debris, keep spreading evently.
4.Glue cylinder
Adopt the upright structure, easy to change butyl.
5.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
6.Alarm system
Automatically alarm system, reminding adding butyl.
7.Guiding Wheel
Using guiding wheel to help arc frames coating.
8.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Optional functions of butyl coating machine:
200L glue cylinder is optional
