Product Details:
|
| Product Name: | Butyl Extruder Insulating Glass Machine | Application: | Double Glazing Glass Processing |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| High Light: | 18MPa Hot Melt Butyl Machine,Silicone Sealant Hot Melt Butyl Machine,10MPa silicone sealant extruder |
||

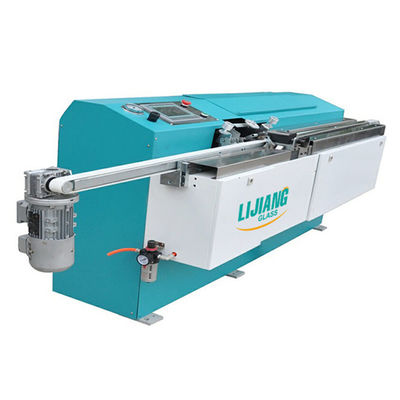

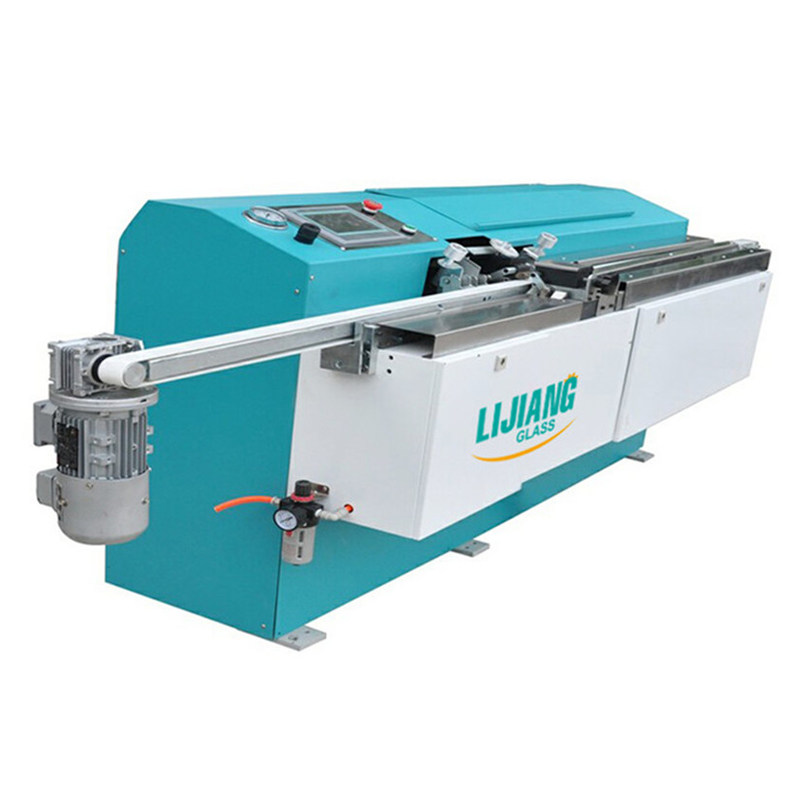

Production overview of butyl extruder insulating glass machine
The double glazing of the butyl extruder is used to spread the aluminum spacer frame evenly with hot melt butyl. The operation of the butyl extruder is easier than before and uses a large electric control panel. The aluminum conveyor is controlled by a frequency converter. The speed can be adjusted from 0m / min to 47m / min. Butyl extruder LJTB01 is a special device for manufacturing double glazing. As one of the important devices for manufacturing double glazing, the effect of butyl adhesive is directly related to the sealing of insulating glass. The device is automatic, easy to operate, and easy to use.
Tech parameters of High speed butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Main feature of butyl coating machine
1. Touch screen operation, simple and easy operation, stable performance
2. Adopting a hydraulic system imported from Germany, it supplies the adhesive evenly and completely.
3. Adhesive is applied continuously by the unique design structure with automatic exhaust function.
4. The rubber cylinder has a pull-up structure, which is convenient for operation.
5. Automatically adjust the adhesive output as the speed changes
6. It is useful to adjust the height of the cross beam to effectively and conveniently solve the problem of white exposure.
7. Adhesive application speed can reach 47m / min
8. Non-adhesive sync belt is used, no talcum powder is needed for cleaning
9. The main accessories are German brands. PLC program control, stable performance
10. Convenient and practical with movable vertical and horizontal sealants
11. Saves glue consumption compared to regular butyl rubber machine, glue can reach 7g / m
12. Automatically adjusts the width of the adhesive head and integrated control of the quick opening valve ensures consistent double-sided bonding
Machine details of Aluminum spacer butyl coating machine
Adopt Germany Siemens brand, stable performance.
Glue cylinder
Adopt the upright structure, easy to change butyl.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Alarm system
Automatically alarm system, reminding adding butyl.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Guiding Wheel
Using guiding wheel to help arc frames coating.
Optional functions of butyl coating machine:
200L glue cylinder is optional

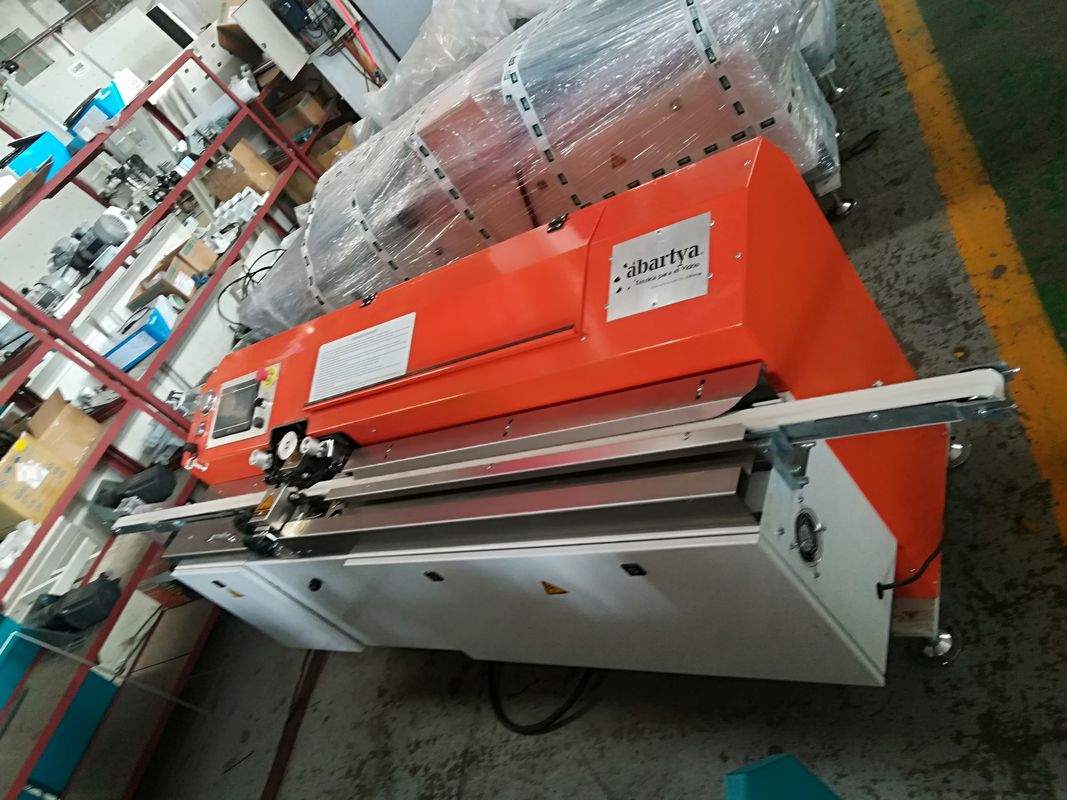

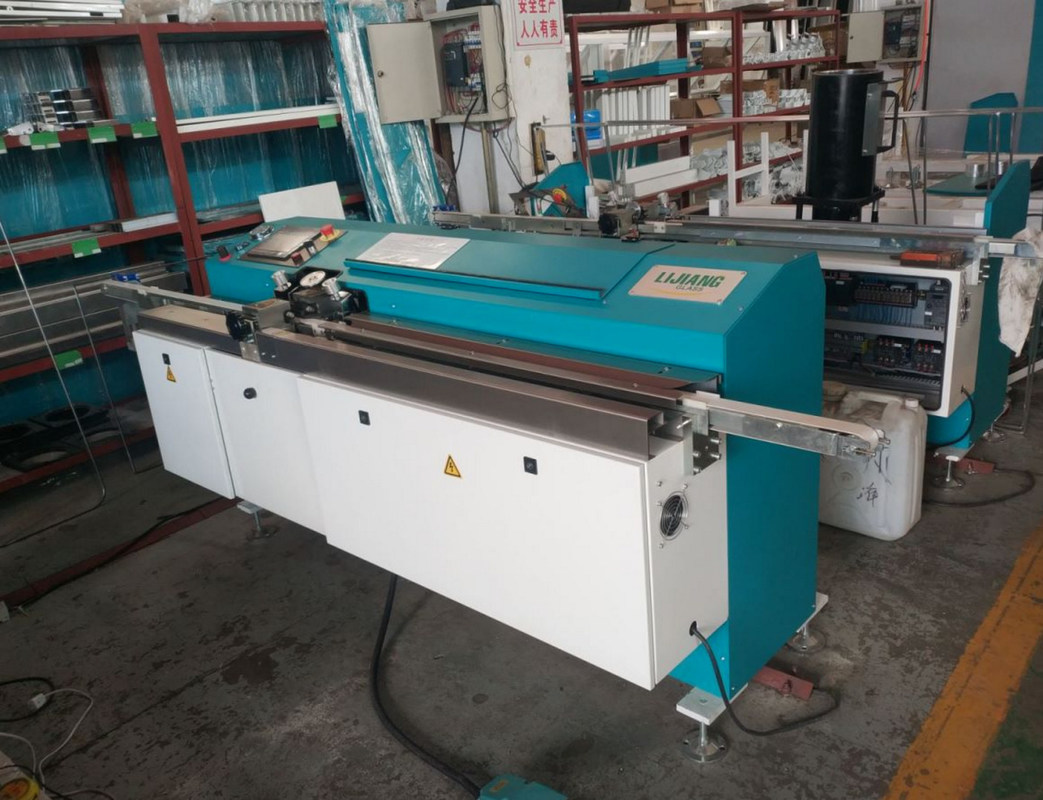

Detail picture
