Product Details:
|
| Name: | Molecular Sieve | Size: | Diameter 0.3cm |
|---|---|---|---|
| Characteristics: | High Strength,High Adsorption Capacity,Particle Uniformity | ||
| High Light: | 0.3cm Molecular Sieve 5A,0.66g/Ml Molecular Sieve 5A,molecular sieve desiccant |
||
Process flow:
Washing→Filterpressing→Crushing→Forming→Health maintenance→Drying→Activation
Technical Parameter:
| Model | 5A Molecular Sieve | |||
| Nominal pore diameter | 5 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
| 8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
| Bulk density (g/ml) | ≥0.66 | ≥0.66 | ≥0.64 | ≥0.64 |
| Crushing strength (N/PC) | ≥30.0 | ≥70.0 | ≥30.0 | ≥50.0 |
| Size ratio up to grade (%) | ≥96.0 | ≥96.0 | ≥96.0 | ≥94.0 |
| Static H2O adsorption (%) | ≥21.0 | ≥21.0 | ≥20.5 | ≥20.5 |
| Static Hexane adsorption (%) | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 |
| H2O content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |
The effective pore size of the 5A molecular sieve is 5 angstroms (0.5 nm).
It will adsorb molecules with a dynamic diameter of fewer than 5 angstroms and exclude those larger molecules.
It has high selective adsorption and fast adsorption speed.
typical application:
a) Various sizes of O2, H2, CO2, and other gas PSA equipment.
b) Separate normal paraffin and isoparaffins.
c) Purify the air, dehydrate and remove carbon dioxide.
d) Natural gas drying, dehydration, and desulfurization.
Features: high strength, high adsorption capacity, uniform particles
Storage: Room temperature; relative humidity not greater than 90%; should not be directly exposed to the air; avoid water, acid, and alkali.
regeneration:
1. Dehumidification: depends on the temperature, pressure, and water content of the gas. Usually, the dry gas at 200-350°C passes through the molecular sieve bed at a pressure of 0.3-0.5kg/cm2 for 3-4 hours, and the outlet temperature is raised to 110-180°C and cooled.
2. Removal of organic matter: replace the organic matter with water vapor, and then remove the water.
Packaging Details

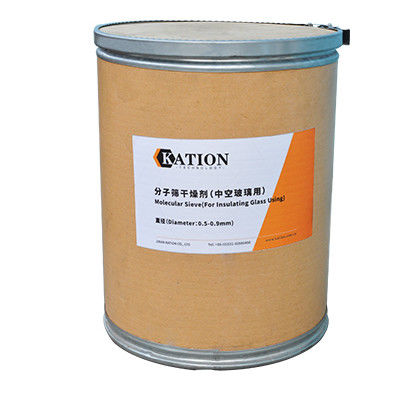

Paper bag, super sack, steel drum with a wooden pallet for zeolite 3a
Port: Qingdao,Tianjin, Shanghai, etc.
Lead Time:7-10 days after receiving your deposit or your workable LC
